Lobby Enclosures

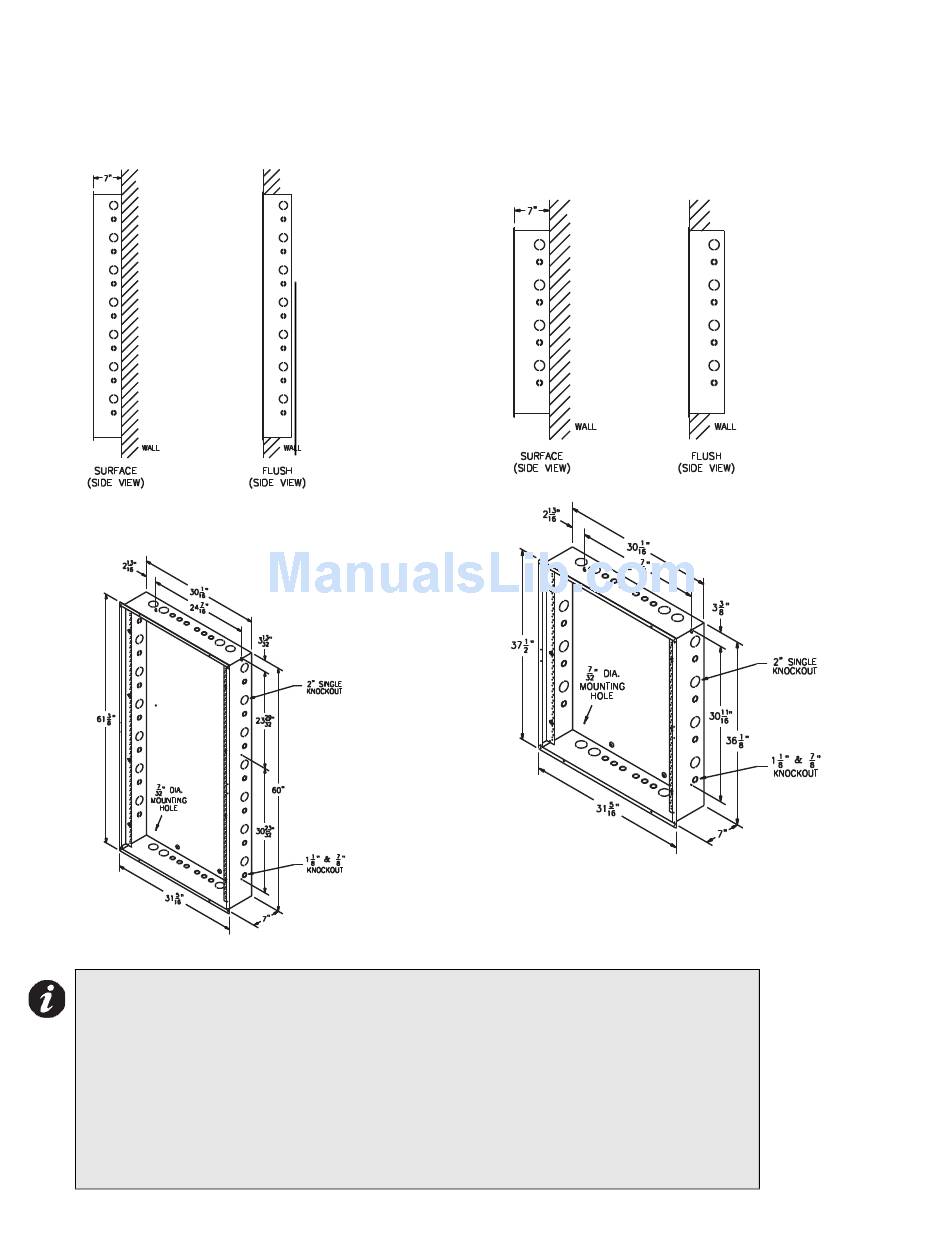

Figure 22: BB-5008 and BB-5014 Enclosures

Below find the dimensions for the BB-5008 and BB-5014 enclosures. The QMP-5101B and
QMT-5302 mount only into the BB-5008 and BB-5014 enclosures.
BB-5014 Lobby Enclosure
Notes:
• Material: 16GA (0.059") cold rolled steel.
• Finish: painted.
• Allow 4" gap between flanges of the backboxes when installing side by side.
• Door is not shown.
• For aluminum door DOX-5014A, see LT-464. For aluminum door DOX-5008A,
see LT-664.
• For steel door DOX-5014M, see LT-645. For steel door DOX-5008M, see
LT-665.
38
BB-5008 Lobby Enclosure
