Lobby Enclosures

The paging and telephone control modules fit into the Mircom BB-1000 series lobby enclosures, except the QMP-
5101B and the QMT-5302, which mount only into a BB-5008 and BB-5014. All selector panels mount into all the
BB-1000 series and the BB-5008 and BB-5014 enclosures. These semi-flush backboxes include the BB-1001
(houses only one module), the BB-1002 (houses two modules), and the BB-1003 (houses three modules).

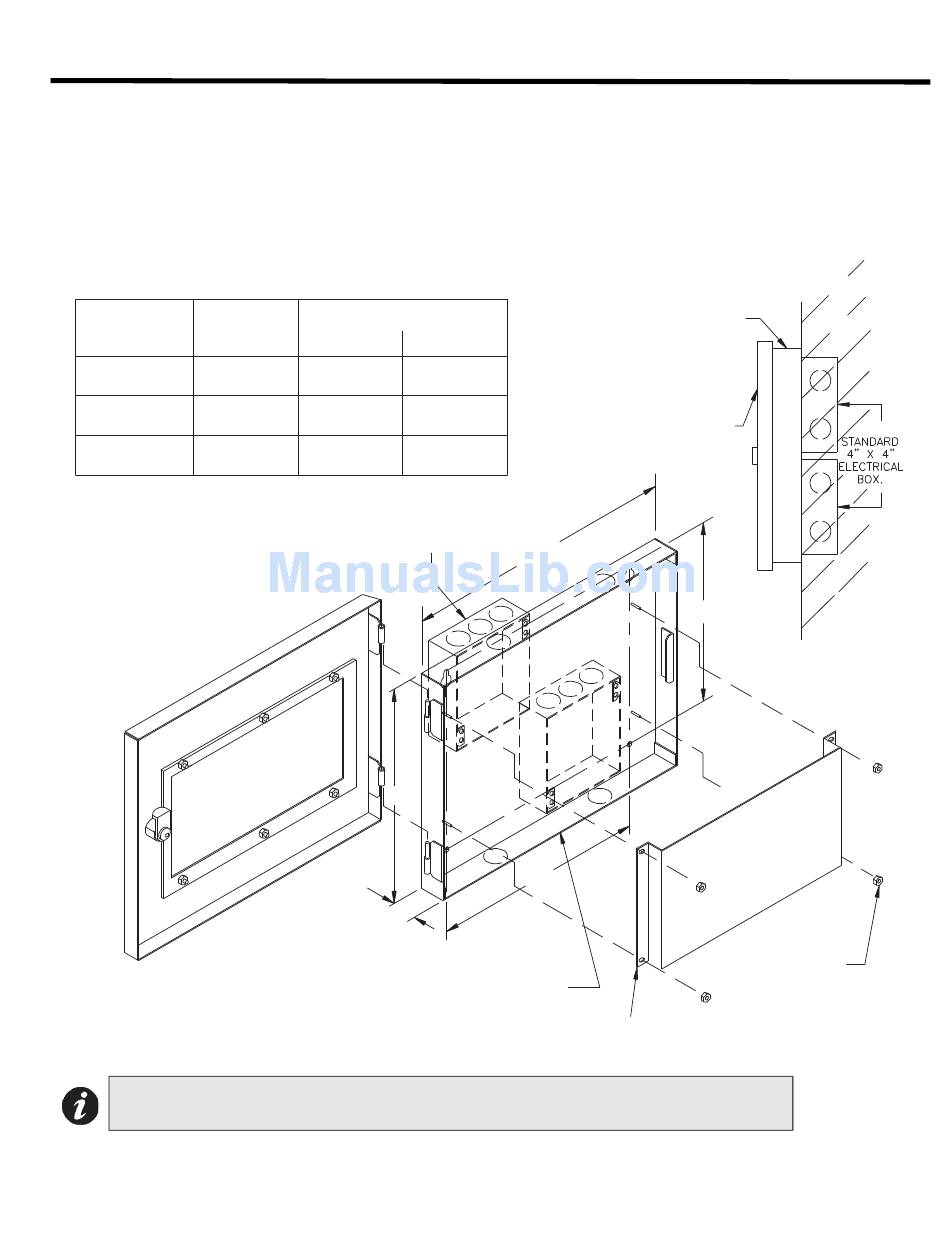

Figure 21: BB-1000 Lobby Unit Enclosures
HEIGHT
BACKBOX
H (IN.)
BB-1001 (R)
BB-1002 (R)
18.0"
BB-1003 (R)
26.5"
(R) denotes painted red
Note: It is extremely important that you connect one of each BB-1000 series backbox
earth-ground points (chassis ground) to earth ground (cold water pipe).
MOUNTING
A(IN.) B(IN.)
9.0"
9.95"
9.95"
9.95"
BACKBOX CAN BE MOUNTED
WITH STANDARD 4" X 4"
ELECTRICAL BOXES
H
1.2"
BB-1001 BACKBOX IS SHOWN
7.5"
16.5"
24.9"
12.75"
A
ANNUNCIATOR CHASSIS
QX-5000 Series Installation and Operation Manual
BACKBOX
DOOR
B
#6-32
HEXNUTS
WALL
37
