QIF-5000B Wiring

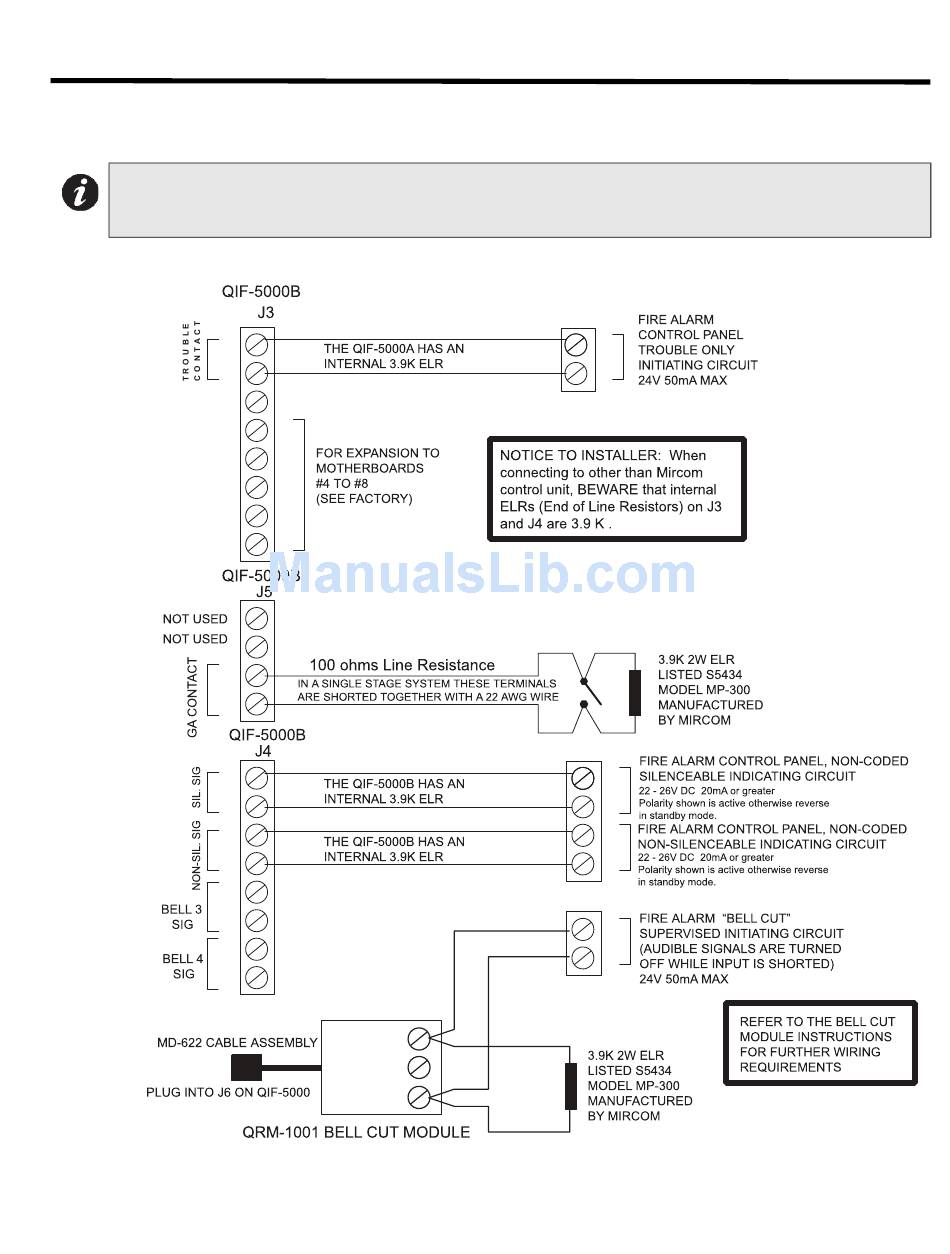

The QIF-5000B Interface Module wiring to the fire alarm control panel is shown in Figure 8 below.
Note: The Internal 3.9K Ohm ELR's on J3, J4, and J5 may not be compatible with other manufacturers'
control units. Consult Mircom when connecting control units other than those manufactured by
Mircom.
Figure 8: QIF-5000B Wiring
N O T U S E D
J3
Identified by
WHITE LABEL
-
+
-
+
J4
-
Identified by
+
NO LABEL
-
+
-
+
The QIF-5000B wiring to the QMP-5100B and QMP-5101B Paging Master is shown in Figure 28.
8
7
6
5
4
3
2
1
4
3
2
1
8
7
6
5
4
3
2
1
C O M M
N C
B
N O
