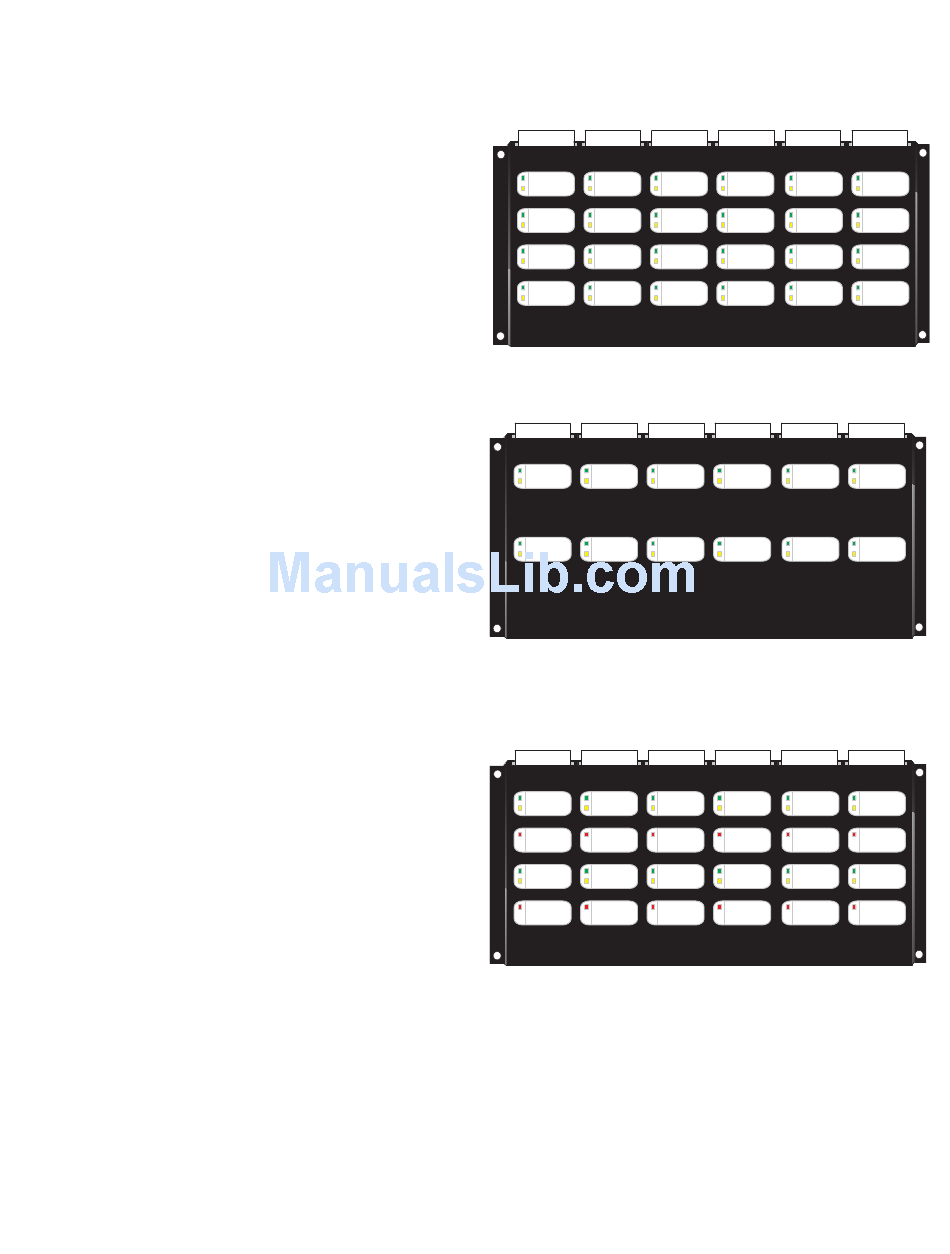

QZP-5101 Single Stage Operation

Each QZP-5101 annunciates and controls up to 24
audio zones. There is one button and two LEDs per
zone. The lower amber LED indicates Zone trouble.
The upper green LED indicates whether that zone is
selected for voice paging via the master microphone.
Press the button to turn the selection for voice paging
for that zone on and off.

QZP-5102 Two Stage Operation

The QZP-5102 is used for two-stage operation with
alert and evacuation tones. Each QZP-5102
annunciates and controls up to 12 audio zones. There
are one button and two LEDs per zone. The top green
LED indicates whether that zone is selected for voice
paging. The amber bottom LED indicates zone
trouble. Press the button labelled Page to turn the
selection for voice paging for that zone ON and OFF.
A special cable is required for connection to the fire
alarm control panel, see installation sheet packed with
the QZP-5102.

QZP-5103 Two Stage Operation

Each QZP-5103 annunciates and controls up to 12
audio zones. There are two buttons and three LEDs
per zone. The middle amber LED beside the top
button indicates zone trouble. The upper green LED
by the top button indicates whether that zone is
selected for voice paging. The bottom red LED by the
button labelled EVAC for each zone indicates whether
the evacuation tone is being sent to that zone.
Press the top button for each zone to turn the
selection for voice paging for that zone on and off.
The bottom button (EVAC) for each
selection for evacuation on (latching) for that zone.
be overridden by the paging, by selecting the page
zone and pushing the microphone PTT (Push to Talk)
button.
zone turns the
It may
QX-5000 Series Installation and Operation Manual
PAGE PAGE PAGE
#1 #5 #9
PAGE PAGE PAGE
#2 #6 #10
PAGE PAGE PAGE
#3 #7 #11
PAGE PAGE PAGE
#4 #8 #12
PAGE PAGE
PAGE
#3
#1 #5
PAGE PAGE PAGE
#2 #4 #6
PAGE PAGE
PAGE
#1 #3 #5
EVAC EVAC EVAC
#1 #3 #5
PAGE PAGE PAGE
#6
#2 #4
EVAC EVAC EVAC
#2 #4 #6
PAGE PAGE PAGE
#13 #17 #21
PAGE
PAGE PAGE
#14 #18 #22
PAGE PAGE PAGE
#15 #19 #23
PAGE PAGE PAGE
#16 #24
#20
PAGE PAGE
PAGE
#7 #11
#9
PAGE
PAGE PAGE
#10
#8 #12
PAGE PAGE
PAGE
#7 #9 #11
EVAC EVAC EVAC
#7 #9 #11
PAGE
PAGE PAGE
#8 #10 #12
EVAC EVAC EVAC
#8 #10 #12
