Installation

Module Placement

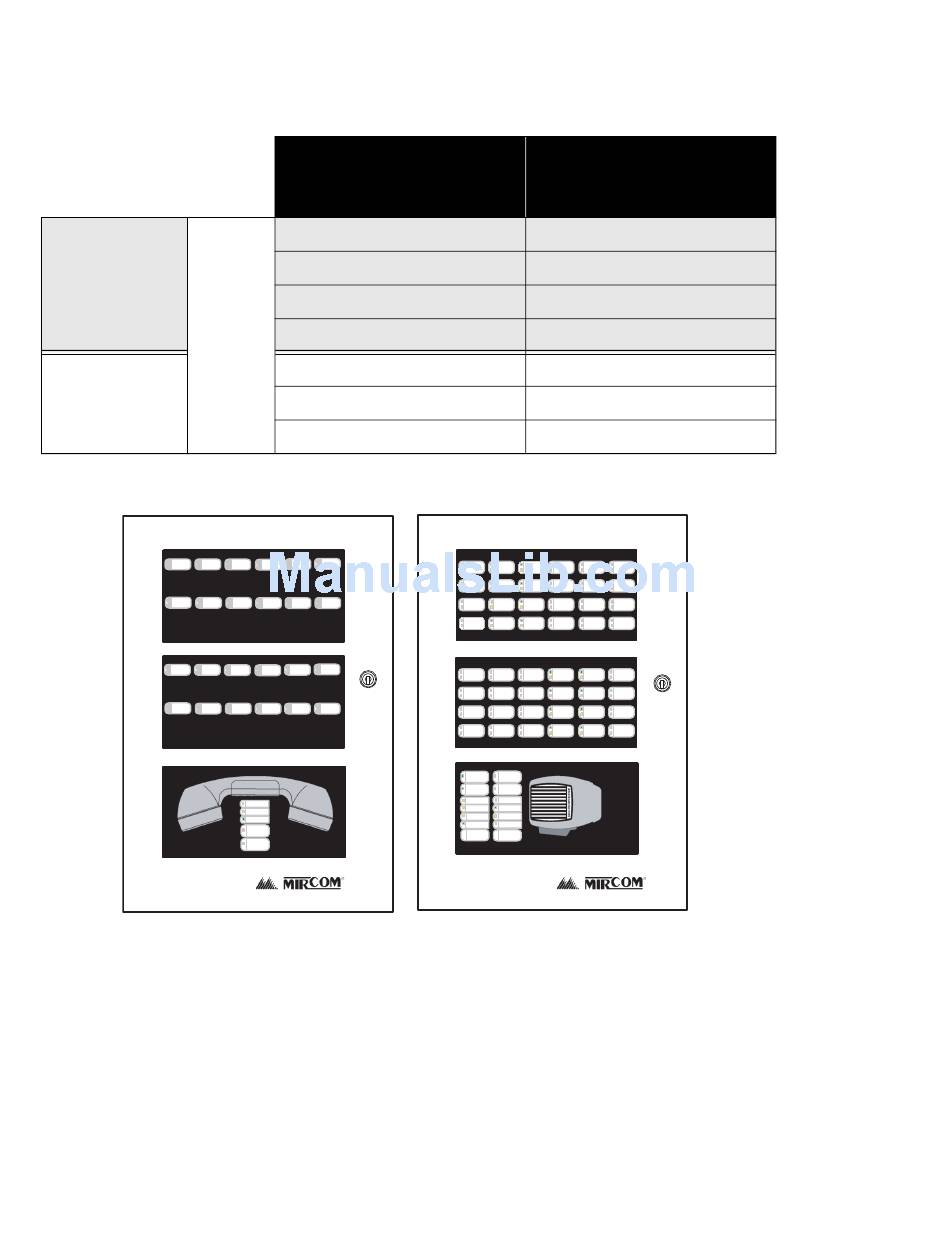

Note that the placement of modules is as shown in the table below. Figure 24 below shows the placement of the
paging & telephone modules.
In large
enclosure
(contact factory)
In BB-1000
Enclosure
Figure 24: Lobby Enclosure Module Placement
TELEPHONE #1
TELEPHONE #7
TELEPHONE #1
#7 TELEPHONE
Firefighter's Telephone
For the firefighter's telephone, the QMT-5300A may be used alone for a single zone system. For a multi-zone
system, the P1 ribbon cable on the first QZT-5302 Telephone Selector panel connects down to the P1 socket on the
QMT-5300A. Each successive QZT-5302's P1 ribbon cable plugs down into the P2 connector on the previous QZT-
5302. The QMT-5300A is also wired either directly to a fire alarm control panel if used alone, or to the emergency
paging system's QMP-5100B if used together.
Emergency Paging System
For the emergency paging system, the P1 ribbon cable on the first QZP-5101 Paging Selector panel connects down
to the P3 socket on the QMP-5100B. Each successive QZP-5101's P1 ribbon cable plugs down into the P2
connector on the previous QZP-5101.The QMP-5100B is also wired to the QIF-5000B in the audio cabinet, and to
the QMT-5300A (if used).
40
Firefighter's Telephone
(up to six zone adders
allowed)
Top QZT-5302 Zone Adder Module
QZT-5302 Zone Adder Module
QZT-5302 Zone Adder Module
QZT-5302 Zone Adder Module
QZT-5302 Zone Adder Module
QZT-5302 Zone Adder Module
Bottom QMT-5300A Master Module
#2 TELEPHONE #3 TELEPHONE TELEPHONE #4 TELEPHONE #5 TELEPHONE #6
TELEPHONE #8 TELEPHONE #9 TELEPHONE #10 TELEPHONE #11 #12 TELEPHONE
TELEPHONE #2 #6 TELEPHONE
#3 TELEPHONE TELEPHONE #4 #5 TELEPHONE
#8 TELEPHONE #9 TELEPHONE TELEPHONE #10 #11 TELEPHONE TELEPHONE #12
COMMON TEL.
TROUBLE
MASTER TEL. TROUBLE
INCOMING CALL
CONNECT/ CLEAR ALL
TEST LAMP
REMOTE ANNUNCIATOR
Emergency Paging
(up to five zone adders
allowed)
QZP-5101 Zone Adder Module
QZP-5101 Zone Adder Module
QZP-5101 Zone Adder Module
QZP-5101 Zone Adder Module
QZP-5101 Zone Adder Module
QZP-5101 Zone Adder Module
QMP-5100B Master Module
PAGE PAGE PAGE PAGE PAGE PAGE
#25 #29 #33 #37 #41
#45
PAGE PAGE PAGE
PAGE PAGE PAGE
#26 #30 #34 #38 #42 #46
PAGE PAGE PAGE PAGE PAGE PAGE
#27 #31 #35 #39 #45 #47
PAGE PAGE PAGE PAGE PAGE PAGE
#28 #32 #36 #40 #46 #48
PAGE PAGE PAGE PAGE PAGE PAGE
#1 #5 #9 #13 #17 #21
PAGE PAGE PAGE PAGE PAGE PAGE
#2 #6 #10 #14 #18 #22
PAGE PAGE
PAGE PAGE PAGE PAGE
#3 #7 #11 #15 #19 #23
PAGE PAGE PAGE PAGE PAGE PAGE
#4 #8 #12 #16 #20 #24
REMOTE ANNUNCIATOR
