Qmp-5101B Master Paging Module - Mircom QX-5000 Series Installation And Operation Manual

Paging Modules

QMP-5101B Master Paging Module

The QMP-5101B Master Paging Module connects via a ribbon cable to the first QZP-5101 Zone Module. It also has
wiring terminals for connection to the QIF-5000B Interface Module in the audio cabinet and to the QMT-5300A or
QMT-5302 Telephone Master.
The two DIP Switches SW1 & SW2 are used for configuration. Do not adjust the field configurable jumpers or
potentiometer; these should be left with their factory default settings.

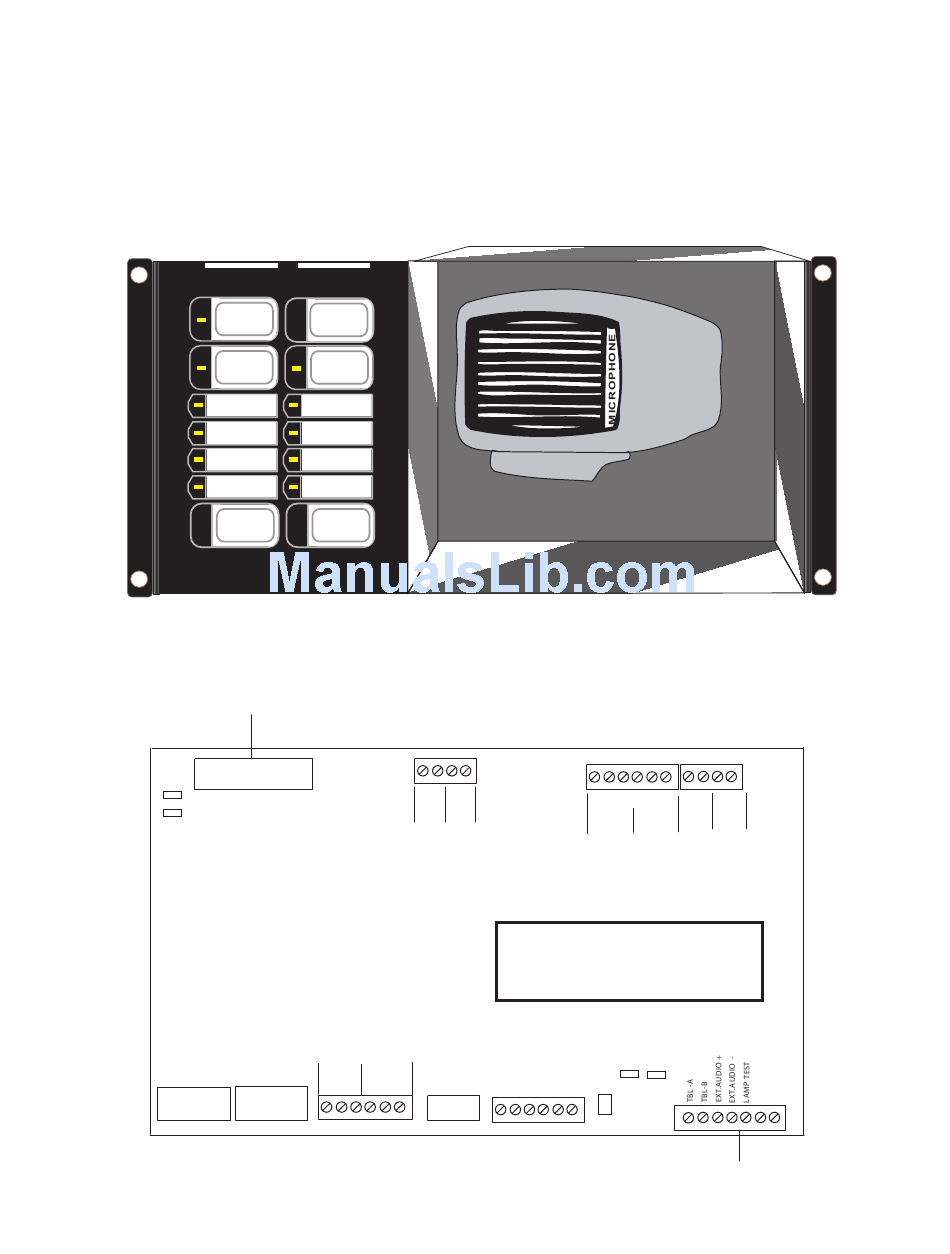

Figure 26: QMP-5101B Master Paging Module
Figure 27: QMP-5100B and QMP-5101B Master Paging Module Connections and
Location of DIP switches and Terminal Blocks
CONNECTS TO QZP-5101/5102/5103 P1
1
JP4
JP3
1
DIP SWITCHES
1 1 1
SW1
42
WAR DEN
DIGITIZED
PAG E
MESSAGES
ALL-CALL
ALL-CALL
MINUS
PAG E COM MON
INHIBIT TROUBLE
REMOTE
A.C. ON
FAI L UR E
MIC AMPLIFIER
TROUBLE TROUBLE
MIC
CIRCUIT
LEVE L TROUBLE
LAM P
RESET
TEST
P3
RS-485 INTERFACE
INPUT
OUTPUT
+ I S I -
+ I S I -
8
8 1
SW2
+ - + -
+ S - + S -
PTT
PTT
IN
IN
JUMPERS JP1, JP2, JP3 AND JP4 ARE SET BY DEFAULT
ON PINS 1 AND 2.
VR2 POTENTIOMETER IS USED FOR OVERALL
VOLUME ADJUSTMENT.
THESE TERMINALS
ARE CONNECTED TO
THE MICROPHONE
(IN HOUSE)
P2
CONNECTS TO QMT-5300A/5302 MASTER TELEPHONE
+ - + -
24VDC 24VDC
MIC
MIC
INPUT OUTPUT
OUT
IN
JP1 JP2
1
1
24V DC
+ -
VR2
