QMP-5100B and QMP-5101B Paging Wiring

QMP-5100B and QMP-5101B Paging Wiring
The wiring connection between the QMP-5100B or QMP-5101B Master Paging Module in lobby panel and the QIF-
5000B Interface Module in the audio cabinet is shown below.

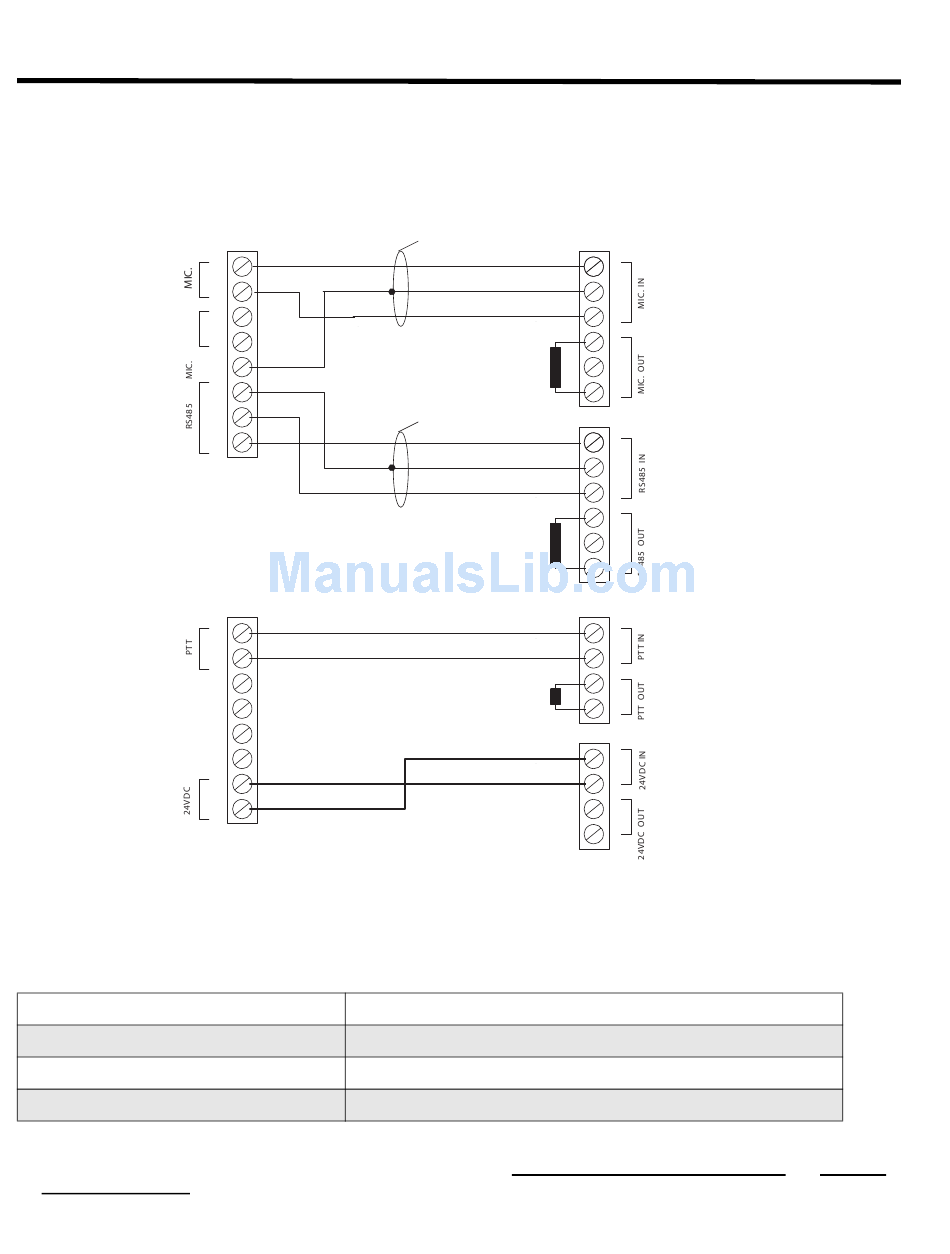

Figure 28: QMP-5100B or QMP-5101B to QIF-5000B Wiring
A OUT
NOT USED
NOT USED
NOT USED
NOT USED
The interface wiring between the QIF-5000B and the QMP-5100B or QMP-5101B are as follows:
MIC+, MIC-, SHLD:
RS485+, RS485-, SHLD:
PTT+, PTT-:
24 VDC Power:
The maximum wiring run from the QIF-5000B to the QMP-5100B or QMP-5101B is 1000 feet or 305 metres. All RS-485 must be
point-to-point from the QIF-5000B to the QMP-5100B or QMP-5101B. No star-wiring or T-tapping is allowed. The 120 ohm
End-of Line Resistor on the RS-485 Output terminals is removed on all except the last wired Module.
