The QIF-1000 Interface board enables All Call paging for multiple building applications using the QX-5000. Set
ALL
DIP switches of SW1 to the ON position for Master operation or set ALL DIP switches of SW1 OFF for slave
operation of this interface board.
Figure 39: QIF-1000 Interface Board.
POWER RATING:
INPUT VOLTAGE = +24V
CURRENT = 65mA (ACTIVE AND STANDBY)
V+
V+
J1
J2
SEL0
AOUTS
AOUT+
AOUT-
AIN+
AIN-
AINS
AINS
AIN+
AIN-

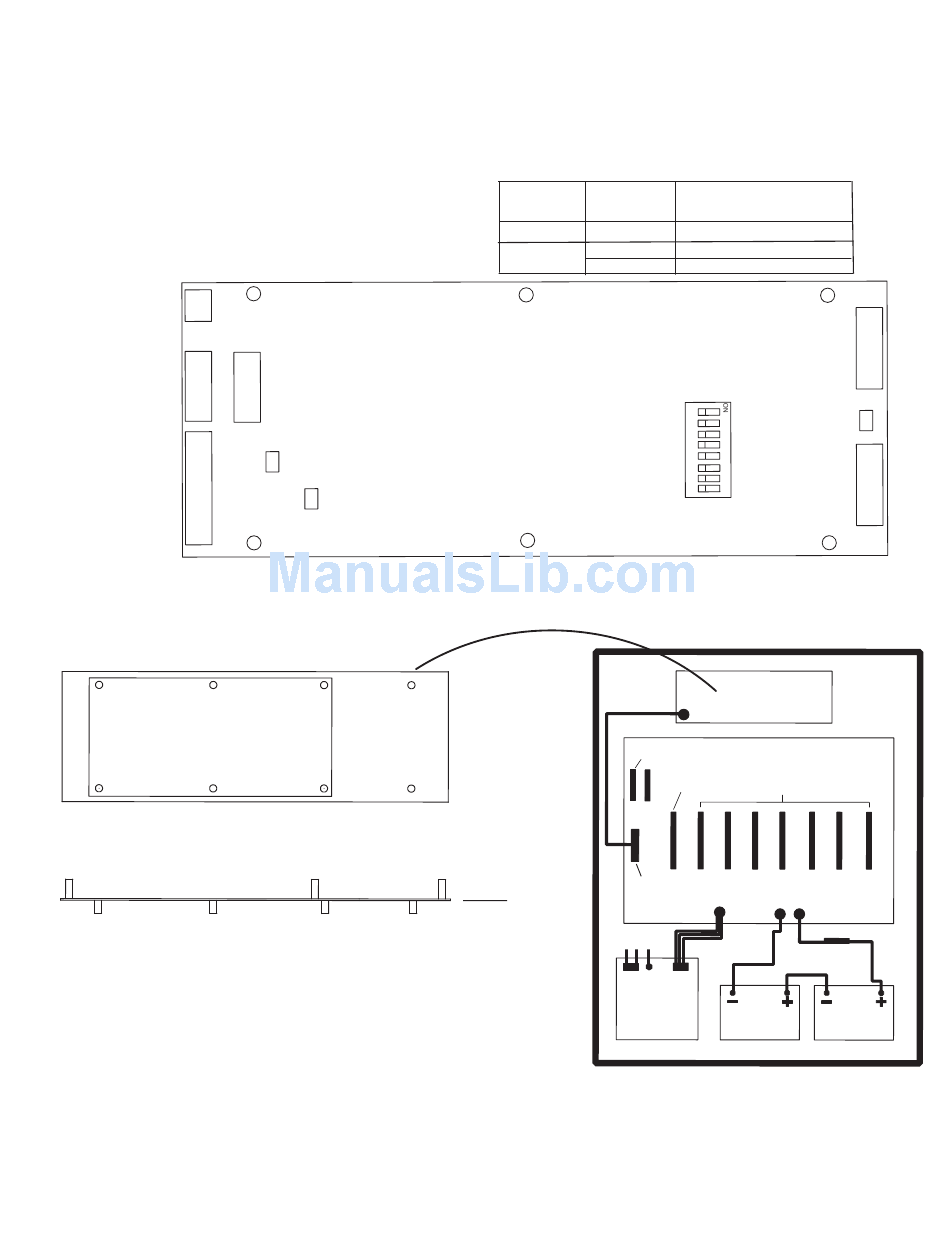

Figure 39: Mounting the QIF-1000 Interface Module

FRONT VIEW of CH-559 PLATE
QIF-1000
TOP VIEW
The QIF-1000 Interface module comes already mounted onto a CH-559 Plate. The CH-559 mounts onto the QBC-
5000B battery charger cover located above the amplifiers in the audio cabinet of the QX-5000 Audio system. The
QBC-5000B must be removed and the QIF-1000, and its plate is mounted onto the QBC-5000B with four #4 screws
behind the QBC-5000B cover. The whole assembly is then mounted back into the audio cabinet over the battery
charger.
JW2
JW3
QX-5000 Series Installation and Operation Manual
