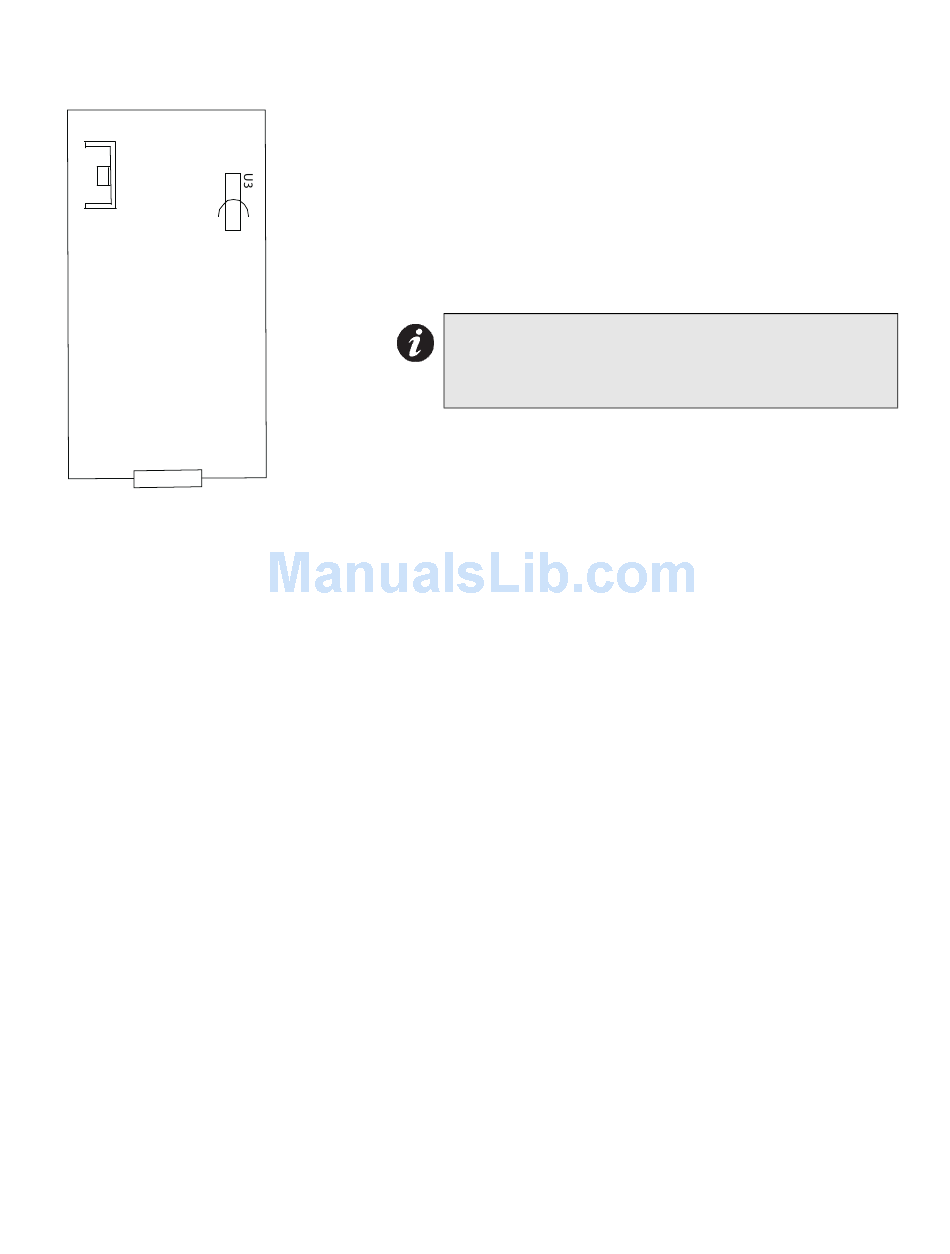

Figure 14: Using a Speaker Isolator

QAA-5415-70/25 AMPLIFIER

JUMPER

CUT JUMPER OVER U3 WHEN

USING A SPEAKER ISOLATOR

Note: When using a speaker isolator (SIS-204 or SISA-

QX-5000 Series Installation and Operation Manual

204 for use in Canada only), jumper JP1 (top left-

hand corner, component side) must be cut on the

QAA-5230-70/25 and on the QAA-5160-70/25.
