Connect the first QZT-5302 Telephone Selector panel to the master telephone (either QMT-5300A or QMT-5302) by
connecting its P1 cable into P1 on the QMT-5300A/QMT-5302 Master Telephone. Plug in subsequent QZT-5302s'
(up to six total) P1 cables into P2 of the previous QZT-5302. Remove the jumper plug from JW1 on each QZT-5302
except for the last one.

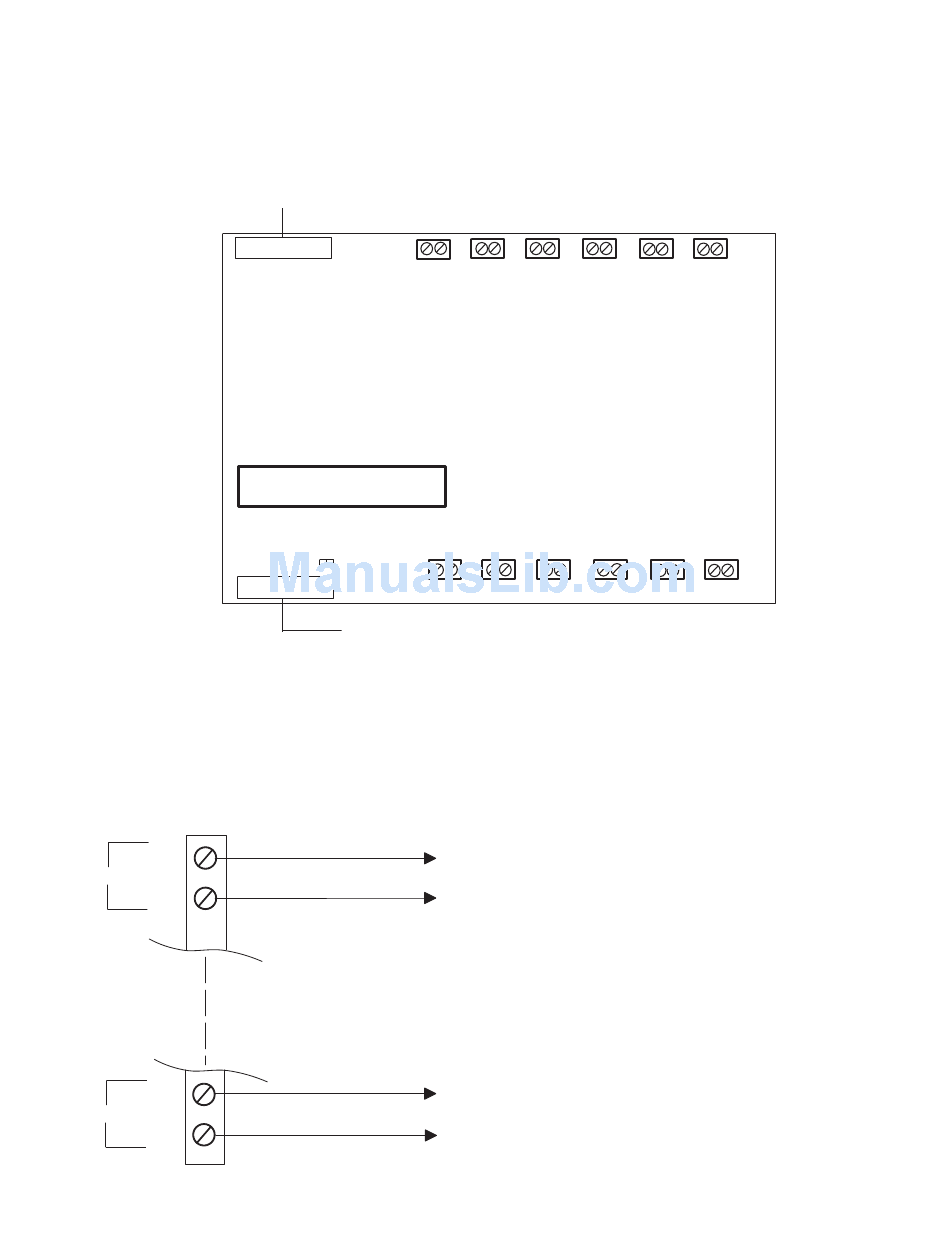

Figure 35: QZT-5302 Telephone Selector Board
CONNECTS TO NEXT
QMT-5302 (IF USED)
CONTINUITY JUMPER JW1
REMAINS ON THE LAST QZT-5302 BOARD USED. IT
IS REMOVED FROM ALL OTHER QZT-5302 BOARDS.
Connect the telephone zones to telephone circuits marked Out, numbered from 1 to 12. For Class B wiring, move
the 10K ohm ELR resistors that are shipped with the panel to the last
Note that on each QZT-5302, the associated buttons for telephone zones 1 to 12 are numbered left to right, where
zones 1 to 6 are the top row, and 7 to 12 are the bottom row.
Figure 36: QZT-5302 Telephone Zone Adder Field Wiring
QZT-5302
+
OUT 1
-
+
OUT 12
-
P2 + -
OUT 1
OUT 7
+ -
P1
JW1
CONNECTS TO P1 ON THE QMT-5300A OR
QMT-5302 MASTER TELEPHONE BOARD
TELEPHONE ZONE, WIRE TO FT-300 OR OTHER COMPATIBLE
REMOTE TELEPHONES. CONNECT 10K ELR RESISTOR AFTER
THE LAST REMOTE TELEPHONE FOR CLASS B .
TELEPHONE ZONE, WIRE TO FT-300 OR OTHER COMPATIBLE
REMOTE TELEPHONES. CONNECT 10K ELR RESISTOR AFTER
THE LAST REMOTE TELEPHONE FOR CLASS B .
QX-5000 Series Installation and Operation Manual
+ - + -
+ - + -
OUT 3 OUT 4
OUT 2 OUT 5
OUT 8 OUT 9
OUT 10
OUT 11
+ - + -
+ -
remote telephone on each zone
+ -
OUT 6
OUT 12
+ -
+ -
.
