QIF-5000B Controls and Settings

QIF-5000B Controls and Settings
Jumpers
JP1, JP2: Not used, leave open.
JP3: Leave jumper on terminals 1-2 as
per factory setting if connecting to a
Mircom fire alarm control panel. If
connecting to other than a Mircom fire
alarm control panel, move JP3 jumper to
terminals 2 & 3 position to eliminate the
internal 3.9K Ohm ELR.
JP5: Configuration jumper; normally
jumpered between 2-3. Move jumper to
pins 1 and 2 for configuration
downloading.
J1, J2: Terminals for QMP-5100B or
QMP-5101B wiring.
J3, J4, J5: Terminals for fire alarm wiring.
J6: Connection to drive external QRM-
1001 Bell Cut Relay.
J8: Connects to QDV-1000 Digitized
Voice Module if used.
J9: Connects to RS-485IMA for
configuration downloading.
J11: Used to connect to a QIF-1000 or
QIF-2000 (see QIF-1000/2000
documents for further instructions).
Place all amplifier modules from left to right in slot positions two to eight. Components on the modules should be
facing left when inserting into motherboard. Set up interface module by setting DIP switches and setting jumpers on
the QIF-5000B (see following section) and place in slot position 1 on the first audio cabinet. Field wiring to the
paging module and the fire alarm control panel is done with this QIF-5000B module. Make sure connections for the
power supply and battery charger are as shown in Figure 5. Connect cable MD-525 from the QMB-5000B
Motherboard (connection marked OUT in the top left corner) to next audio cabinet QMB-5000B Motherboard
(connection marked IN) if another audio cabinet is used. Daisy chain in this manner all other audio motherboards
used up to a total of seven; remember only one QIF-5000B is required.
14

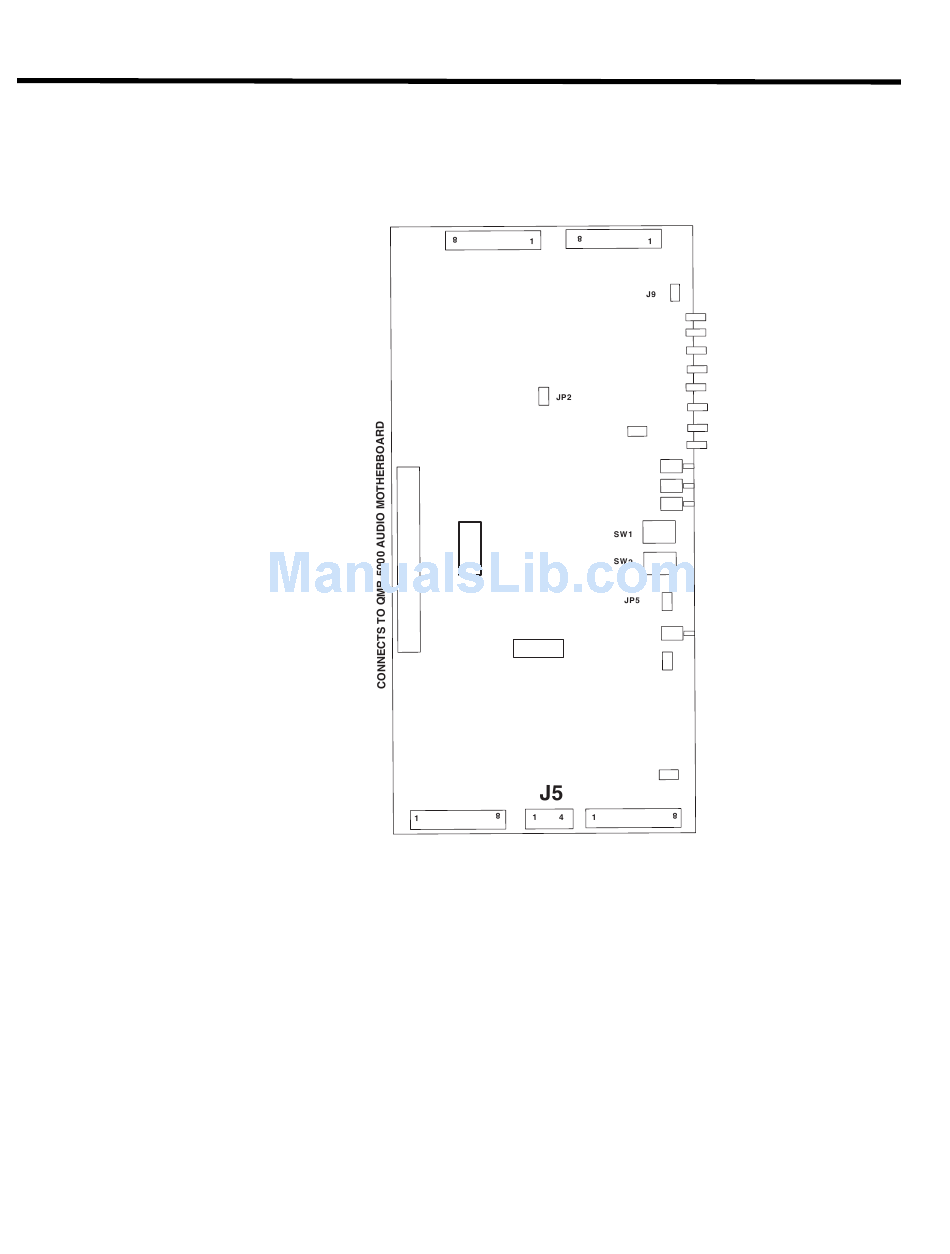

Figure 7: QIF-5000B Controls and Settings
CONNECTIONS TO QMP-5100AOR QMP-5101 MASTER PAGING MODULE
J2
Identified by
BLUE LABEL
J8
J11
J4
Identified by
NO LABEL
CONNECTIONS TO FIRE ALARM CONTROL PANEL
J1
Identified by
FOR CONFIGURATION
DOWNLOADING
RED LABEL
A.C. ON
BATTERY TROUBLE
LOBBY/MIC TROUBLE
COMMUNICATION FAIL
GROUND FAULT
SIG. GEN. TROUBLE
J6
FIRE ALARM TROUBLE
ACCESSORY DEVICE TROUBLE
CONFIG-SET
ADVANCE
LAMP TEST
CONFIG SWITCH #1 (1s)
CONFIG SWITCH #2 (10s)
3
CONFIG JUMPER
2
1
QX-5000 SYSTEM RESET
JP1
NOT USED
J3
3 2 1
TROUBLE CONNECTION
Identified by
JP3
WHITE LABEL
