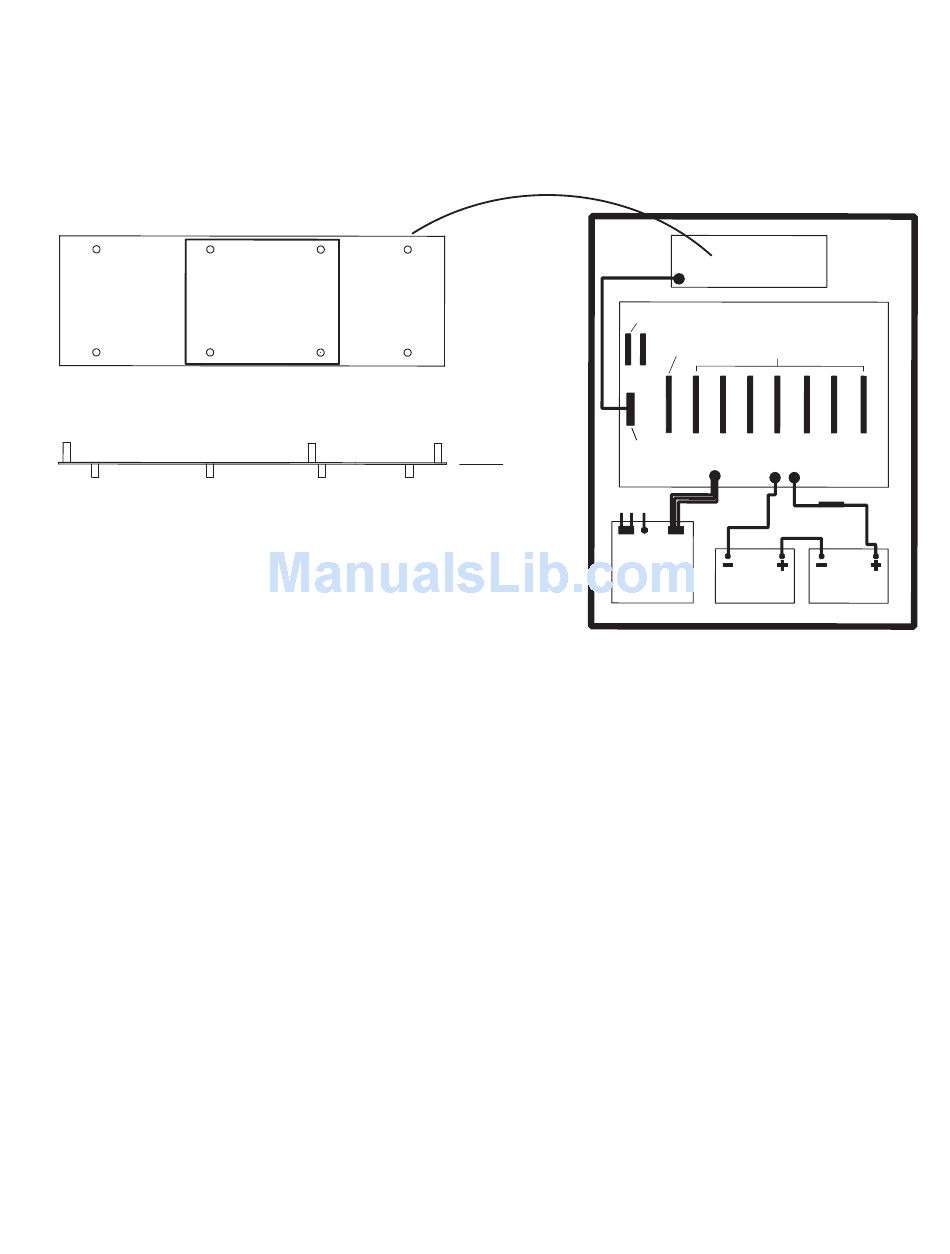

Figure 41: Mounting QIF-2000 Interface Module

The QIF-2000 Interface module comes already mounted onto a CH-559 Plate. The CH-559 mounts onto the QBC-
5000B battery charger cover located above the amplifiers in the audio cabinet of the QX-5000 Audio system. The
QBC-5000B must be removed and the QIF-2000,and its plate is mounted onto the QBC-5000B with four #4 screws
behind the QBC-5000B cover. The whole assembly is then mounted back into the audio cabinet over the battery
charger.
FRONT VIEW of CH-559 PLATE
QIF-2000
TOP VIEW
QX-5000 Series Installation and Operation Manual
CONNECTORS FOR MULTIPLE
QMB-5000B MOTHERBOARDS
IN OUT
BACK OF
CONNECTOR FOR QBC-5000B
PLATE
FRONT OF
PLATE
120 VAC INPUT
LIVE / NEUTRAL / GROUND
SCREW
TERMS
POWER SUPPLY
QBC-5000B
BATTERY
CHARGER
SLOT #1
SLOTS #2 - #8
CONNECTOR FOR
CONNECTORS FOR
QIF-5000B INTERFACE
QAA- STYLE AMPLIFIERS
MODULE
BATTERY CHARGER
XFORMER
- BATTERY +
Orange-Yellow-Orange
INLINE FUSE
(MUST BE IN CORRECT ORDER)
Black
LUG SCREW
TERMS
QPS-5000
12 VDC BATTERY
12 VDC BATTERY
Red
