IrDA Connector

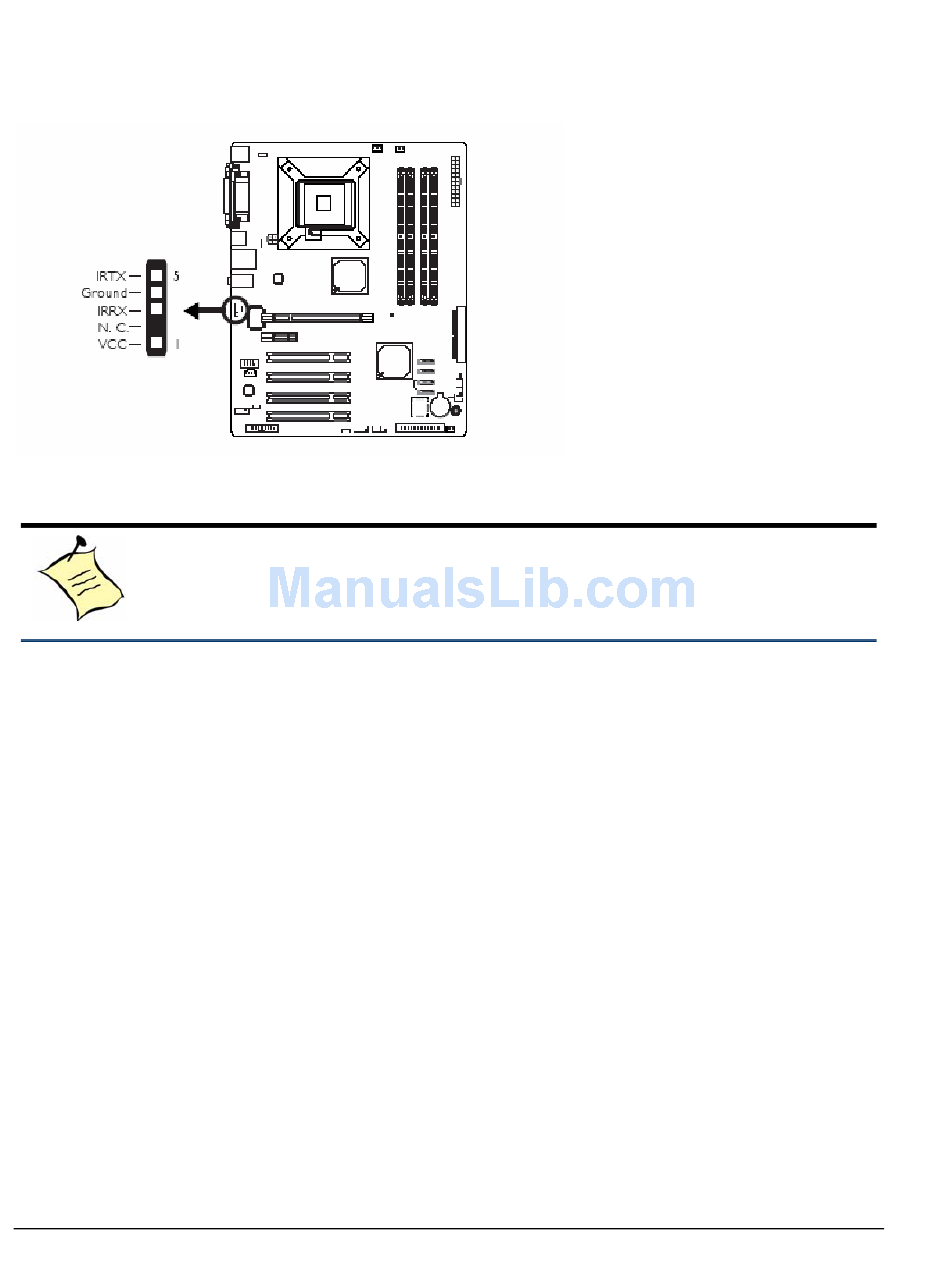

Connect the cable connector from your IrDA module to the IrDA connector (J1).
Note: The sequence of the pin functions on some IR cables may be reversed
from the pin functions defined on the system board. Make sure to connect the
cable connector to the IrDA connector according to their pin functions
BIOS Setting
Configure IrDA in the Integrated Peripherals submenu ("Super IO Device" field) of the
BIOS.
Driver Installation
You may need to install the proper drivers in your operating system to use the IrDA
function. Refer to your operating system's manual or documentation for more
information.
