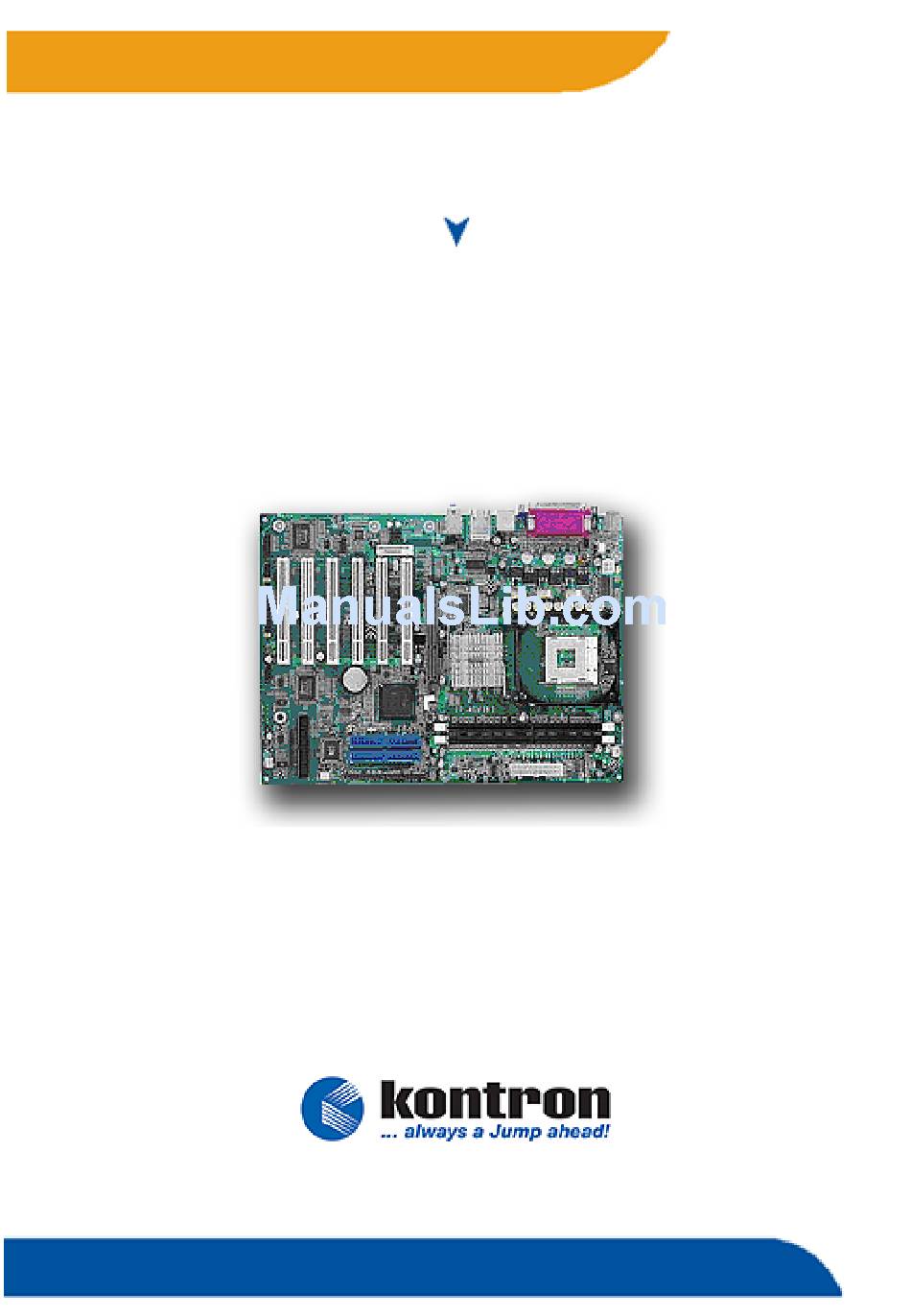

  • Page 1 MBATX-845GV-VEAH User’s Guide PN: MBATX-845GV-VEAH May 2005...
  • Page 2 This user’s guide may contain or reference information and products protected by copyrights or patents and does not convey any license under the patent rights of Kontron, nor the rights of others.

  • Page 3: Table Of Contents

    Unpacking MBATX-845GV-VEAH Series Description Features 1.3.1 Graphic & Ethernet 1.3.2 Ultra ATA/66/100 1.3.3 Hardware Monitoring 1.3.4 I/O Shield Connector 1.3.5 Power-On/Off 1.3.6 MBATX-845GV-VEAH Series Overview 1.3.7 System Block Diagram Specifications ECTION NSTALLATIONS System Installation 2.1.1 CPU Installation 2.1.2 Heat Sink Installation 2.1.3 Memory Module Installation...
  • Page 4 ONTENTS BIOS S ECTION WARD ETUP BIOS Instructions Main Menu Standard CMOS Features IDE Adapters Advanced BIOS Features Advanced Chipset Features Integrated Peripherals Power Management Setup PnP/PCI Configurations 3.10 PC Health Status 3.11 Frequency/Voltage Control 3.12 Load Fail-Safe Default 3.13 Load Optimized Defaults 3.14 Supervisor/User Password Setting 3.15 Exit Selecting...

  • Page 5: Section 1 Introduction

    ECTION NTRODUCTION Unpacking MBATX-845GV-VEAH Series 1. Remove the MBATX-845GV-VEAH from the carton and check if the unit is properly sealed in the plastic bag. 2. The carton should contain: Industrial Board Floppy ribbon cable ATA-66/100 HDD ribbon cable Driver Utility...
  • Page 6 Introduction COM3 ribbon cable (1 Set) I/O Shield (for RS-232/422/485) 3. Optional Cable USB2.0 cable (optional) COM4 ribbon cable (optional) (for RS-232/422/485)

  • Page 7: Description

    AGP (845GV support ADD card only). The memory size of ® MBATX-845GV-VEAH can be up to 2GB DDR including the onboard Intel 82562ET Ethernet controller (support 10/100 Base-TX Ethernet), Audio and with 4 COM ports. You many also add one slim floppy connector for special applications.

  • Page 8: Ultra Ata/66/100

    Introduction IO Connectivity - ICH4: - 6 Hi-Speed USB2.0 ports - 10/100 Base-TX Ethernet 1.3.2 Ultra ATA/66/100 The ICH4 provides two channel Ultra ATA/66/100 Bus Master IDE controller, that support Ultra ATA/66/100 protocols, perfect for such demanding applications as real-time video, multimedia, and high performance operating system.

  • Page 9: Power-On/Off

    On/Off the button, and the other is the "Soft Off" function (coming from the onboard circuit controller) that can be controlled by the operating ® ® system such as Windows 98/SE/ME/2000 or Windows 1.3.6 MBATX-845GV-VEAH Series Overview Function / Model MBATX-845GV-VEAH ® Chipset Intel 845GV...

  • Page 10: System Block Diagram

    Introduction 1.3.7 System Block Diagram P4 Socket 478-pins Clock ADDR CTRL DATA AGP4X GMCH (845GV) DDR266/333 X2 760 FC-BGA Device IDE Primary Intel 82562 ATA100 10/100 Base-TX IDE Secondary AC97 ICH4 Audio 421 BGA Codec USB Port 1/2 PCI BUS USB Port 3/4 USB Port 5/6 Super I/O...

  • Page 11: Specifications

    Introduction Specifications Processor: ® ® ™ - Intel Pentium 4/Celeron processor with socket 478-pins package, Processor operating at 1.3GHz and up to 3.06GHz ® ® ™ - Intel Pentium 4 Mobile processor with socket 478-pins package, Processor operating at 1.2GHz and up to 2.4GHz - System bus frequency at 400/533 MHz FSB Chipset: ®...
  • Page 12 Introduction Onboard PCI / IDE: ® - Intel 82801DB (ICH4) controller - PCI rev2.2 Compliant - ACPI Compliant Power Management - PCI bus IDE port with PIO /Ultra DMA-100 x 2 (up to 4 devices) Rear I/O Connectors: - PS/2 mouse and PS/2 style keyboard - D-Sub 25-pins printer port connector D-Sub 9-pins COM1 serial port connector for RS-232 D-Sub 15-pins VGA connector...

  • Page 13: Section 2 Installations

    ECTION NSTALLATIONS System Installation 2.1.1 CPU Installation Carefully follow the steps below in order to install the CPU: 1. Check and confirm that the jumpers are correctly set for the CPU you are going to install (figure 3). 2. Lift the releasing lever of the Socket 478. 3.

  • Page 14: Heat Sink Installation

    Installations Removing a CPU: 1. Before removing the CPU, turn off the MBATX-845GV-VEAH Series power; then wait for about 20 minutes until the heat radiation plate of the cooling fan and the CPU cools down. 2. To remove the CPU, lift the releasing lever of the Socket 478.

  • Page 15: Memory Module Installation

    Installations 2.1.3 Memory Module Installation Figure 5 display the notch marks and what they should look like on your DIMM memory module. DIMMs have184-pins and two notches, that will match with the onboard DIMM socket. DIMM modules are installed by placing the chip firmly into the socket at a 90-degree angle and pressing straight down (figure 6) until it fits tightly into the DIMM socket.
  • Page 16 MBATX-845GV-VEAH Series and insert it completely into the socket. A DIMM should be inserted into the inner socket first. Guiding the hole at each end of the DIMM over the retaining post at each end of the DIMM socket.

  • Page 17: Setting Jumper And Dip Switches

    Installations 2.1.4 Setting Jumpers and DIP Switches There are jumpers and DIP-switches on the system board of the MBATX-845GV-VEAH Series. You can set the jumpers to make the necessary operations. Figure 7: Jumper Connector For any three-pins jumpers (Figure 7), the jumper setting is 1-2 when the jumper connects pin 1 and 2.

  • Page 18: Board Layout

    Installations Board Layout Jumper & Connector Location KBMS1 POWER FAN FAN2 ATX1 FAN1 COM1 CPU FAN LPT1 VGA1 ATX2 USB1 USB2 AGP1 ADD ONLY PCI1 WOL1 PCI2 BAT1 PCI3 IDE1 IDE2 PCI4 JBAT1 COM2 PCI5 FAN3 FDD1 PCI6 JCN1 JPB1 JCN2 JPB2 USB3...

  • Page 19: Jumper Setting

    Installations Jumper Setting Table for Jumper Location Description: Use the information in the following table to change the jumpers and the DIP switches. Jumpers Functions CPU type select Watchdog Timer setting select JBAT1 Clear CMOS setting select JPB1 COM3 port setting select JPB2 COM4 port setting select...
  • Page 20 Installations In order to set up the correct configuration, here is the description about how to set the jumpers to enable/disable or change functions. All jumpers’ location please refer to jumper location diagram. CPU type select: JP1 Function Regular P4 CPU (Default) 1-2 On P4 Mobile CPU 1-2 Off...
  • Page 21 Installations COM3 port setting select: JPB1 JPB1 Function 9-10 11-12 RS-232 RS-422 (Term.) (Term.) RS-485 (Term.) (Term.) Location: COM4 port setting select: JPB2 JPB2 Function 9-10 11-12 RS-232 RS-422 (Term.) (Term.) RS-485 (Term.) (Term.) Location:...

  • Page 22: Connector's Description

    Installations Connector’s Description Connector Location KBMS1 POWER FAN FAN2 ATX1 FAN1 COM1 CPU FAN LPT1 VGA1 ATX2 USB1 USB2 AGP1 ADD ONLY PCI1 WOL1 PCI2 BAT1 PCI3 IDE1 IDE2 PCI4 JBAT1 COM2 PCI5 FAN3 FDD1 PCI6 JCN1 JPB1 JCN2 JPB2 USB3 FAN4...
  • Page 23 Installations Table for Connector’s Location Description: Use the information in the following table to change the connector. Connectors Functions IDE1 Primary IDE connector IDE2 Secondary IDE connector FDD1 Floppy disk connector KBMS1 PS/2 keyboard & mouse connectors COM1 COM1 RS-232 serial port connector LPT1 Parallel port connector VGA1...
  • Page 24 Installations Primary IDE connector (40-pins 2.54mm pitch pin-header with housing): IDE1 Pin # Assignment Pin # Assignment Reset IDE Ground Host Data 7 Host Data 8 Host Data 6 Host Data 9 Host Data 5 Host Data 10 Host Data 4 Host Data 11 Host Data 3 Host Data 12...
  • Page 25 Installations Secondary IDE connector (40-pins 2.54mm pitch pin-header with housing): IDE2 Pin # Assignment Pin # Assignment Reset IDE Ground Host Data 7 Host Data 8 Host Data 6 Host Data 9 Host Data 5 Host Data 10 Host Data 4 Host Data 11 Host Data 3 Host Data 12...
  • Page 26 Installations Floppy disk connector (34-pins 2.54mm pitch pin-header with housing): FDD1 Pin # Assignment Pin # Assignment Ground Drive Density Selection Ground Ground Drive Density Selection Ground Index Ground Motor Enable 0 Ground Drive Select 1 Ground Drive Select 0 Ground Motor Enable 1 Ground...
  • Page 27 Installations PS/2 keyboard connector (6-pins green Mini Din): KBMS1 Pin # Assignment Pin # Assignment Keyboard data Ground Keyboard clock Figure: PS/2 mouse connector (6-pins purple Mini Din): KBMS1 Pin # Assignment Pin # Assignment Mouse data Ground Mouse clock Figure:...
  • Page 28 Installations COM1 RS-232 serial port connector (D-Sub 9-pins male): COM1 Pin # Assignment Pin # Assignment DCD (Data Carrier Detect) DSR (Data Set Ready) RXD (Receive Data) RTS (Request to Send) TXD (Transmit Data) CTS (Clear to Send) DTR (Data Terminal Ready) RI (Ring Indicator) Ground Figure:...
  • Page 29 Installations CRT VGA port connector (D-SUB 15-pins female): VGA1 Pin # Assignment Pin # Assignment Green Blue Ground Ground Ground Ground Ground DDData HSync VSync DDClk Figure: USB 1/2 connectors (4-pins female): USB1 Pin # Assignment Pin # Assignment USB1 - USB2 - USB1 + USB2 +...
  • Page 30 Installations USB 3/4 connectors (4-pins female): USB2 Pin # Assignment Pin # Assignment USB3 - USB4 - USB3 + USB4 + Signal ground Signal ground Figure: Ethernet (82562ET) RJ-45 connector (RJ-45 phone–jack): LAN Pin # Assignment Pin # Assignment Transmit output (+) Transmit output (-) Receive input (-) Receive input (+)
  • Page 31 Installations Audio port connector: CN1 Pin # Assignment Blue Line-In Green Line-Out Mic-In Figure: CD_IN connector: CDIN1 Pin # Assignment CD_IN_Left CD_Ground CD_Ground CD_IN_Right Figure:...
  • Page 32 Installations AUX_IN connector: AUXIN1 Pin # Assignment Left Line_IN Ground Ground Right Line_IN_ Figure: Wake On LAN connector: WOL1 Pin # Assignment 5VSB Ground Data Figure:...
  • Page 33 Installations COM2 RS-232 serial port connector (10-pins pin-header): COM2 Pin # Assignment Pin # Assignment DCD (Data Carrier Detect) DSR (Data Set Ready) RXD (Receive Data) RTS (Request to Send) TXD (Transmit Data) CTS (Clear to Send) DTR (Data Terminal Ready) RI (Ring Indicator) Ground Ground...
  • Page 34 Installations COM4 RS-232/422/485 serial port connector (14-pins pin-header): JCN2 Pin # Assignment Pin # Assignment DCD (Data Carrier Detect) DSR (Data Set Ready) RXD (Receive Data) RTS (Request to Send) TXD (Transmit Data) CTS (Clear to Send) DTR (Data Terminal Ready) RI (Ring Indicator) Ground Ground...
  • Page 35 Installations USB 5/6 pin-header (9-pins pin-header): USB3 Pin # Assignment Pin # Assignment USB5 - USB6 - USB5 + USB6 + Ground Ground Figure: Power fan power connector: FAN1 Pin # Assignment Ground +12V Sense Figure:...
  • Page 36 Installations CPU fan power connector: FAN2 Pin # Assignment Ground +12V Sense Figure: Chassis fan power connector: FAN3 Pin # Assignment Ground +12V Sense Figure: Fan power connector: FAN4 Pin # Assignment Ground +12V Sense Figure:...
  • Page 37 Installations ATX 12V power connector: ATX1 Pin # Assignment Pin # Assignment Ground Ground +12V +12V Figure: ATX power connector: ATX2 Pin # Assignment Pin # Assignment +3.3V +3.3V +3.3V -12V Ground Ground PS-ON Ground Ground Ground Ground Ground PW-OK 5VSB +12V Figure:...
  • Page 38 Installations System panel indicate connector: J1 & J2 Pin # J1 Assignment Pin # J2 Assignment RESET RESET+ FIRTX Ground SPEAKER IRRX Ground SPEAKER IRTX HDD LED Ground HDLED+ PWR LED HDLED- TB LED PWLED+ TBLED+ TBLED- PWLED- PWR ON KEYLOCK PWRBT+ KBLOCK...
  • Page 39 Installations Slim floppy disk connector (26-pins FPC connector): J3 Pin # Assignment Pin # Assignment Step Index Ground Write_Data Drive_Select Ground Write_Gate Disk_Change Ground Track Ready Ground HD_Out Write_Protect Motor_On Ground Reserve Read_Data Direction Ground Side_One Figure:...

  • Page 40: Section 3 Award Bios Setup

    ECTION BIOS S WARD ETUP 3.1 BIOS Instructions Award’s ROM BIOS provides a built-in Setup program, which allows user to modify the basic system configuration and hardware parameters. The modified data will be stored in a battery-backed CMOS, so that data will be retained even when the power is turned off.

  • Page 41: Main Menu

    Award BIOS Setup 3.2 Main Menu Once you enter the AwardBIOS™ CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter>...
  • Page 42 Award BIOS Setup Integrated Peripherals: Use this menu to specify your settings for integrated peripherals. See section 4 for the details. Power Management Setup: Use this menu to specify your settings for power management. See section 5 for the details. PnP / PCI Configuration: This entry appears if your system supports PnP / PCI.

  • Page 43: Standard Cmos Features

    Award BIOS Setup 3.3 Standard CMOS Features The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn>...
  • Page 44 Award BIOS Setup IDE Secondary Master: Options are in its sub menu (described in 3.4) Press <Enter> to enter the sub menu of detailed options. IDE Secondary Master: Options are in its sub menu (described in 3.4) Press <Enter> to enter the sub menu of detailed options. Drive A/ Drive B: Options None 360K, 5.25 in/1.2M, 5.25 in/720K, 3.5 in/ 1.44M, 3.5 in/2.88M, 3.5 in Select the type of floppy disk drive installed in your system.

  • Page 45: Ide Adapters

    Award BIOS Setup 3.4 IDE Adapters The IDE adapters control the hard disk drive. Use a separate sub menu to configure each hard disk drive. Phoenix - AwardBIOS CMOS Setup Utility IDE Primary Master IDE HDD Auto-Detection Press Enter Item Help ____________________________ IDE Primary Master Auto 2557 MB...
  • Page 46 Award BIOS Setup The following options are selectable only if the ‘IDE Primary Master’ item is set to “Manual” Cylinder: Options Min = 0, Max = 65535 Set the number of cylinders for this hard disk. Head: Options Min = 0, Max = 255 Set the number of read/write heads Precomp: Options Min = 0, Max = 65535 **** Warning: Setting a value of 65535 means no hard disk...

  • Page 47: Advanced Bios Features

    Award BIOS Setup 3.5 Advanced BIOS Features This section allows you to configure your system for basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security. Phoenix - AwardBIOS CMOS Setup Utility Advanced BIOS Features Virus Warning Disabled...
  • Page 48 Award BIOS Setup Quick Power On Self Test: This category speeds up Power On Self Test (POST) after you power up the computer. If it is set to Enable, BIOS will shorten or skip some check items during POST. Enabled---Enable quick POST Disabled--- Normal POST APIC Mode: This item allows you to enable/disable APIC Mode.
  • Page 49 Award BIOS Setup Swap Floppy Drive: If the system has two floppy drives, you can swap the logical drive name assignments. The choice: Enabled, Disabled. Boot Up Floppy Seek: Seeks disk drives during boot up. Disabling speeds boot up. The choice: Enabled, Disabled. Report No FDD For Win 95: Whether report no FDD for Win 95 or not.
  • Page 50 Award BIOS Setup Security Option: Select whether the password is required every time the system boots or only when you enter setup. System---The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt. Setup---The system will boot, but access to Setup will be denied if the correct password is not entered at the prompt.

  • Page 51: Advanced Chipset Features

    Award BIOS Setup 3.6 Advanced Chipset Features This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache.
  • Page 52 Award BIOS Setup CAS Latency Time: When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. The choice: 1.5, 2, and 2.5. Active To Precharge Delay: Select the operating system that is active to precharge delay. The choice: 5, 6, 7.
  • Page 53 Award BIOS Setup Delayed Transaction: The chipset has an embedded 32-bit posted write buffer to support delay transactions cycles. Select “Enabled” to support compliance with PCI specification version 2.1. The choice: Enabled, Disabled. Command Per Clock: Select this item allows the command per clock for system. The choice: Auto, Enabled, Disabled.

  • Page 54: Integrated Peripherals

    Award BIOS Setup 3.7 Integrated Peripherals Phoenix - AwardBIOS CMOS Setup Utility Integrated Peripherals Onboard IDE Device Setup Press Enter Item Help Onboard PCI Device Setup Press Enter ____________________________ Onboard I/O Chip Setup Press Enter Init Display First Onboard AGP Menu Level Onboard Serial Port 3 Serial Port 3 Use IRQ...
  • Page 55 Award BIOS Setup IDE Primary/Secondary Master/Slave PIO: The four IDE PIO (Programmed Input/Output) fields let you set a PIO mode (0-4) for each of the four IDE devices that the onboard IDE interface supports. Modes 0 through 4 provide successively increased performance. In Auto mode, the system automatically determines the best mode for each device.
  • Page 56 Award BIOS Setup USB Keyboard Support: Select “Enabled” if your system contains a Universal Serial Bus (USB) controller and you have a USB keyboard. The choice: Enabled, Disabled. USB Mouse Support: Select “Enabled” if your system contains a Universal Serial Bus (USB) controller and you have a USB mouse.
  • Page 57 Award BIOS Setup Hot Key Power ON: You can use this item to select operating Hot Key to Power On system. The choice: Ctrl-F1 Onboard FDC Controller: Select “Enabled” if your system has a floppy disk controller (FDC) installed on the system board and you wish to use it. If you install and-in FDC or the system has no floppy drive, select Disabled in this field.
  • Page 58 Award BIOS Setup Parallel Port Mode: Select an operating mode for the onboard parallel (printer) port. Select Normal, Compatible, or SPP unless you are certain your hardware and software both support one of the other available modes. The choice: SPP, EPP, ECP and ECP+EPP. EPP Mode Select: Select EPP port type 1.7 or 1.9.

  • Page 59: Power Management Setup

    Award BIOS Setup 3.8 Power Management Setup The Power Management Setup allows you to configure you system to most effectively save energy while operating in a manner consistent with your own style of computer use. Phoenix - AwardBIOS CMOS Setup Utility Power Management Setup Power Management User Define...
  • Page 60 Award BIOS Setup Min. Power Saving: Minimum power management. Doze Mode = 1 hr. Standby Mode = 1 hr., Suspend Mode = 1 hr., and HDD Power Down = 15 min. Max. Power Saving: Maximum power management -- ONLY AVAILABLE FOR SL CPU’s. Doze Mode = 1 min., Standby Mode = 1 min., Suspend Mode = 1 min., and HDD Power Down = 1 min.
  • Page 61 Award BIOS Setup Suspend Mode: When “Enabled” and after the set time of system inactivity. All devices except the CPU will be shut off. The choice: Enabled, Disabled. HDD Power Down: When “Enabled” and after the set time of system inactivity, the hard disk drive will be powered down while all other devices remain active.
  • Page 62 Award BIOS Setup Reload Global Timer Events: The events are I/O events whose occurrence can prevent the system from entering a power saving mode or can awaken the system from such a mode. In effect, the system remains alert for anything, which occurs to a device, which is configured as Enabled, even when the system is in a power down mode.

  • Page 63: Pnp/Pci Configurations

    Award BIOS Setup 3.9 PnP/PCI Configurations This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a system, which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when communicating with its own special components. This section covers some very technical items and it is strongly recommended that only experienced users should make any changes to the default settings.

  • Page 64: Pc Health Status

    Award BIOS Setup 3.10 PC Health Status Phoenix - AwardBIOS CMOS Setup Utility PC Health Status CPU Warning Temperature Disabled Item Help Current CPU Temp. 40°C / 104°F ____________________________ Current System Temp. 24°C / 75°F Current Chassis Fan Speed 3283RPM Menu Level Current CPU Fan Speed 5152RPM...
  • Page 65 Award BIOS Setup Vagp (V) The voltage level of Power supplied to AGP card. Vcore (V) The voltage level of CPU (Vcore). Vdimm (V) The voltage level of the DRAM. +5V/+12V: Show you the voltage of +5V/+12V. Shutdown Temperature: This item allows you to set up the CPU shutdown Temperature. This item is ®...

  • Page 66: Frequency/Voltage Control

    Award BIOS Setup 3.11 Frequency/Voltage Control Phoenix - AwardBIOS CMOS Setup Utility Frequency/Voltage Control CPU Clock Ratio Item Help Watch Dog Function Enabled ____________________________ 100MHz/2.40GHz CPU FSB / SPEED Auto=>DDR266 Memory Frequency Menu Level 66/33MHz Next boot AGP/PCI is Auto AGP / PCI Clock 66MHz AGP/PCI subtle tuning...
  • Page 67 Award BIOS Setup Clock Generation for EMI: Clock Generation for EMI Auto Detect PCI Clk Enabled Item Help Spread Spectrum Modulated Disabled ____________________________ Menu Level ↑↓←→Move Enter: Select +/-/PU/PD: Value F10: Save ESC: Exit F1: General Help F5: Previous Values F6: Fail-safe defaults F7: Optimized Defaults Auto Detect PCI Clk:...

  • Page 68: Load Fail-Safe Default

    Award BIOS Setup 3.12 Load Fail-Safe Defaults When you press <Enter> on this item you get a confirmation dialog box with a message similar to: Load Fail-Safe Defaults (Y/N)? N Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

  • Page 69: Supervisor/User Password Setting

    Award BIOS Setup 3.14 Supervisor/User Password Setting You can set either supervisor or user password, or both of then. The differences between are: Set Supervisor Password: can enter and change the options of the setup menus. Set User Password: just can only enter but do not have the right to change the options of the setup menus.

  • Page 70: Exit Selecting

    Award BIOS Setup 3.15 Exit Selecting Save & Exit Setup Pressing <Enter> on this item asks for confirmation: Save to CMOS and EXIT (Y/N)? Y Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays on after you turn your system off. The next time you boot your computer, the BIOS configures your system according to the Setup selections stored in CMOS.
