7.

Installing COM Cable/Connector (optional)

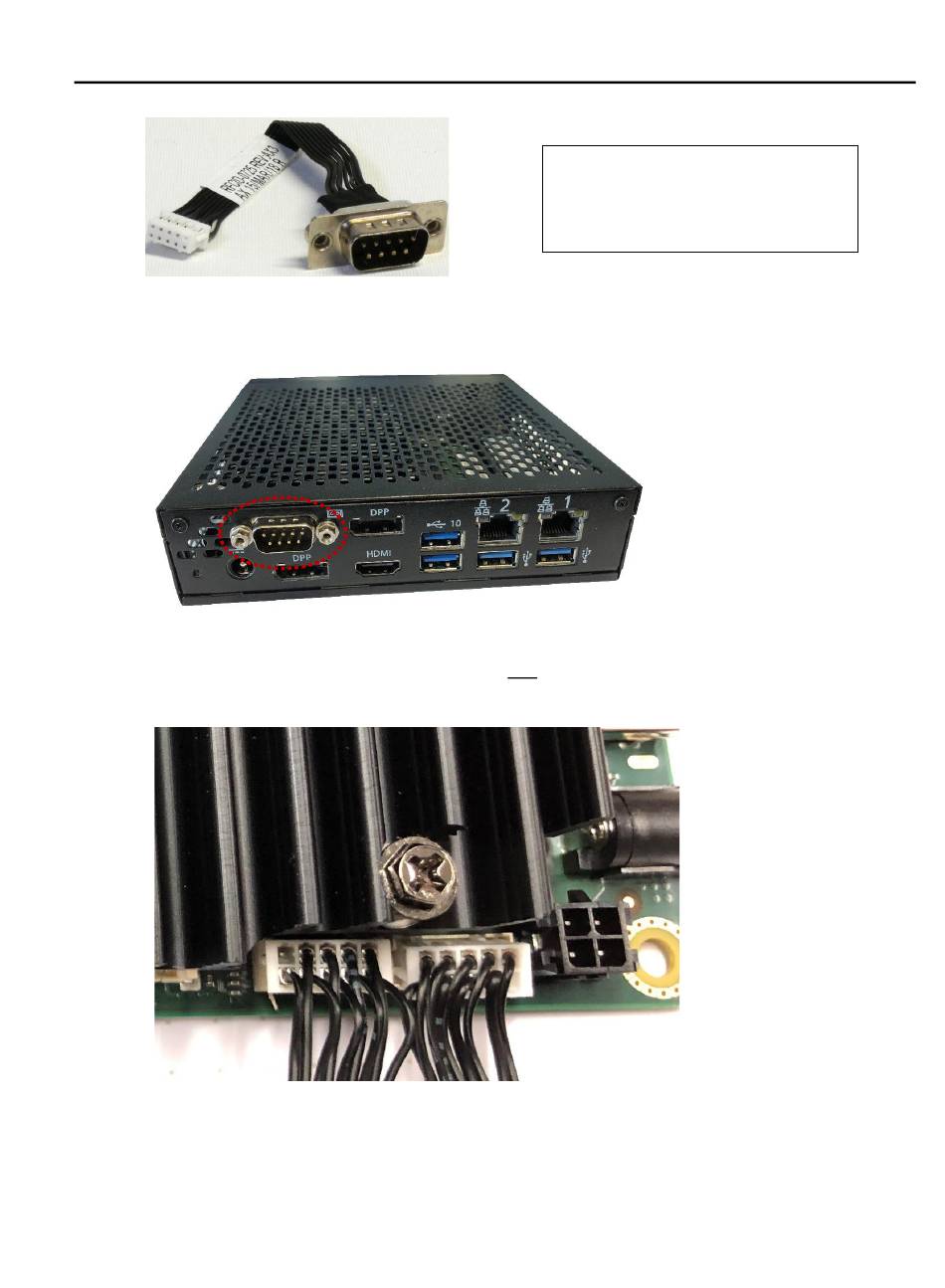

COM cable F5000-K007
Remove carefully COM metal cover first (use of screwdriver recommended).
SMARTCASE™ S511 provides the rear aperture for max. one COM port; the cable can be connected to
either COM1 or COM2 connector of the motherboard D3714-R1/-R2 or D3724-R1.
COM1
Cable
Note: COM1 = RS-232
COM2 = RS-232/-422/-485 (BIOS Setup options)
Install the Sub-D connector of the cable to the chassis rear cover (specific COM screws UNC4-40).
Mandatory torque = 0.6Nm
// 10 of 15
Note: SMARTCASE S511 provides
rear COM port support for D3714-R1,
D3714-R2, and D3724-R1 only due to
limited space on rear wall!
COM2
Cable
www.kontron.com
