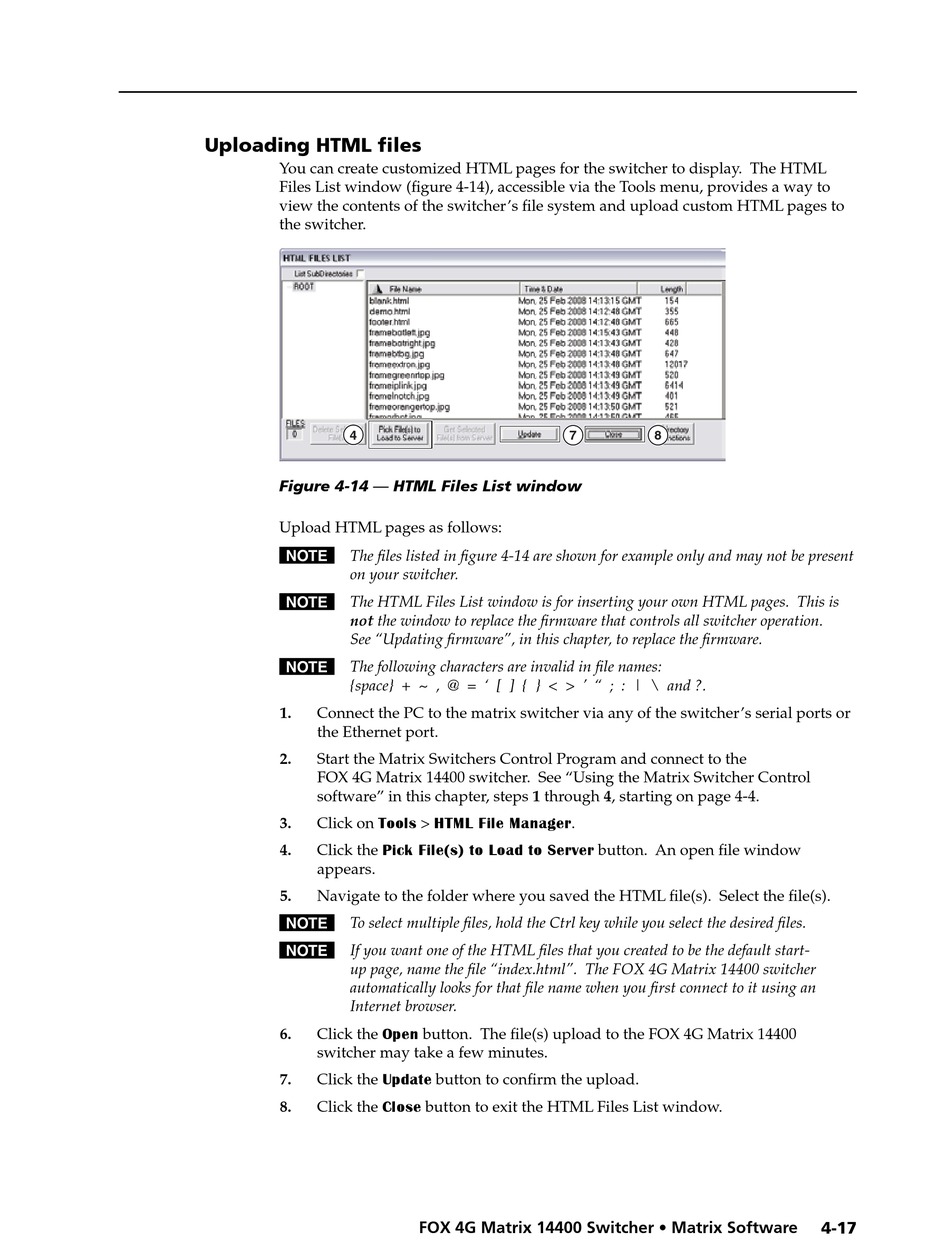

Uploading HTML files

You can create customized HTML pages for the switcher to display. The HTML
Files List window (figure 4-14), accessible via the Tools menu, provides a way to
view the contents of the switcher's file system and upload custom HTML pages to
the switcher.
4
Figure 4-14 — HTML Files List window
Upload HTML pages as follows:
N The files listed in figure 4-14 are shown for example only and may not be present
on your switcher.
N The HTML Files List window is for inserting your own HTML pages. This is
not the window to replace the firmware that controls all switcher operation.
See "Updating firmware", in this chapter, to replace the firmware.
N The following characters are invalid in file names:
{space} + ~ , @ = ' [ ] { } < > ' " ; : | \ and ?.
Connect the PC to the matrix switcher via any of the switcher's serial ports or
1.
the Ethernet port.
Start the Matrix Switchers Control Program and connect to the
2.
FOX 4G Matrix 14400 switcher. See "Using the Matrix Switcher Control
software" in this chapter, steps 1 through 4, starting on page 4-4.
3. Click on Tools > HTML File Manager.
4. Click the Pick File(s) to Load to Server button. An open file window
appears.
5. Navigate to the folder where you saved the HTML file(s). Select the file(s).
N To select multiple files, hold the Ctrl key while you select the desired files.
N If you want one of the HTML files that you created to be the default start-
up page, name the file "index.html". The FOX 4G Matrix 14400 switcher
automatically looks for that file name when you first connect to it using an
Internet browser.
Click the Open button. The file(s) upload to the FOX 4G Matrix 14400
6.
switcher may take a few minutes.
Click the Update button to confirm the upload.
7.
8. Click the Close button to exit the HTML Files List window.
7
FOX 4G Matrix 14400 Switcher • Matrix Software
8
4-17
