Performing soft system resets (resets 3, 4, and 5)

Perform a soft reset of the switcher as follows (figure 2-8):
1.

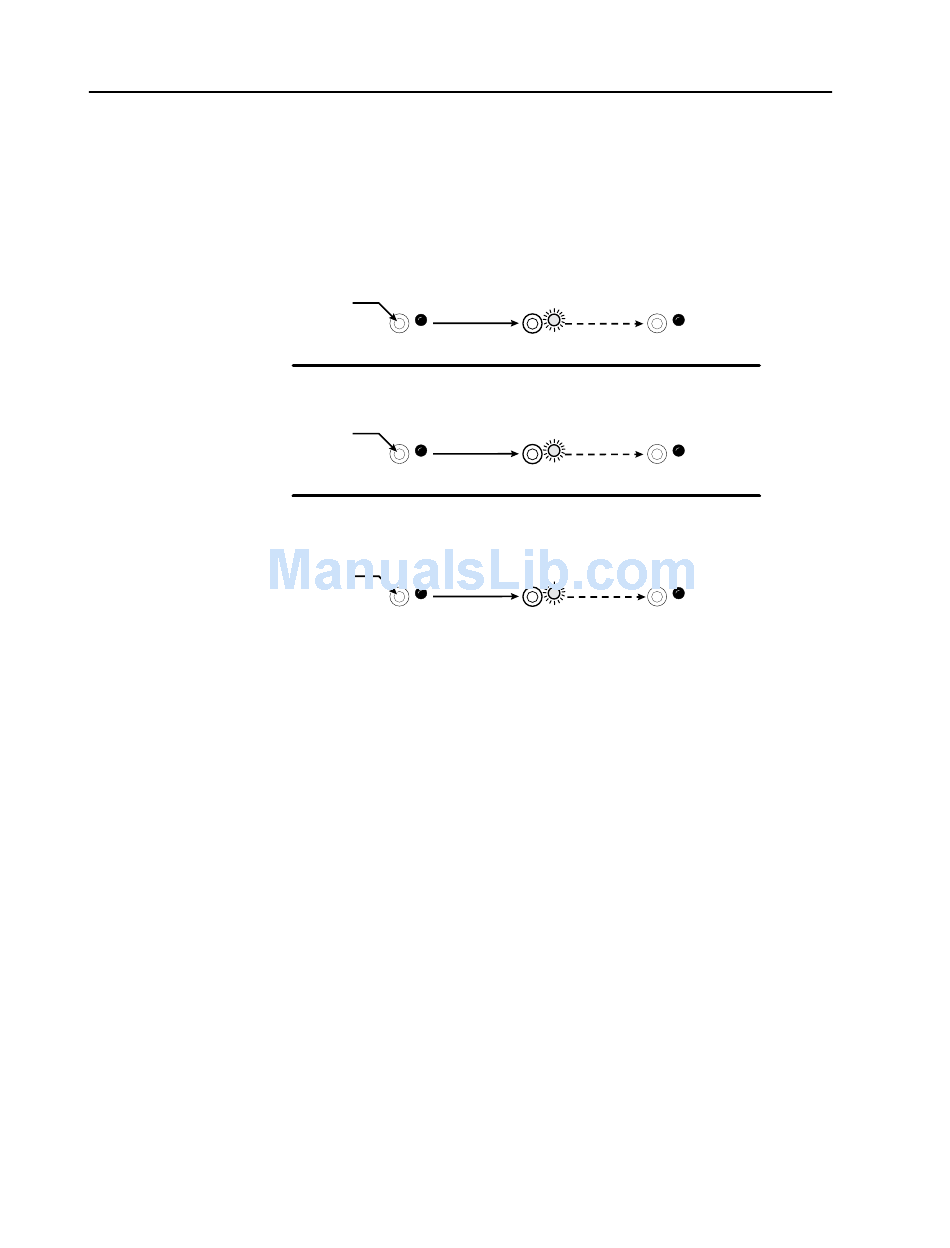

Figure 2-8 — Resets
2.
2-12 FOX 4G Matrix 14400 Switcher • Installation
Use an Extron Tweeker or other small screwdriver to press and hold the rear
panel Reset button until the rear panel Reset LED blinks once (events reset),
twice (system reset), or three times (absolute reset).
Press and hold
Reset LED flashes once.
the Reset button.
Events
Reset 3 seconds
RESET
Press and hold
Reset LED flashes twice.
the Reset button.
IP Settings
Reset
6 seconds
RESET
Press and hold
the Reset button.
Absolute
Reset
9 seconds
RESET
Release the Reset button and then immediately press and release the Reset
button again. Nothing happens if the second momentary press does not occur
within 1 second.
Release, then immediately
press and release again.
Release, then immediately
press and release again.
Reset LED flashes
Release, then immediately
three times.
press and release again.
