4. • To create a tie, drag an input box to one or more output boxes. To remove
a tie, drag the output box to its tied input box or to the trash can.
• To make the control program easier to use, assign a device icon to each
input and output. Click on a box that represents an input or output, and
drag the desired icon onto the box from the icon palette that appears.
• For quick display of information on a specific input or output device,
position the pointer tool over that input or output in the control
program window. The program opens a pop-up window that details the
connections to that device and the status of the optical link (present or
missing) input from or output to that device. See the inset box in figure
4-6.
You can print a map of the current configuration by clicking File > Print Tie
H
Map.

IP Settings/Options window

The IP Settings/Options window (figure 4-7), accessible via the Tools menu,
provides a location for viewing and, if connected via either serial port or if logged
on via the Ethernet port as an administrator, editing settings unique to the Ethernet
interface. See appendix A, "Ethernet Connection", for basic information about
IP addresses. None of the fields on this screen can be edited while you are logged
on as a user.

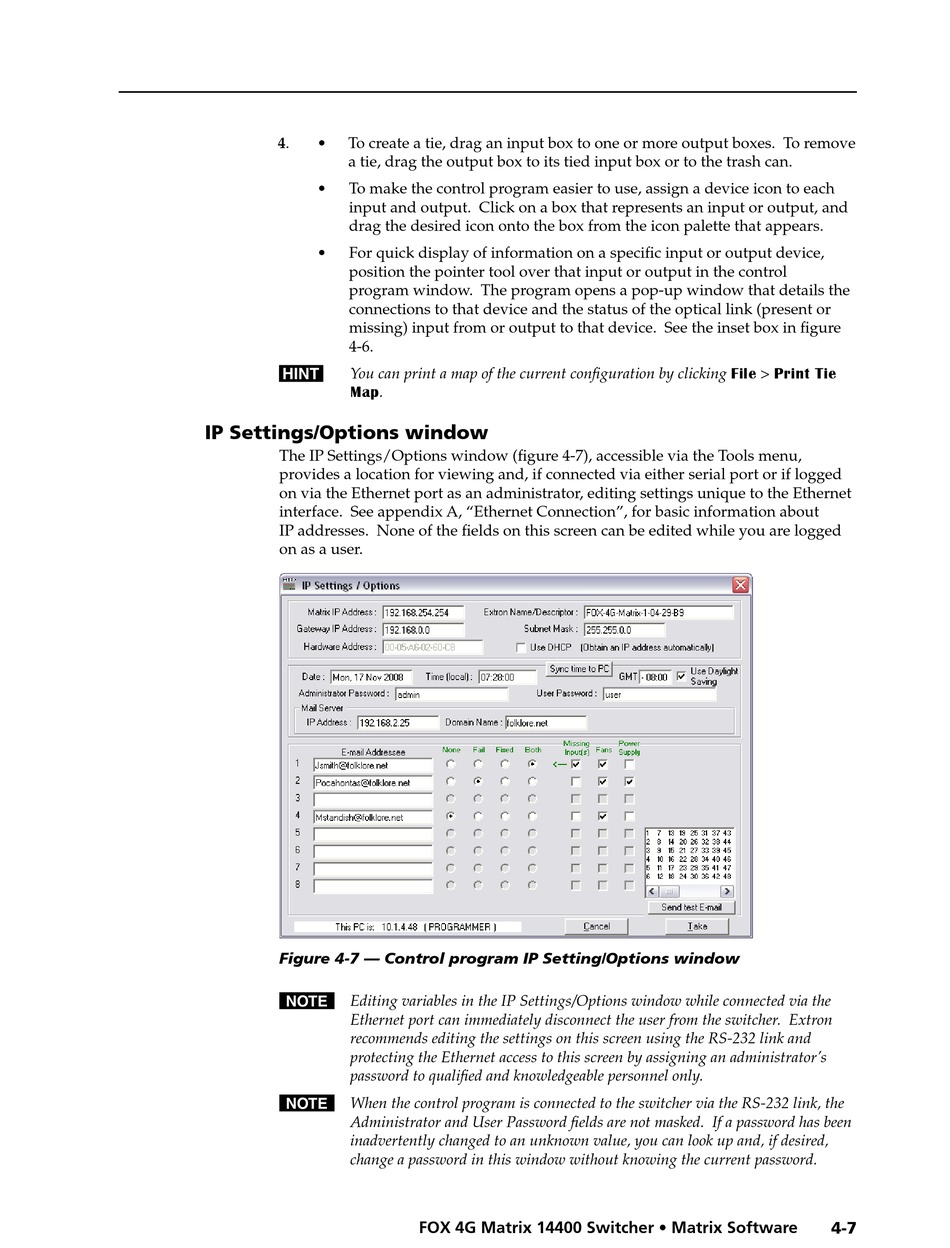

Figure 4-7 — Control program IP Setting/Options window
N Editing variables in the IP Settings/Options window while connected via the
Ethernet port can immediately disconnect the user from the switcher. Extron
recommends editing the settings on this screen using the RS-232 link and
protecting the Ethernet access to this screen by assigning an administrator's
password to qualified and knowledgeable personnel only.
N When the control program is connected to the switcher via the RS-232 link, the
Administrator and User Password fields are not masked. If a password has been
inadvertently changed to an unknown value, you can look up and, if desired,
change a password in this window without knowing the current password.
FOX 4G Matrix 14400 Switcher • Matrix Software 4-7
