Control Tab

Set and View Ties page

You can create ties on the Set and View Ties page (figure 5-11). Access the User
Control page by clicking the Control tab.
Refresh or Select a
Different Output
Group for Ties
Global Presets

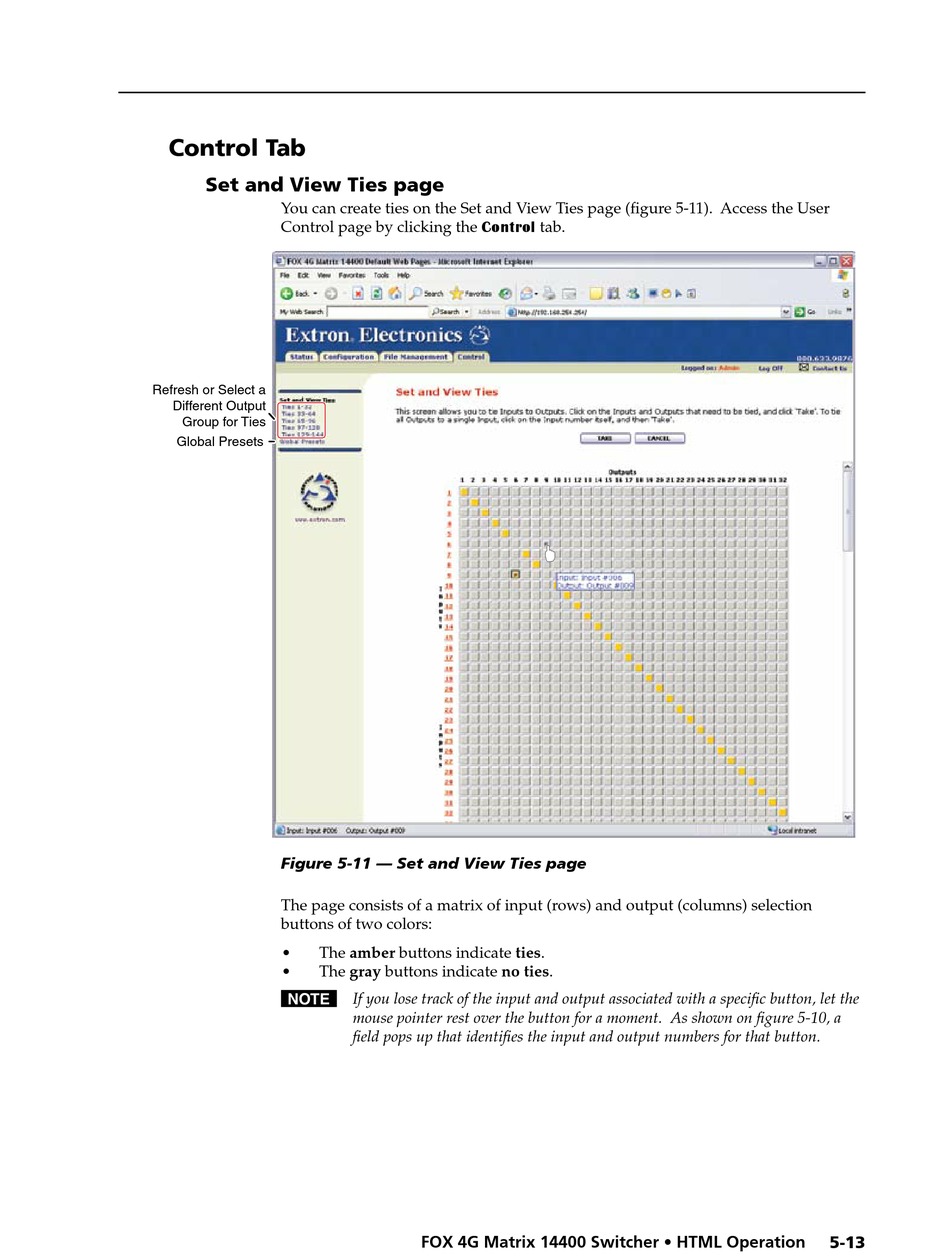

Figure 5-11 — Set and View Ties page
The page consists of a matrix of input (rows) and output (columns) selection
buttons of two colors:
• The amber buttons indicate ties.
• The gray buttons indicate no ties.
N If you lose track of the input and output associated with a specific button, let the
mouse pointer rest over the button for a moment. As shown on figure 5-10, a
field pops up that identifies the input and output numbers for that button.
