HTML Operation, cont'd

Passwords page

Access the Passwords page (figure 5-6) by clicking the Passwords link on the
System Settings page.
System Settings
Refresh
Email Settings
Firmware Upgrade

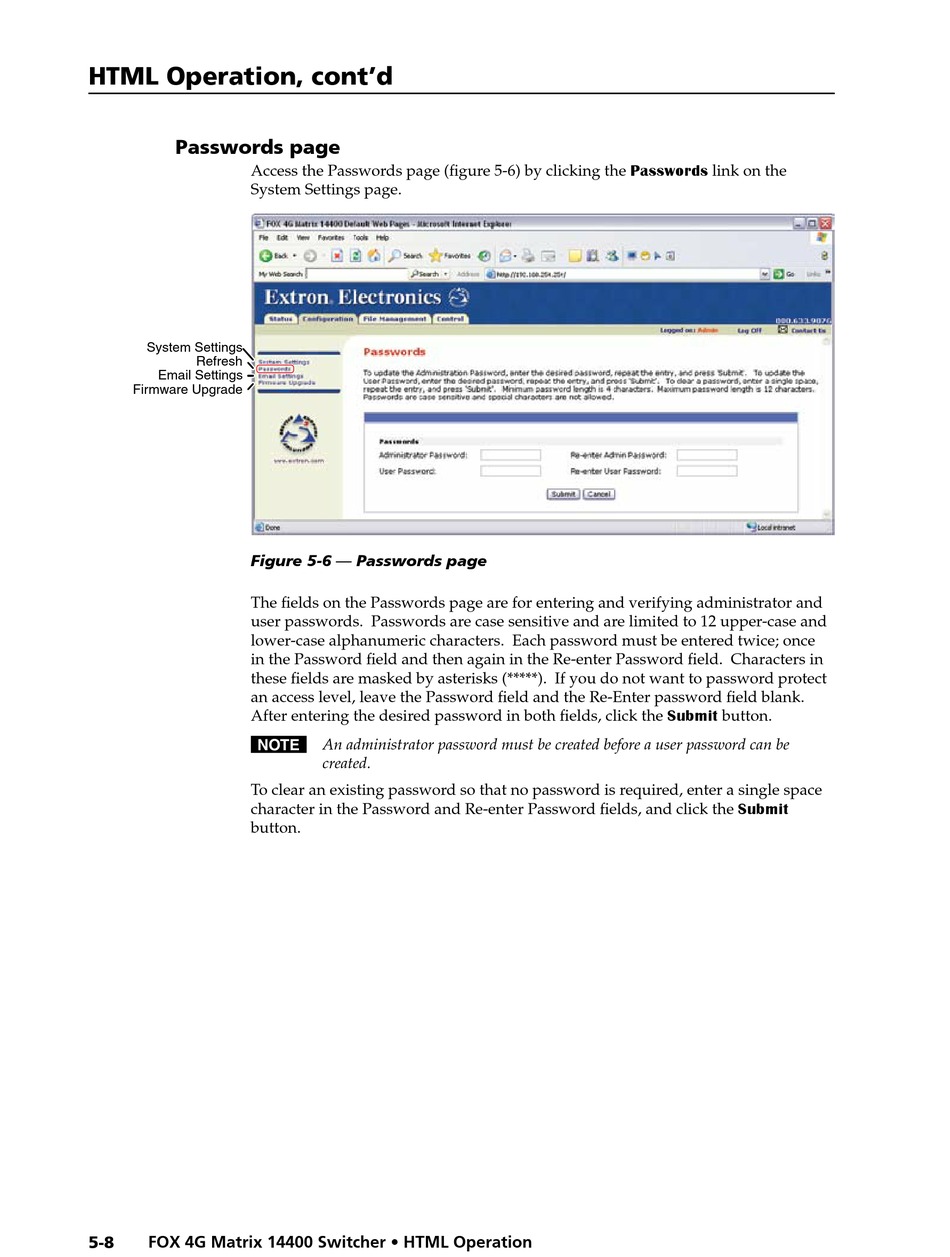

Figure 5-6 — Passwords page
The fields on the Passwords page are for entering and verifying administrator and
user passwords. Passwords are case sensitive and are limited to 12 upper-case and
lower-case alphanumeric characters. Each password must be entered twice; once
in the Password field and then again in the Re-enter Password field. Characters in
these fields are masked by asterisks (*****). If you do not want to password protect
an access level, leave the Password field and the Re-Enter password field blank.
After entering the desired password in both fields, click the Submit button.
N An administrator password must be created before a user password can be
To clear an existing password so that no password is required, enter a single space
character in the Password and Re-enter Password fields, and click the Submit
button.
5-8 FOX 4G Matrix 14400 Switcher • HTML Operation
created.
