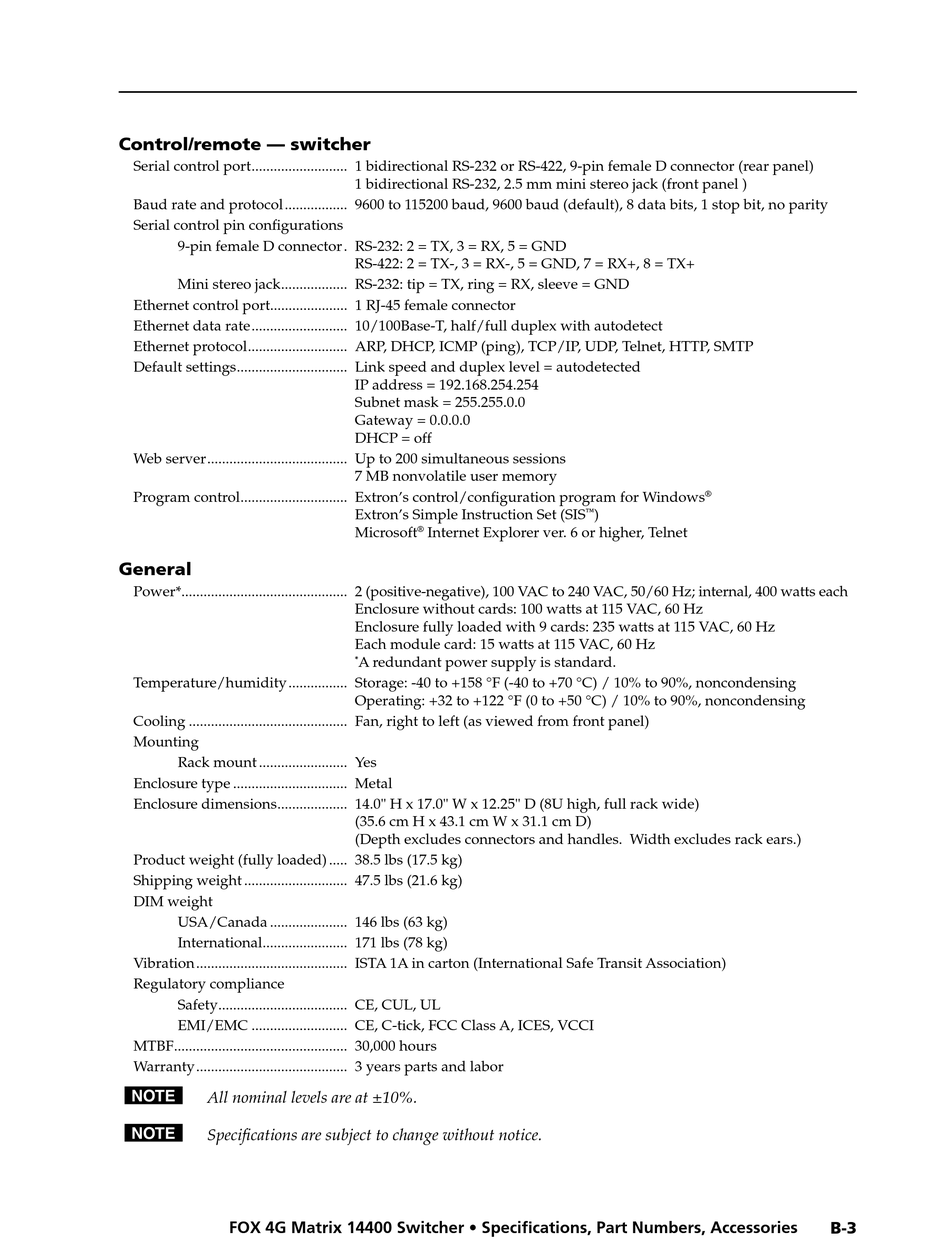

Control/remote — switcher
Serial control port .......................... 1 bidirectional RS-232 or RS-422, 9-pin female D connector (rear panel)
Baud rate and protocol ................. 9600 to 115200 baud, 9600 baud (default), 8 data bits, 1 stop bit, no parity
Serial control pin configurations
9-pin female D connector . RS-232: 2 = TX, 3 = RX, 5 = GND
Mini stereo jack .................. RS-232: tip = TX, ring = RX, sleeve = GND
Ethernet control port..................... 1 RJ-45 female connector
Ethernet data rate .......................... 10/100Base-T, half/full duplex with autodetect
Ethernet protocol ........................... ARP, DHCP, ICMP (ping), TCP/IP, UDP, Telnet, HTTP, SMTP
Default settings .............................. Link speed and duplex level = autodetected
Web server ...................................... Up to 200 simultaneous sessions
Program control ............................. Extron's control/configuration program for Windows
General
Power* ............................................. 2 (positive-negative), 100 VAC to 240 VAC, 50/60 Hz; internal, 400 watts each
Temperature/humidity ................ Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing
Cooling ........................................... Fan, right to left (as viewed from front panel)
Mounting
Rack mount ........................ Yes
Enclosure type ............................... Metal
Enclosure dimensions ................... 14.0" H x 17.0" W x 12.25" D (8U high, full rack wide)
Product weight (fully loaded) ..... 38.5 lbs (17.5 kg)
Shipping weight ............................ 47.5 lbs (21.6 kg)
DIM weight
USA/Canada ..................... 146 lbs (63 kg)
International ....................... 171 lbs (78 kg)
Vibration ......................................... ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Safety ................................... CE, CUL, UL
EMI/EMC .......................... CE, C-tick, FCC Class A, ICES, VCCI
MTBF ............................................... 30,000 hours
Warranty ......................................... 3 years parts and labor
N
All nominal levels are at ±10%.
N
Specifications are subject to change without notice.
FOX 4G Matrix 14400 Switcher • Specifications, Part Numbers, Accessories
1 bidirectional RS-232, 2.5 mm mini stereo jack (front panel )
RS-422: 2 = TX-, 3 = RX-, 5 = GND, 7 = RX+, 8 = TX+
IP address = 192.168.254.254
Subnet mask = 255.255.0.0
Gateway = 0.0.0.0
DHCP = off
7 MB nonvolatile user memory
Extron's Simple Instruction Set (SIS
Microsoft Internet Explorer ver. 6 or higher, Telnet
®
Enclosure without cards: 100 watts at 115 VAC, 60 Hz
Enclosure fully loaded with 9 cards: 235 watts at 115 VAC, 60 Hz
Each module card: 15 watts at 115 VAC, 60 Hz
* A redundant power supply is standard.
Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
(35.6 cm H x 43.1 cm W x 31.1 cm D)
(Depth excludes connectors and handles. Width excludes rack ears.)
®
)
™
B-3
