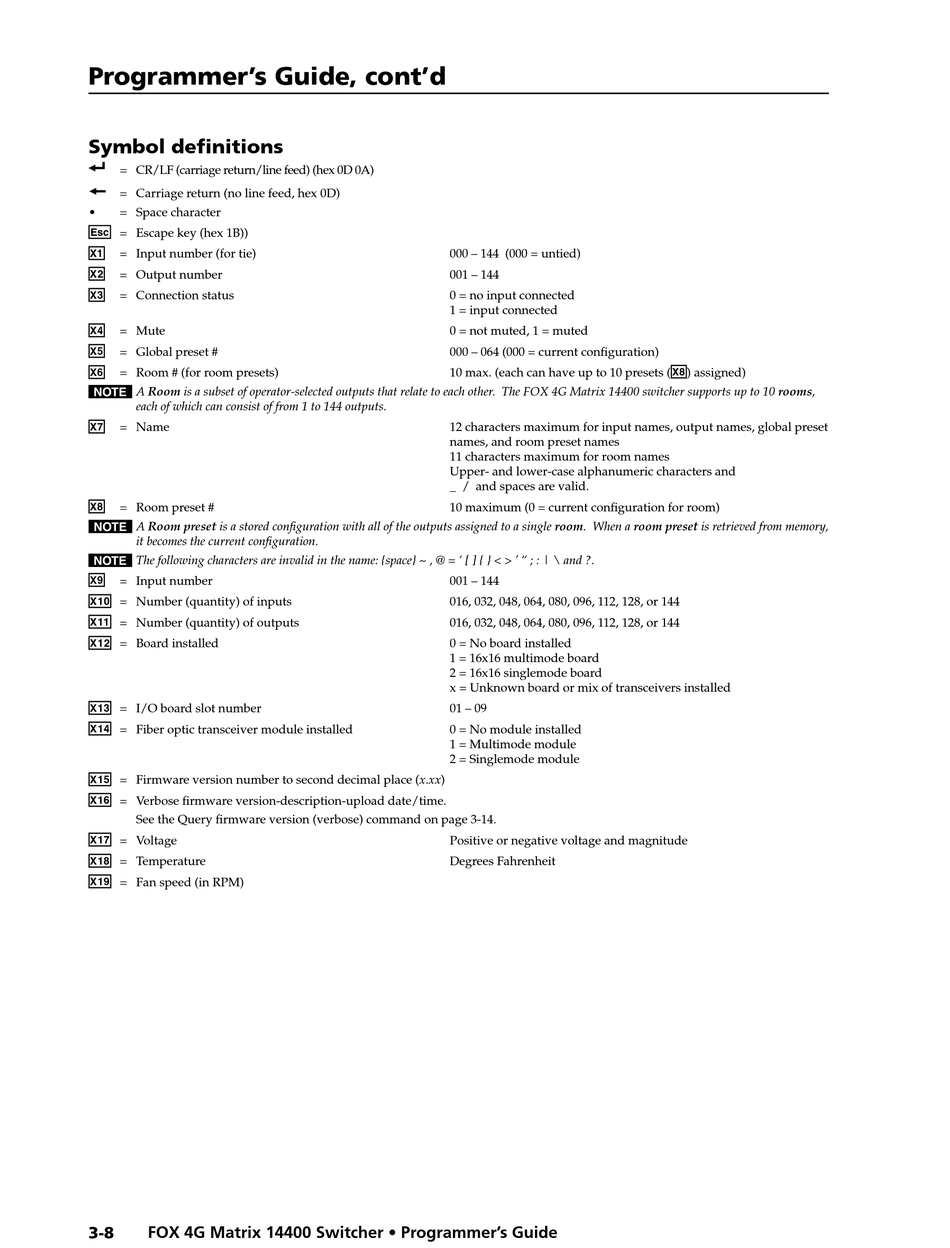

Symbol definitions

]
= CR/LF (carriage return/line feed) (hex 0D 0A)
}
= Carriage return (no line feed, hex 0D)
• = Space character
E
= Escape key (hex 1B))
X!
= Input number (for tie)
X@
= Output number
X#
= Connection status
X$
= Mute
X%
= Global preset #
X^
= Room # (for room presets)
N A Room is a subset of operator-selected outputs that relate to each other. The FOX 4G Matrix 14400 switcher supports up to 10 rooms,
each of which can consist of from 1 to 144 outputs.
X&
= Name
X*
= Room preset #
N A Room preset is a stored configuration with all of the outputs assigned to a single room. When a room preset is retrieved from memory,
it becomes the current configuration.
N The following characters are invalid in the name: {space} ~ , @ = ' [ ] { } < > ' " ; : | \ and ?.
X(
= Input number
X1)
= Number (quantity) of inputs
X1!
= Number (quantity) of outputs
X1@
= Board installed
X1#
= I/O board slot number
X1$
= Fiber optic transceiver module installed
X1%
= Firmware version number to second decimal place (x.xx)
X1^
= Verbose firmware version-description-upload date/time.
See the Query firmware version (verbose) command on page 3-14.
X1&
= Voltage
X1*
= Temperature
X1(
= Fan speed (in RPM)
3-8 FOX 4G Matrix 14400 Switcher • Programmer's Guide
000 – 144 (000 = untied)
001 – 144
0 = no input connected
1 = input connected
0 = not muted, 1 = muted
000 – 064 (000 = current configuration)
10 max. (each can have up to 10 presets (
12 characters maximum for input names, output names, global preset
names, and room preset names
11 characters maximum for room names
Upper- and lower-case alphanumeric characters and
_ / and spaces are valid.
10 maximum (0 = current configuration for room)
001 – 144
016, 032, 048, 064, 080, 096, 112, 128, or 144
016, 032, 048, 064, 080, 096, 112, 128, or 144
0 = No board installed
1 = 16x16 multimode board
2 = 16x16 singlemode board
x = Unknown board or mix of transceivers installed
01 – 09
0 = No module installed
1 = Multimode module
2 = Singlemode module
Positive or negative voltage and magnitude
Degrees Fahrenheit
X*
) assigned)
