Matrix Software, cont'd

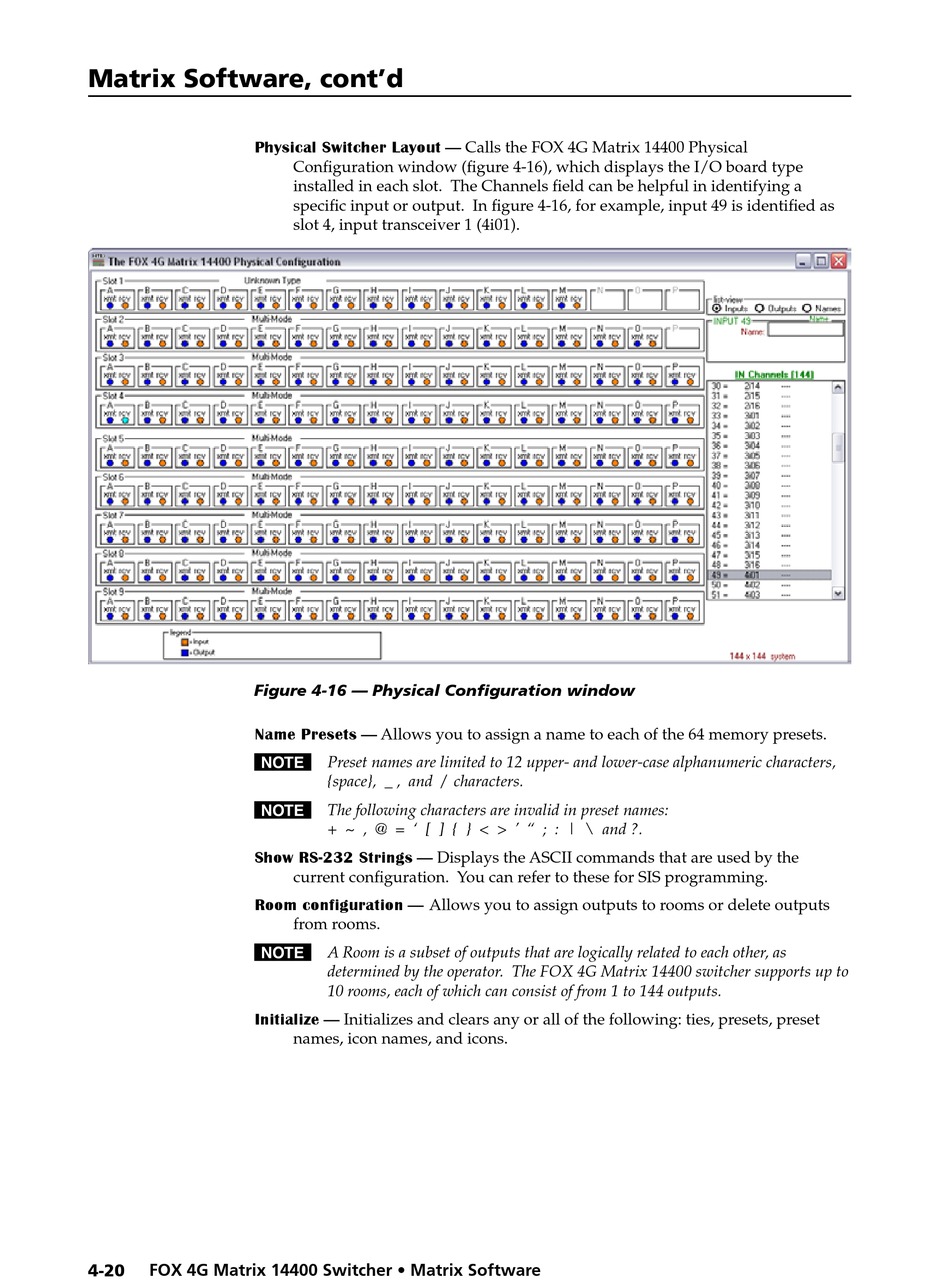

Physical Switcher Layout — Calls the FOX 4G Matrix 14400 Physical
Figure 4-16 — Physical Configuration window
Name Presets — Allows you to assign a name to each of the 64 memory presets.
N Preset names are limited to 12 upper- and lower-case alphanumeric characters,
N The following characters are invalid in preset names:
Show RS-232 Strings — Displays the ASCII commands that are used by the
Room configuration — Allows you to assign outputs to rooms or delete outputs
N A Room is a subset of outputs that are logically related to each other, as
Initialize — Initializes and clears any or all of the following: ties, presets, preset
4-20 FOX 4G Matrix 14400 Switcher • Matrix Software
Configuration window (figure 4-16), which displays the I/O board type
installed in each slot. The Channels field can be helpful in identifying a
specific input or output. In figure 4-16, for example, input 49 is identified as
slot 4, input transceiver 1 (4i01).
{space}, _ , and / characters.
+ ~ , @ = ' [ ] { } < > ' " ; : | \ and ?.
current configuration. You can refer to these for SIS programming.
from rooms.
determined by the operator. The FOX 4G Matrix 14400 switcher supports up to
10 rooms, each of which can consist of from 1 to 144 outputs.
names, icon names, and icons.
