Operating Basics

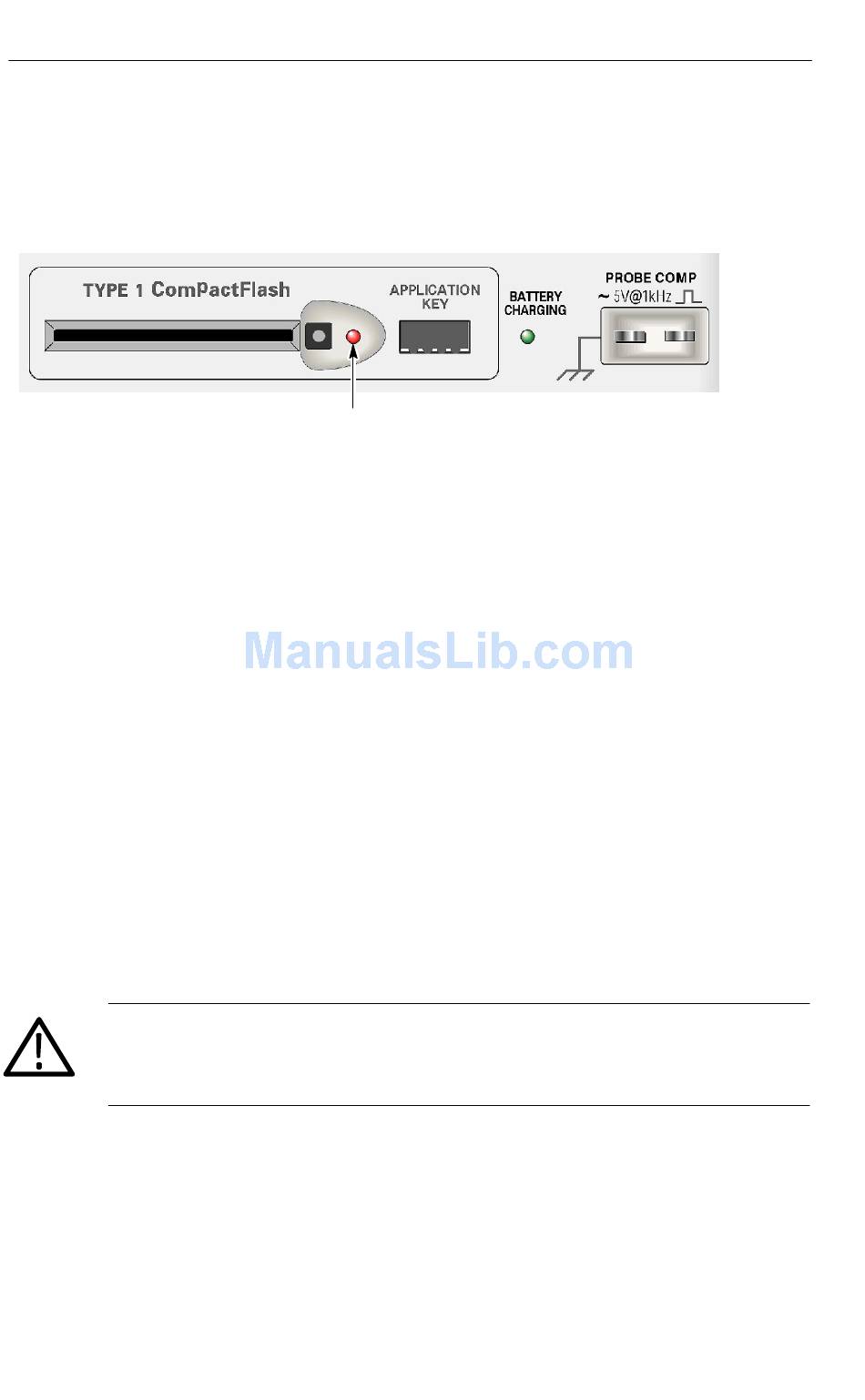

Other Front-Panel Items

TYPE 1 CompactFlash. Insert a CompactFlash (CF) card for removable
memory storage. When saving data to or retrieving data from a CF
card, the adjacent LED lights. Wait until the LED goes out to
remove the card.
APPLICATION KEY. Insert an Application Key to enable an optional
application, such as for power analysis.
BATTERY CHARGING. An LED indicates when the oscilloscope is
charging installed battery packs.
PROBE COMP. Probe compensation output and chassis reference. Use
to electrically match a voltage probe to the oscilloscope input circuit.
See page 1- - 17.
The probe compensation reference lead connects to earth ground and
is then considered to be a ground terminal when using the oscillo-
scope AC adaptor. See page 1- - 4.
CAUTION. When using the DC adapter, do not connect a voltage
source to any exposed metal as this may damage the oscilloscope or
the circuit under test.
2- 16
Lights when saving data to or
retrieving data from a CF card
TPS2000 Series Digital Oscilloscope User Manual
