Operating Basics
6. On-screen markers show the reference points of the displayed
waveforms. If there is no marker, the channel is not displayed.
7. An arrow icon indicates that the waveform is inverted.
8. Readouts show the vertical scale factors of the channels.
9. A B
10. Readout shows main time base setting.
11. Readout shows window time base setting if it is in use.
12. Readout shows trigger source used for triggering.

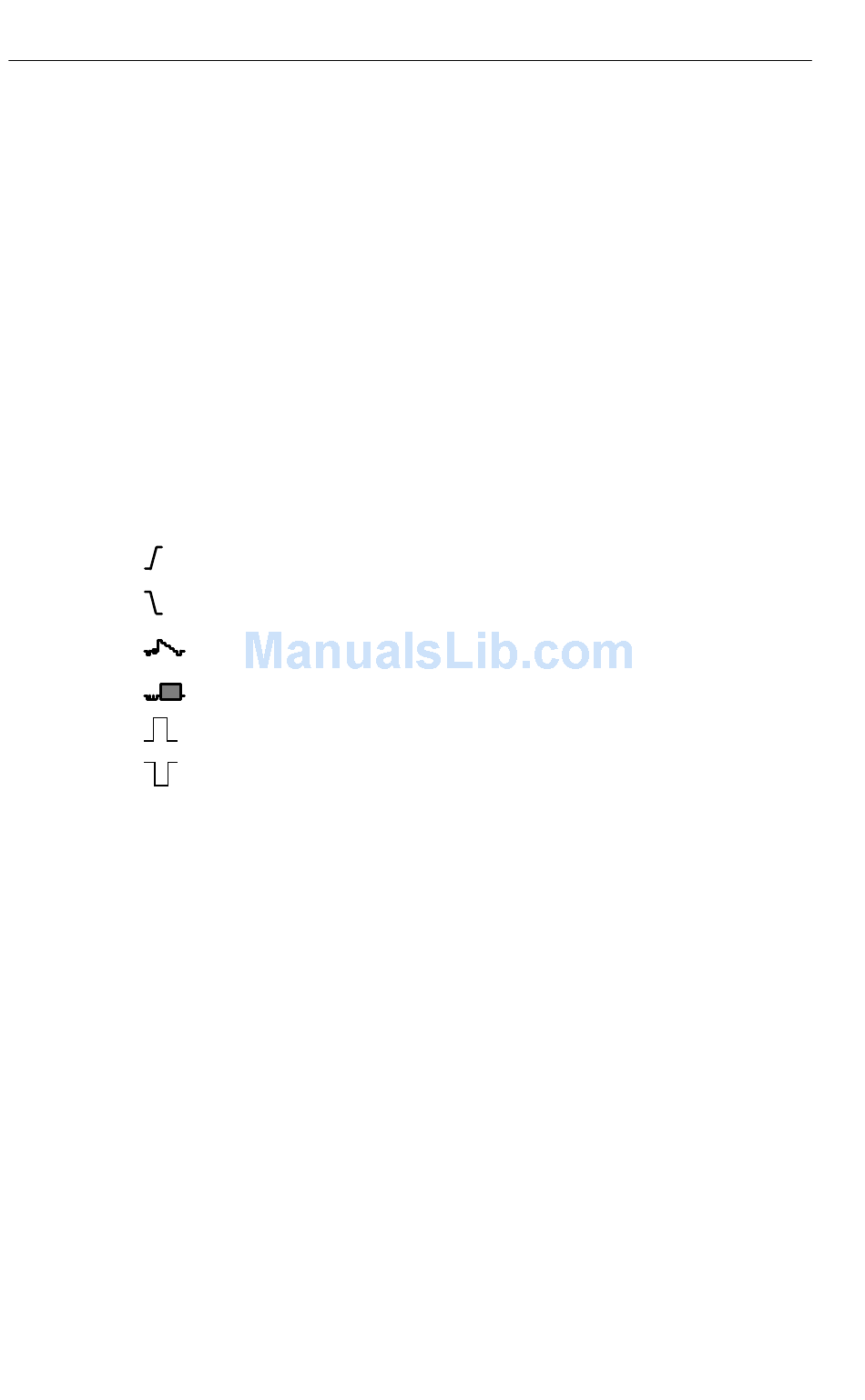

13. Icon shows selected trigger type as follows:
14. Readout shows Edge or Pulse Width trigger level.
15. Display area shows helpful messages; some messages display for
only three seconds.
If you recall a saved waveform, readout shows information about
the reference waveform, such as RefA 1.00V 500µs.
16. Readout shows date and time.
17. Readout shows trigger frequency.
2- 4
icon indicates that the channel is bandwidth limited.
W
- - Edge trigger for the rising edge.
- - Edge trigger for the falling edge.
- - Video trigger for line sync.
- - Video trigger for field sync.
- - Pulse Width trigger, positive polarity.
- - Pulse Width trigger, negative polarity.
