Reference

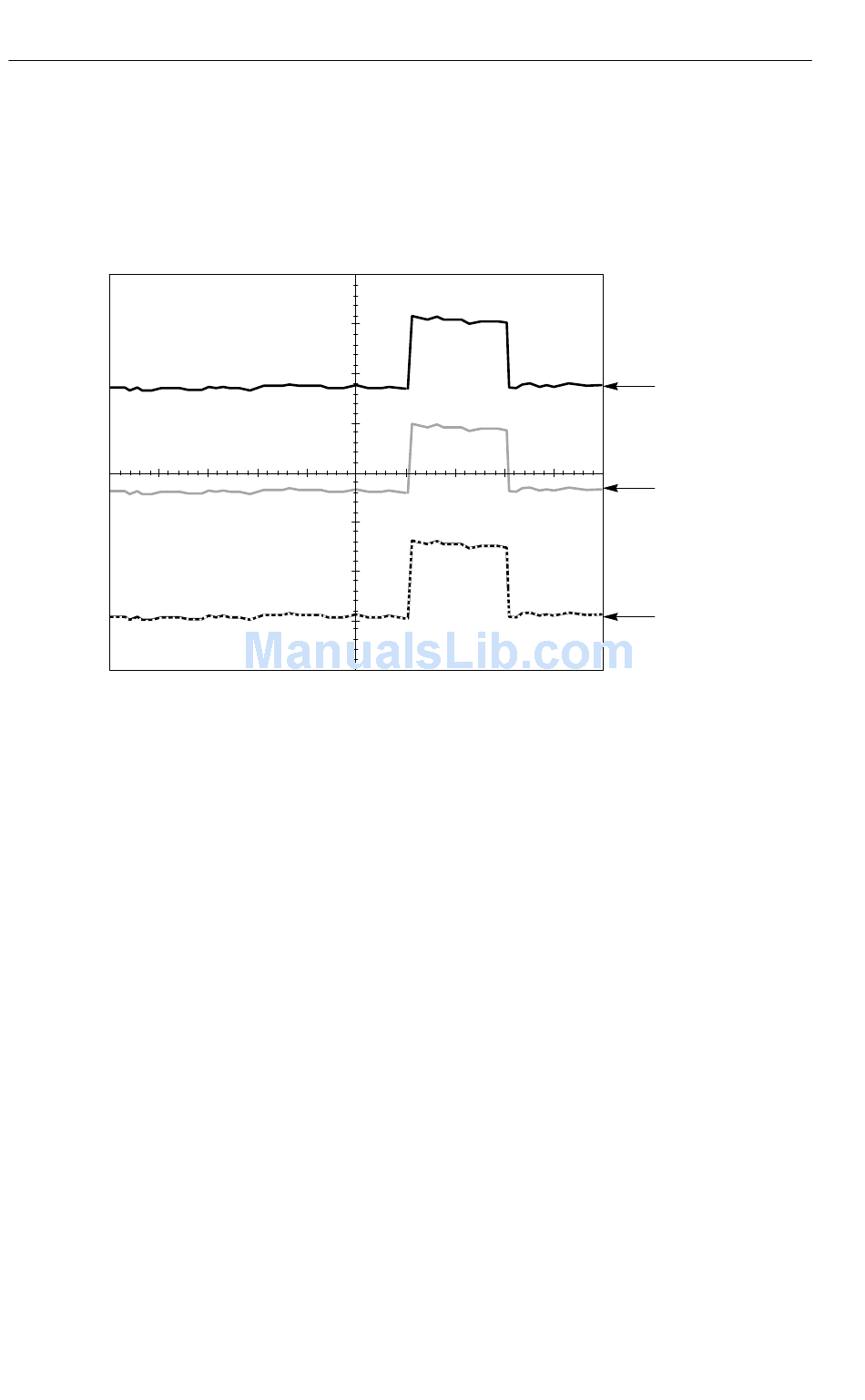

Depending on the type, waveforms will be displayed in three
different styles: solid, dimmed, and broken.
1. A solid waveform indicates a channel (live) waveform display.
The waveform remains solid when the acquisition is stopped if no
controls are changed that make the display accuracy uncertain.
Changing the vertical and horizontal controls is allowed on
stopped acquisitions.
9- 18
TPS2000 Series Digital Oscilloscope User Manual
1
2
3
