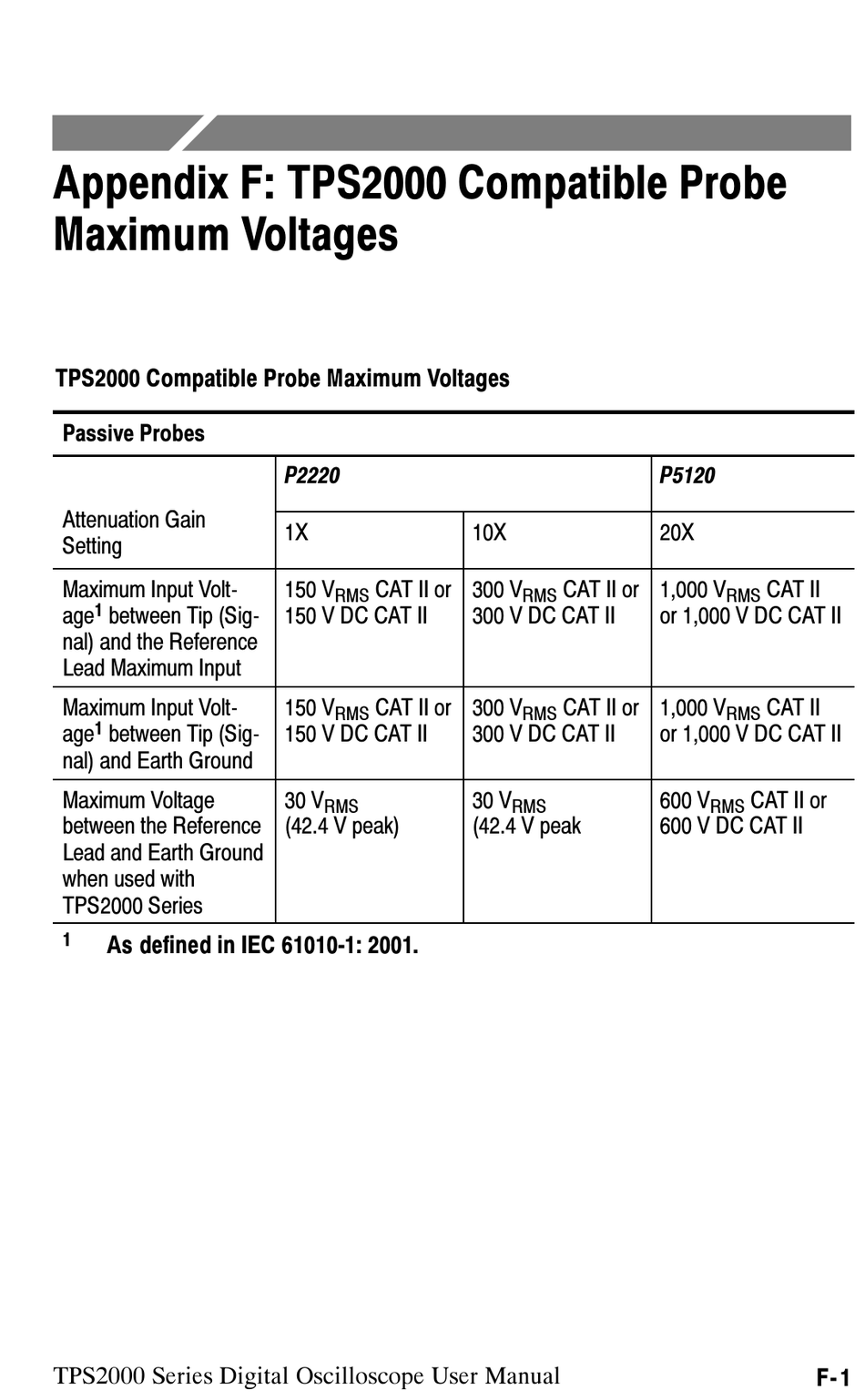

Appendix F: TPS2000 Compatible Probe
Maximum Voltages
TPS2000 Compatible Probe Maximum Voltages
Passive Probes
Attenuation Gain A i G i
Setting
Maximum Input Volt-
1
age between Tip (Sig-
nal) and the Reference
Lead Maximum Input
Maximum Input Volt-
1
age between Tip (Sig-
nal) and Earth Ground
Maximum Voltage
between the Reference
Lead and Earth Ground
when used with
TPS2000 Series
1
As defined in IEC 61010-1: 2001.
TPS2000 Series Digital Oscilloscope User Manual
P2220
1X
150 V CAT II or
RMS
150 V DC CAT II
150 V CAT II or
RMS
150 V DC CAT II
30 V
RMS
(42.4 V peak)
10X
300 V CAT II or
RMS
300 V DC CAT II
300 V CAT II or
RMS
300 V DC CAT II
30 V
RMS
(42.4 V peak
P5120
20X
1,000 V CAT II
RMS
or 1,000 V DC CAT II
1,000 V CAT II
RMS
or 1,000 V DC CAT II
600 V CAT II or
RMS
600 V DC CAT II
F- 1
