Sine Wave

When you use the Autoset function and the oscilloscope determines
that the signal is similar to a sine wave, the oscilloscope displays the
following options:

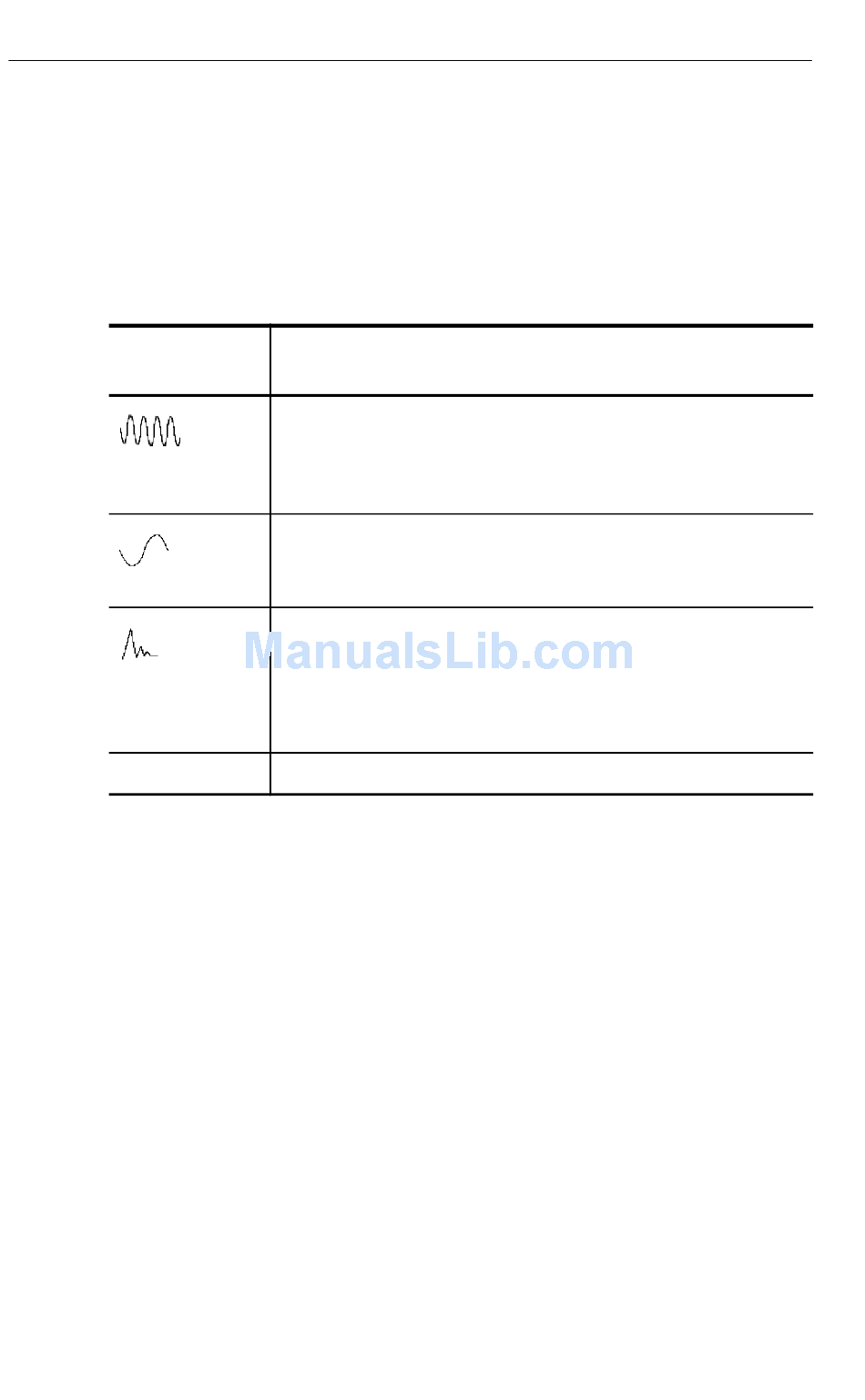

Sine wave
options
Multi-cycle sine
Single-cycle sine
FFT
Undo Autoset
9- 12
Details
Displays several cycles with appropriate vertical and
horizontal scaling; the oscilloscope displays Cycle RMS,
Frequency, Period, and Peak-to-Peak automatic measure-
ments
Sets the horizontal scale to display about one cycle of the
waveform; the oscilloscope displays Mean, and Peak-to-
Peak automatic measurements
Converts the input time-domain signal into its frequency
components and displays the result as a graph of frequency
versus magnitude (spectrum); since this is a mathematical
calculation, refer to the Math FFT chapter on page 5--1 for
more information
Causes the oscilloscope to recall the previous setup
TPS2000 Series Digital Oscilloscope User Manual
