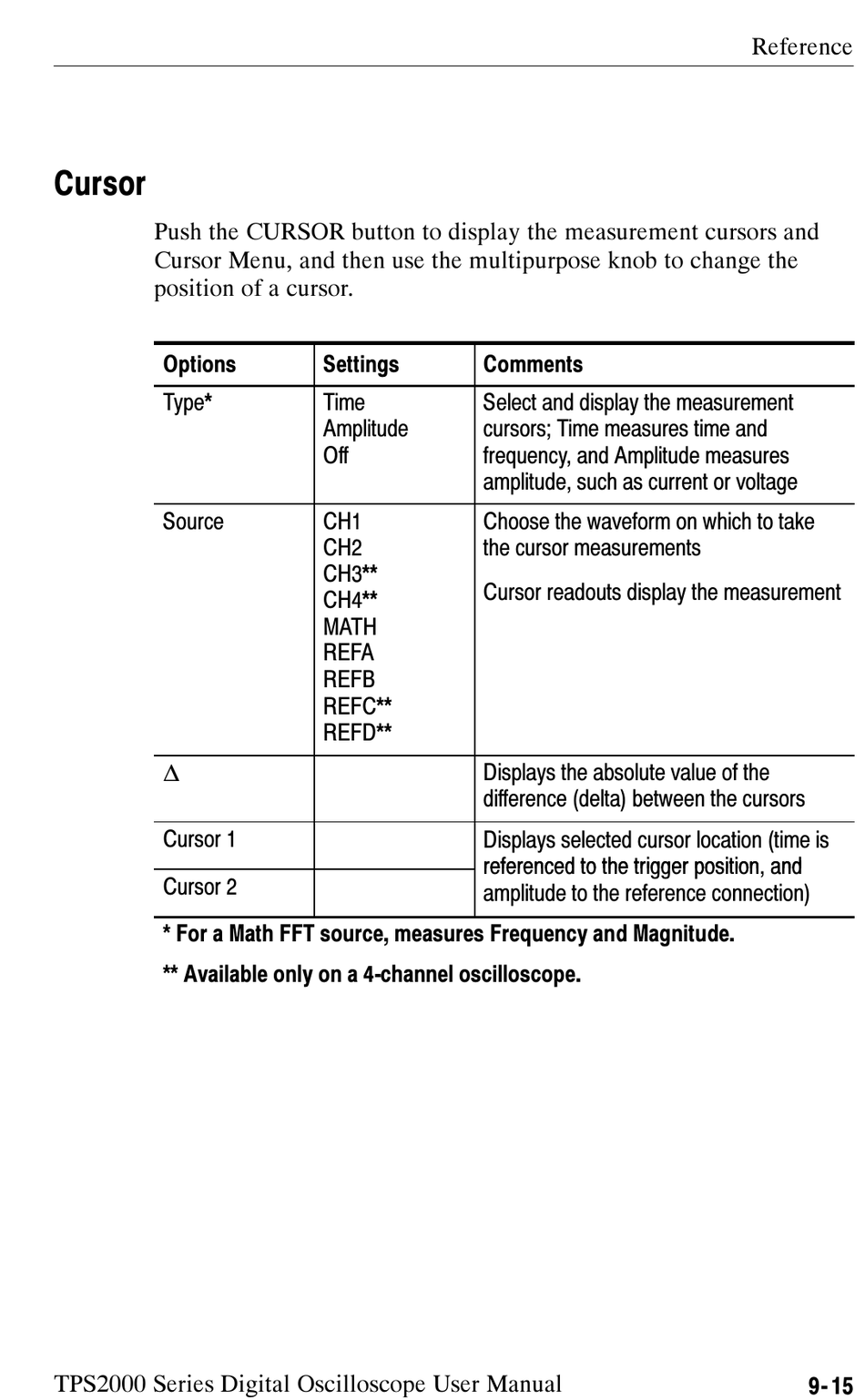

Cursor

Push the CURSOR button to display the measurement cursors and
Cursor Menu, and then use the multipurpose knob to change the
position of a cursor.
Options
Type*
Source
∆

Cursor 1

Cursor 2
* For a Math FFT source, measures Frequency and Magnitude.
** Available only on a 4-channel oscilloscope.
TPS2000 Series Digital Oscilloscope User Manual
Settings Comments
Time Select and display the measurement
Amplitude cursors; Time measures time and
Off frequency, and Amplitude measures
amplitude, such as current or voltage
CH1 Choose the waveform on which to take
CH2 the cursor measurements
CH3**
Cursor readouts display the measurement
CH4**
MATH
REFA
REFB
REFC**
REFD**
Displays the absolute value of the
difference (delta) between the cursors
Displays selected cursor location (time is
referenced to the trigger position, and referenced to the trigger position and
amplitude to the reference connection)
Reference
9- 15
