Using the Window Function to See Waveform Details

You can use the window (zoom) function to examine a specific
portion of a waveform without changing the main display.
If you want to view the color burst in the previous waveform in more
detail without changing the main display, follow these steps:
1. Push the HORIZ MENU button to see the Horizontal Menu and
select the Main option.
2. Push the Window Zone option button.
3. Turn the SEC/DIV knob and select 500 ns. This will be the
SEC/DIV setting of the expanded view.

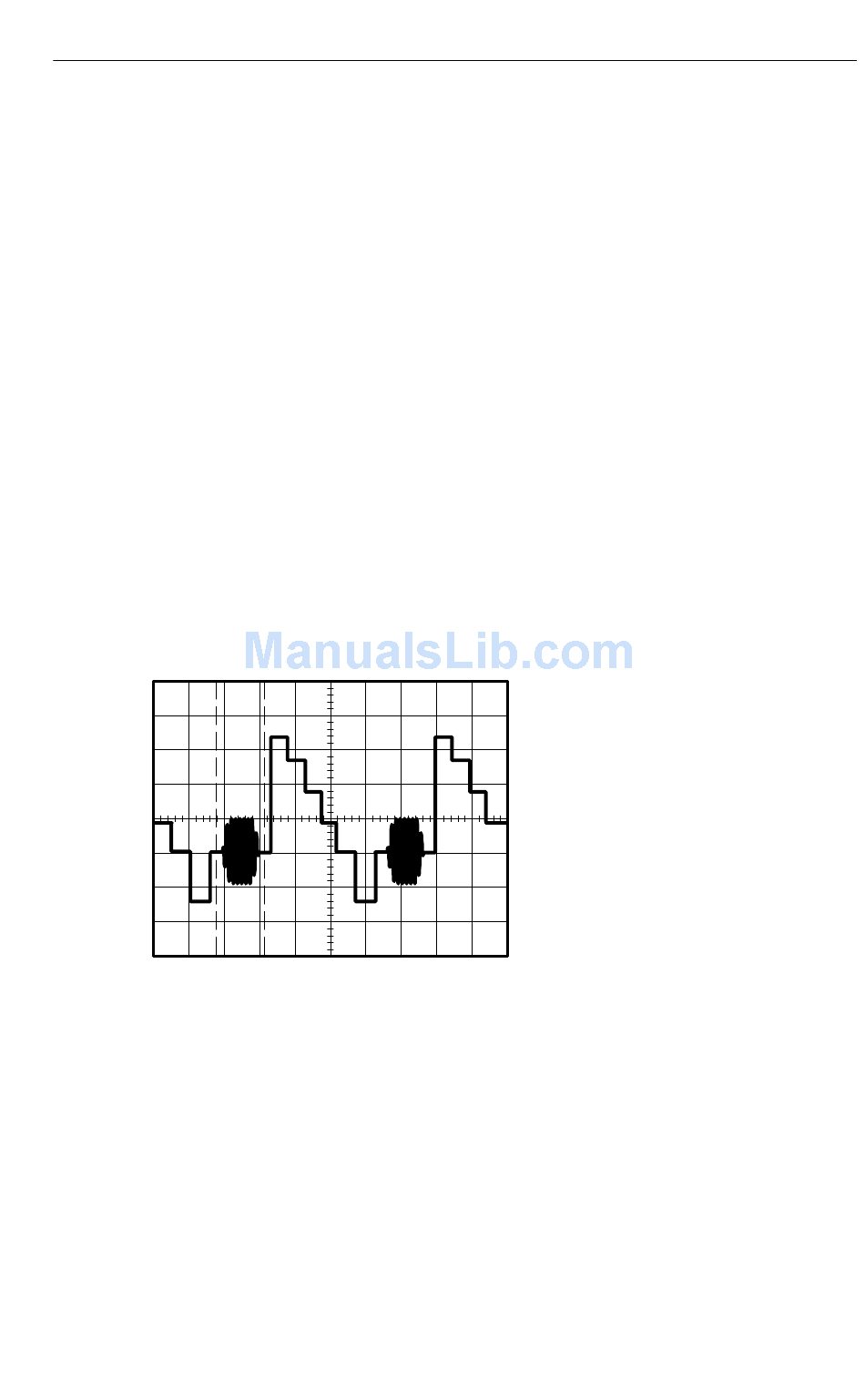

4. Turn the HORIZONTAL POSITION knob to position the
window around the portion of the waveform that you want to
expand.
