Application Examples

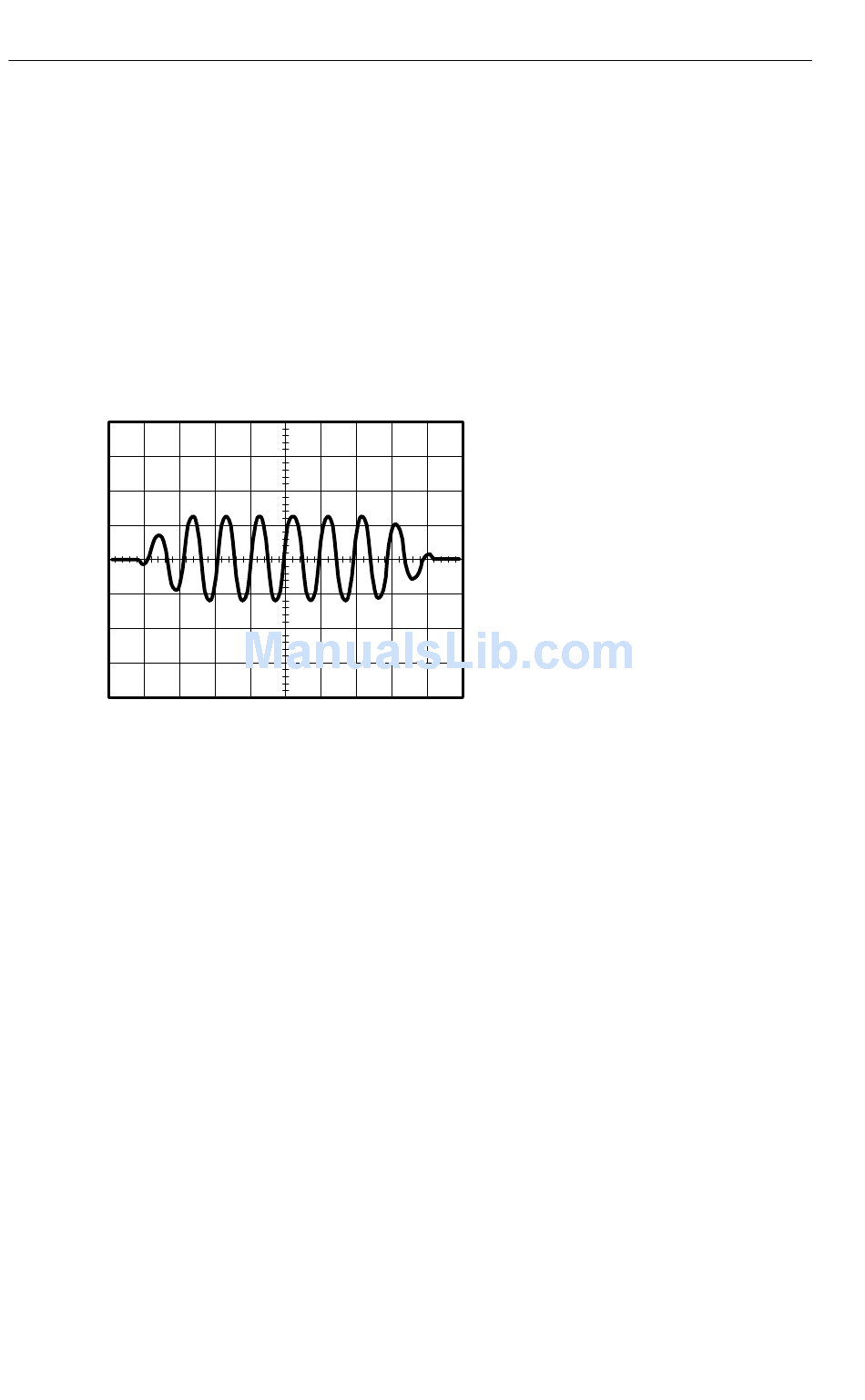

5. Push the Window option button to see the expanded portion of
the waveform.
6. Turn the SEC/DIV knob to optimize viewing the expanded
waveform.
To switch between the Main and Window views, push the Main
or Window option button in the Horizontal Menu.

Viewing Impedance Changes in a Network

You have designed a circuit that needs to operate over a wide
temperature range. You need to evaluate the change in impedance of
the circuit as the ambient temperature is changed.
4- 32
TPS2000 Series Digital Oscilloscope User Manual
