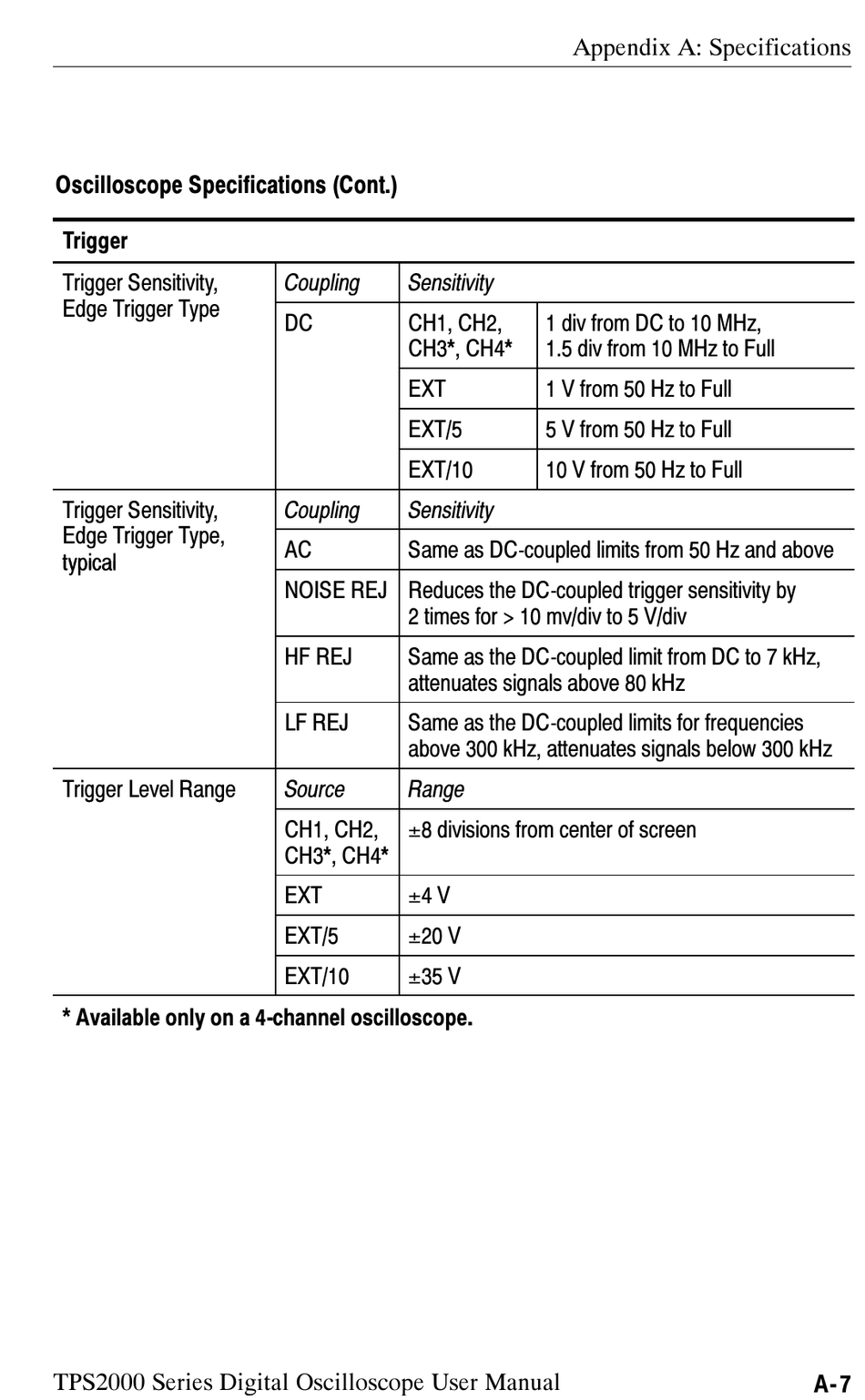

Oscilloscope Specifications (Cont.)
Trigger
Trigger Sensitivity,
gg
y,
Edge Trigger Type
Ed
T i
T
Trigger Sensitivity,
gg
y,
Ed
Edge Trigger Type,
T i
T
typical
typical
Trigger Level Range
gg
g
* Available only on a 4-channel oscilloscope .
TPS2000 Series Digital Oscilloscope User Manual
Coupling
Sensitivity
DC
CH1, CH2,
CH3*, CH4*
EXT
EXT/5
EXT/10
Coupling
Sensitivity
AC
Same as DC-coupled limits from 50 Hz and above
NOISE REJ Reduces the DC-coupled trigger sensitivity by
2 times for > 10 mv/div to 5 V/div
HF REJ
Same as the DC-coupled limit from DC to 7 kHz,
attenuates signals above 80 kHz
LF REJ
Same as the DC-coupled limits for frequencies
above 300 kHz, attenuates signals below 300 kHz
Source
Range
±8 divisions from center of screen
CH1, CH2,
CH3*, CH4*
±4 V
EXT
±20 V
EXT/5
±35 V
EXT/10
Appendix A: Specifications
1 div from DC to 10 MHz,
1.5 div from 10 MHz to Full
1 V from 50 Hz to Full
5 V from 50 Hz to Full
10 V from 50 Hz to Full
A- 7
