Removable Mass Storage
The oscilloscope accommodates a Type 1 CompactFlash (CF) card
for removable mass storage. The oscilloscope can save data to and
retrieve data from the CF card.

Installing and Removing a CompactFlash (CF) Card

The front of the oscilloscope has a Type 1 CF card slot.
To install a CF card, follow these steps:
1. Align the card with the card slot on the oscilloscope. Type1 cards
are keyed.
2. Insert the card into the slot until the card is flush with the front
panel. If the card does not easily slide into place, remove it and
reinsert it correctly.
TPS2000 Series Digital Oscilloscope User Manual

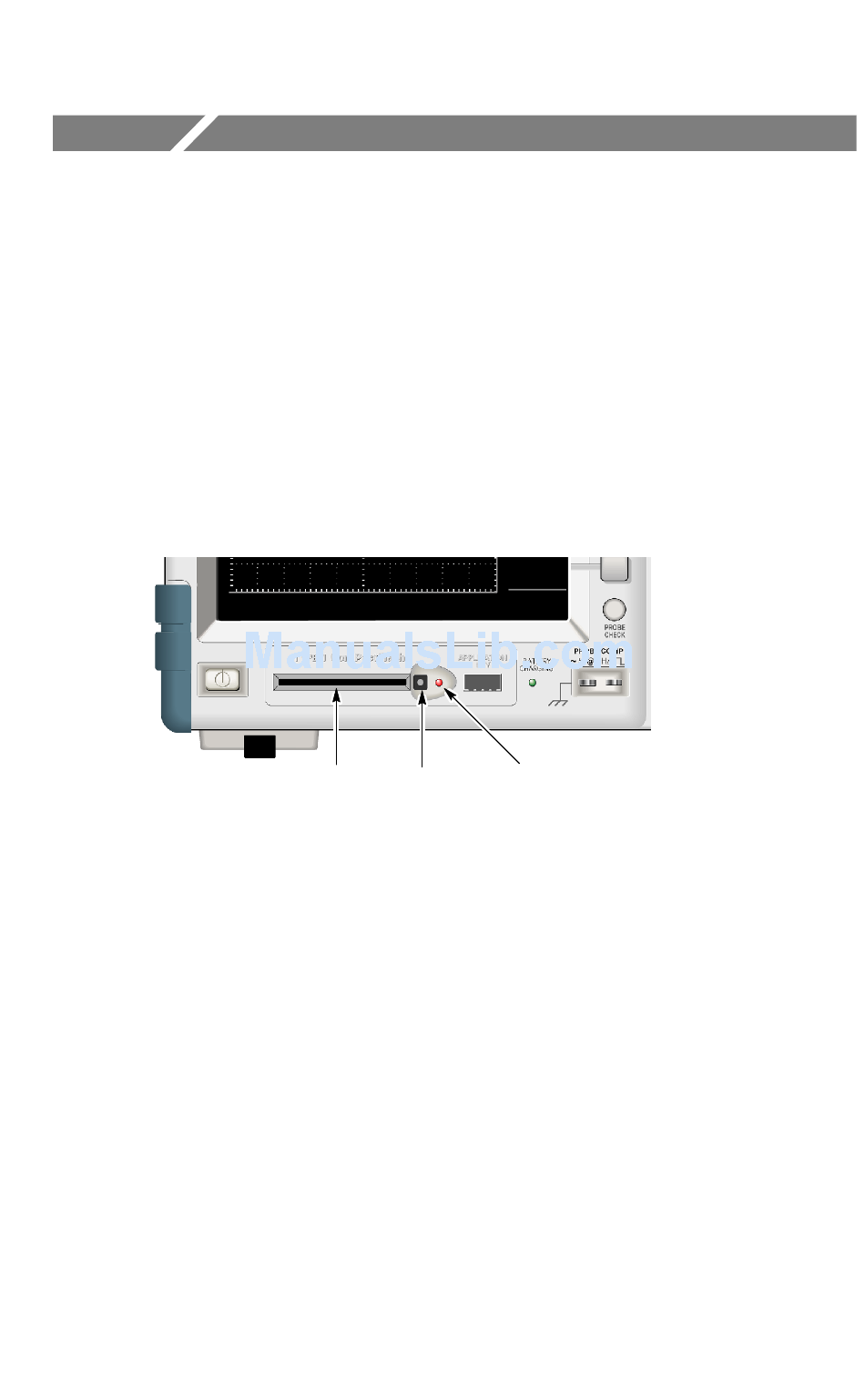

CompactFlash Eject button
card slot
LED lights when active
7- 1
