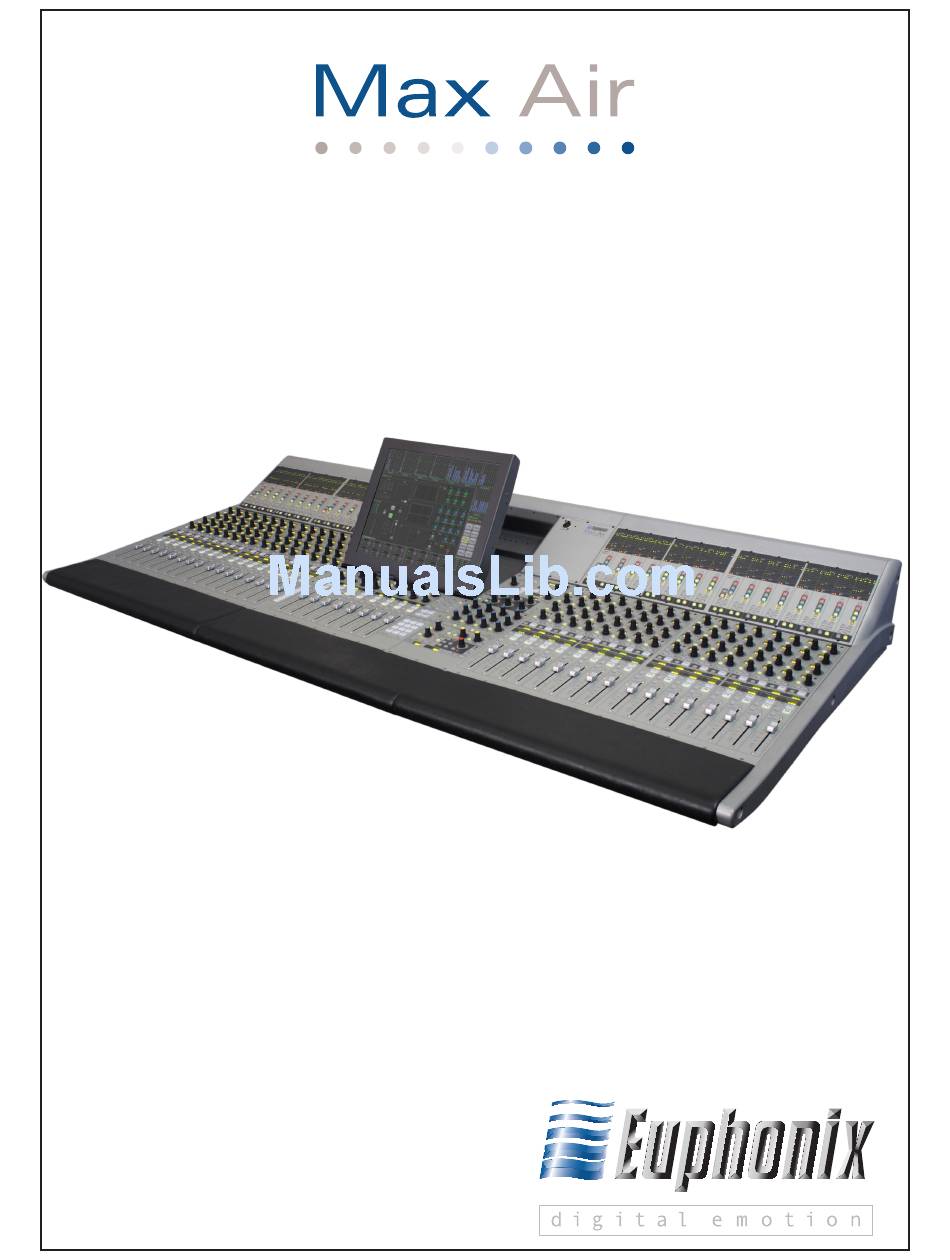

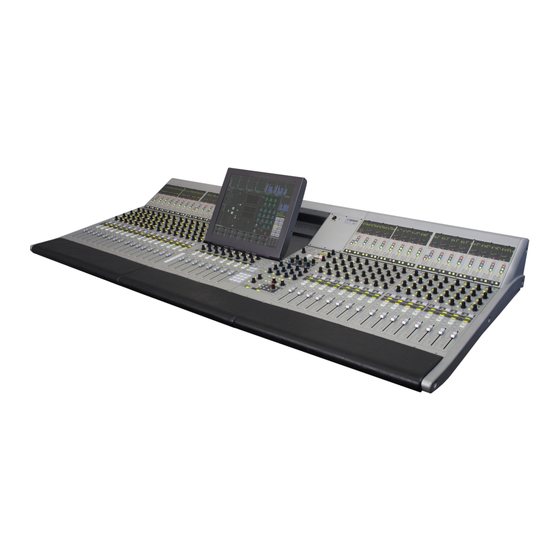

Page 1 Operation Manual Document Revision: 3.0 Software Version: 3.0 Part Number: 840-08718-06 Release Date: September 2007 Euphonix, Inc. 220 Portage Ave. Palo Alto, California 94306 Phone: 650-855-0400 Fax: 650-855-0410 Web: http://www.euphonix.com e-mail: info@euphonix.com...
Page 2 System 5, S5, PatchNet, eMix, EuCon, R1, Studio Hub, Audio Deck, Max Air, Reel Feel, Clear Displays, Track Panner, SnapShot Recall, DSC (Digital Studio Controller), Hyper-Surround, Total Automation and Mix View are trademarks of Euphonix, Inc.
Page 3 IMPORTANT SAFETY INSTRUCTIONS The lighting flash with arrowhead symbol within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electrical shock to persons. The exclamation point within an equilateral triangle, is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.
Page 4 Unplug this apparatus during lightning storms or when unused for long periods of time. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
Page 5: Table Of Contents
Euphonix Max Air Mixing Console Operation Manual Table of Contents List of Figures viii Chapter 1: Introduction How to Use This Manual Overview of the System Components 1.2.1 DF66 SuperCore 1.2.2 Analog and Digital I/O 1.2.3 Control Surface Additional Hardware Components Max Air Startup Sequence Chapter 2: New Features in Version 3.0...
Page 6 Euphonix Max Air Mixing Console Operation Manual 3.6.1 Creating a Custom Knobset for Mono Channels 3.6.2 Creating a Custom Knobset for Stereo Channels External Device Setup 3.7.1 Patching External Devices into the External Inputs 3.7.2 Assign External Inputs a Format and a Button...
Page 7 Euphonix Max Air Mixing Console Operation Manual 4.7.2 Control Groups Surface 4.8.1 Assign 4.8.2 Layouts and Snapshots 4.8.3 Spill Area 4.8.4 Lock Strips 4.8.5 Fader Unity Status 4.10 Super Channel 4.10.1 Process Order 4.10.2 Main and Group Bus Routing 4.11 Meters 4.11.1 Presets...
Page 8 Euphonix Max Air Mixing Console Operation Manual Channel Processing Functions 5.3.1 Inputs 5.3.2 Dynamics 5.3.3 EQ 5.3.4 Filters 5.3.5 Pan 5.3.6 Aux Busses Channel Processor Order and Patch Points 5.4.1 Channel Processor Order 5.4.2 Insert Point Channel Routing Functions 5.5.1 Group Bus Routing 5.5.2 Main Bus Routing...
Page 9 Euphonix Max Air Mixing Console Operation Manual 6.6.1 Main Section Masters 6.6.2 Group and Aux Bus Masters 6.6.3 Bus Inserts Bus Processing Chapter 7: Center Section Super Channel 7.1.1 Assign a Channel to the Super Channel 7.1.2 Input Section 7.1.3 Pan 7.1.4 Filters...
Page 10 Euphonix Max Air Mixing Console Operation Manual Keypad Global Functions 7.10 Custom Keys Chapter 8: Control Groups and Multi Format Masters Control Groups 8.1.1 Create a Control Group 8.1.2 Assign Control Group Master to Strip Multi Format Master Channels 8.2.1 Create a Multi Format Master Channel...
Page 11 Euphonix Max Air Mixing Console Operation Manual Chapter 11: Event System 11.1 Input Types 11.2 Output Types 11.3 Logical Operators 11.4 Event Configuration Display 11.5 Event List 11.6 Input 11.7 Output 11.8 Deleting Events 11.9 Event Trigger on Title Load 11.10 GPI Examples...
Page 12 Euphonix Max Air Mixing Console Operation Manual...
Page 13: List Of Figures
Projects View Titles View Save Current Data Popup Current Title Buttons 4-10 Simplified MADI routing diagram 4-11 Sources and Destinations with respect to Max Air 4-12 Console I/O -A and B Inputs View 4-13 Sources and Destinations Selected 4-14 Patch Complete...
Page 14 Euphonix Max Air Mixing Console Operation Manual 4-27 Mixer Model View 4-28 Preferences View 4-29 Channels Tabs 4-31 Assign View 4-32 Spill Area function 4-33 Lock Strips View 4-34 Fader Unity popup 4-35 Status View 4-36 Super Channel View 4-37...
Page 15 Euphonix Max Air Mixing Console Operation Manual 5-15 Channel processor order and patch points 5-16 Group Bus Routing Knobsets 5-17 Main Section Routing Knobset 5-18 Mix Minus Processing Main Bus View Group Bus View Format Selector Aux Bus Settings View...
Page 16 Euphonix Max Air Mixing Console Operation Manual 7-19 Solo Safe Popup 7-20 CM404 Soft Knobs 7-21 Soft Knobs Setup Popup 7-22 CM404 Center Section Faders 7-23 CM404 Keypad 7-24 Keypad Directory Popup 7-25 Global Function Keys 7-26 Custom Keys Control Groups View...
Page 17: Chapter 1: Introduction
We recognize the diverse range of experience among our customers and have written and organized the manual to be accessible to everyone. Of course it is more fun to use Max Air than read about it but we assure you that your time reading this manual will be well spent.
Page 18 The Acrobat PDF version of this manual provided in your system can be a valuable “on- line help” learning tool while using Max Air. We have included some amenities that we wish to explain for those not familiar with Acrobat: •...
Page 19: Overview Of The System Components
MADI format through analog and digital convert- ers. The basic Max Air system includes eight MADI Inputs and seven Outputs to con- nect I/O devices. Additional MADI ports can be added by expanding the system with up to six SP662 DSP cards.
Page 20: Typical Max Air Hardware Configuration
Typical Max Air Configuration Control 107 Full Channel Signal Paths MADI Inputs: 112 Digital, 24 Mic, 24 Line = 160 Analog Audio Ouputs: 112 Digital, 24 Line = 136 Digital Audio Figure 1-1 Typical Max Air Hardware Configuration (Modular I/O not shown)
Page 21: Control Surface
DF64 via ethernet and the EuCon Hub; audio does not pass through the control surface. The Max Air control surface consists of a CM404 center section with Touchscreen (1), Super Channel (4), Soft Knobs (2) and 8 center section faders (3). The channel strips (5), of which there can be a total of 48 (3 CM416 modules), contain a function select area (6), four assignable knobs (7) and a fader (8).
Page 22: Additional Hardware Components
A Channel performs all of the signal processing (EQ, dynamics, routing, gain, etc.). Max Air has 96 channels, each of which may be assigned to a Strip. A Strip has room for Swap and Main channels that can be switched with one button press.
Page 23: Max Air Startup Sequence
Max Air icon on the desktop. Turn on the DF66. If the modules on the system have previously been saved as default, Max Air will continue to boot when all modules reach 100%. Unexpected, the user can select all of the modules by holding If modules appear as down the Ctrl key on the keyboard and selecting each of them.
Page 24 Euphonix Max Air Mixing Console Operation Manual Introduction...
Page 25: Chapter 2: New Features In Version
Euphonix Max Air Mixing Console Operation Manual Chapter 2: New Features in Version 3.0 Scene Automation Scene Automation allows the manual triggering of a single snapshot, or a sequence of snapshots. Cross-fading to a scene can be programmed by setting fader/knob glide times.
Page 26 56 outputs can be achieved on a single MADI I/O. Audio formats supported are remote- controlled preamp, line level analog, AES/EBU, and HD/SD embedder/de-embedder. These formats can be used simultaneously in the same frame. Refer to the Euphonix Modular Configuration Guide for more details and configuration possibilities.
Page 27: Chapter 3: Quickstart To Common Tasks
Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks Chapter 3: Quickstart to Common Tasks Since this chapter depends on using the Touchscreen, please read page 45–48 to acquire introductory knowledge before beginning. Create a Title We will begin by creating a Title that allows you to save console and patch settings for later recall.
Page 28: Initial Router And Patchbay Setup
Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks Initial Router and Patchbay Setup Max Air has an internal router that acts as a digital patchbay, allowing connection to Sources, Console I/O and Destinations. 24 Line AM713 USED...
Page 29: Assigning The Mic Preamps To Hubs
Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks Select Frame1-2 and touch Rename Port. Type Analog 1-24. Frame1-3 and touch Rename Port. Type Digital In 1. Select Select Frame1-4 and touch Rename Port. Type Digital In 2.
Page 30: Label Individual Signals
Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks 3.2.3 Label Individual Signals From the Patch view: Sources tab. Select the Select Mic Line 1 from the list on the left. Select Rename Port and enter Mic 1-24 using the keyboard popup.
Page 31: Channel To Strip Layout
This is the preferred way of making “Stereo” (or two-channel) channels on the Max Air system. By placing two logical channels under control of a MF Master, you are in effect making a “Stereo Channel” with all functionality that a Stereo Channel needs: Balance Control, Left-to-Mono/Right-to-Mono/Both-to-Mono, a Stereo EQ, true Stereo-linked Dynamics, and stereo metering.
Page 32: Assign Channels To Strips
Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks The eight boxes below show the channels controlled by this format (two for stereo, L and R). In the list of logical channels to the left, press the arrows to display the third page (channels 33–48).
Page 33: Busses
3.4.1 Create Main Sections and Audio Subgroups Max Air has 24 individual Main busses that can be grouped into 16 sections labeled A–H and J–U (I, L, M, N, and O have been omitted to avoid being confused with similar characters or numbers).
Page 34 Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks Touch Set Format to make busses 1 and 2 into a stereo pair assigned to Main sec- tion A. The Main Section Master Level control can be mapped to the Soft Knobs just below the screen by pressing the Main Masters key just below the screen in the Soft Knobs section.
Page 35 Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks Placing Main Busses on the Center Section (CM404) Press the Surface button on the right side of the touch screen and select the “as- sign” tab. In the upper block, select the Main Sections tab to display the Main/ Mix busses.
Page 36: Route To The Main Sections And Busses
3.4.3 Using the 24 Group Busses Max Air includes up to 24 Group busses. These are very useful for additional clean feeds or extra stereo outputs. As an example we could use Groups 1 and 2 as a stereo foldback output.
Page 37: Meters
Meters from the Main Menu. Select the Fader tab. This view shows all available Strips on your Max Air Console. Select All, then choose Fader in the Meter Display area to the right to en- Touch able the meter next to each fader on the Strips.
Page 38: External Meters Display
There are three display modes for the External Meters Display: None -- only displays the Max Air logo. 3 Rows -- displays three 7-bank rows of meters 4 Rows -- displays four 7-bank rows of meters To set up the External Meters Display, select Meters from the Main Menu.
Page 39: Knobsets
Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks Knobsets Knobsets allow users to customize the four rotary controls on the surface to suit their in- dividual requirements. There are six buttons at the top of each strip (Pan, Filt, EQ, Dyn, Inp and *) that determine which parameters the knobset controls.
Page 40: Creating A Custom Knobset For Stereo Channels
Repeat for the other knobset positions choosing Aux 1 and Aux 2. External Device Setup Max Air includes up to 32 external inputs that can be directly monitored at the touch of a button. These individual inputs need to be grouped together, assigned a format, named and attached to External Device buttons to match the external sources (i.e., Off Air Ste-...
Page 41: Assign External Inputs A Format And A Button
5.1 format to device button 2. NOTE: Regarding 5.1 formatting: Euphonix’ 5.1 formatting follows the post produc- tion convention of L, C, R, SL, SR, and B (or LFE). If you choose to have the...
Page 42: Monitors
Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks Monitors Setting up the monitors is the final step to getting sound to the speakers. Note that only certain monitor outputs can handle surround outputs. Externals Main Sections Aux Snds Main 8 Out (max 7.1)
Page 43: Save A Default Title
Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks Save a Default Title Once you have completed this setup process, you should save this Title. File menu button and select the Title tab. Touch the Save button in the Current Title box to save all the changes you have Touch the made.
Page 44 Euphonix Max Air Mixing Console Operations Manual Quickstart to Common Tasks...
Page 45: Chapter 4: Touchscreen
Touchscreen Introduction to the Touchscreen The Max Air Touchscreen allows you to touch items on the screen that you would nor- mally click with a mouse. The software can still be operated with a mouse and keyboard but we will confine our instructions to the “touch” interface because most users are un- familiar with it.
Page 46: Touchscreen Main Menu Buttons
Euphonix Max Air Mixing Console Operation Manual Touchscreen The Max Air Touchscreen application has 10 Main Menu buttons along the right side of the screen that access its functions: Figure 4-2 Touchscreen Main Menu Buttons • File: file management •...
Page 47: Touchscreen Main View
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-3 Touchscreen Main View Four important types of information are displayed on the Touchscreen: • Permanent Display : Consists of the Soft Knobs Display (3), the Main Menu but- tons (5), a Keypad Function Viewer (6) and a display of the current Title and Time of Day Clock (4).
Page 48: Touchscreen Navigation
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-4 Touchscreen Navigation Views are selected from the Main Menu buttons on the right side of the screen (1). Sev- eral views have multiple sub-views accessed by tabs (2). Within a view, Ranges Tabs (3)
Page 49: File
Touchscreen File Select the File button to navigate the Max Air file system. Three tabs along the bottom of the view list the main subjects: Drives, Projects, and Titles. The order of these tabs also represents their hierarchy (i.e., a Title is within a Project located on a Drive). File operations are almost identical to those in Windows or the Macintosh, where a “drive”...
Page 50: Projects View
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-6 Projects View Create a New Project Touch the New button in the Selection area along the right side of the Projects View. Type a name in the view that appears and touch Enter.
Page 51: Titles
Euphonix Max Air Mixing Console Operation Manual Touchscreen Select a Project from the Projects View. • Touch the Copy button to copy the selected Project. The Paste button remains dim until the Copy button is used. Note that you cannot copy a project to a CD-RW or CD-R drive from the application.
Page 52: Operations On The Current Title
Euphonix Max Air Mixing Console Operation Manual Touchscreen Create New Title Touch the New button in the Selection area along the right side of the Titles View. Type the Title name in the New Title Name View that appears. Touch Enter to complete the process or Cancel to exit without creating the Title.
Page 53: Default Titles
Euphonix Max Air Mixing Console Operation Manual Touchscreen pears with the current Title’s name in the edit box. Touch Enter to save changes to the current Title. Save a copy under a different name by typing a new name. The new Title becomes the currently open Title.
Page 54: Patch
The Euphononix FC727 and FC726 provide 56 channels of digital format conver- sion. • The Euphonix Modular I/O provides up to 56 mixed-format (see page 26) channel inputs and outputs. Some equipment, such as the Euphonix R-1, the Sony 3348HR recorder, DAW’s and some high end consoles, offer a MADI interface.
Page 55: Destinations And Sources
Euphonix Max Air Mixing Console Operation Manual Touchscreen Max Air must be initially setup so that all the studio equipment is displayed and cor- rectly labelled and normalled ready for a session. This basic wiring information is stored in the Default Title so these settings can be used when starting a new session with a new Title.
Page 56: Console I/O -A And B Inputs View
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-12 Console I/O -A and B Inputs View The four buttons (5 in Figure 4-12) on the lower-right perform the following functions: • Patch Selected : Patches selected patchpoints (3 in Figure 4-12) An error message appears if the sources are not properly matched to the destina- tions.
Page 57: Sources And Destinations Selected
Euphonix Max Air Mixing Console Operation Manual Touchscreen To complete this Patch example: Select the Sources tab (1 in Figure 4-13). Touch and drag through the first five cells in the Frame 1-1 column (2 in Figure 4-13). Note that these names appear in the Sources column of the Selected Sources and Destinations area next to their counterparts in the Destinations column (3 in in Figure 4-13).
Page 58: Patch Complete
Touchscreen Figure 4-14 Patch Complete Router Mnemonics Max Air supports importing router mnemonics to name channels. See page 72 to enable this feature in Preferences. NOTE: This function will only work as described if the console has been integrated with the router system as described in the Max Air Installation Guide.
Page 59: Source Input Naming
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-15 Source input naming The channel displays on the console surface are updated as the names associated with the sources patched to the channels are changed and sent from the router.
Page 60: Cabling
4 to 32 preamp channels. Mic/Line Interface Patching For mic inputs and analog inputs not at +4 dB, the Euphonix ML530 provides 24 preamps each with gain, phantom power, high-pass filter, and hiz/loz switching. The ML530’s analog outputs are connected to an AM713 Analog to MADI converter which then con- nects to one of the MADI inputs.
Page 61: Cabling: Madi Out Port
Euphonix Max Air Mixing Console Operation Manual Touchscreen Select the Cabling tab (1 in Figure 4-17). MADI Out Ports sub-category (2 in Figure 4-17). Select the The list shows seven Mic/Line Interfaces but configure only those wired to the DF66 (i.e., Mic1 and Mic2).
Page 62: Cabling: Madi In Port
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-18 Cabling: MADI In Port Patch Selected button (4 in Figure 4-18) to make the patch. Touch the The Patch system now knows how the two mic/line interfaces are connected so the proper input controls appear at the top of the channels they are connected to.
Page 63: Patching Examples
Euphonix Max Air Mixing Console Operation Manual Touchscreen Patching Examples These examples assume that the steps in Mic/Line Interface Patching on page 58 have been successfully completed. 4.4.1 Patch 12 Mics Into Channels 25–36 Select the Sources Select the Sources tab (1 in Figure 4-19).
Page 64 Euphonix Max Air Mixing Console Operation Manual Touchscreen Select the Destinations There can be: • one source to one destination; • an equal number of sources to destinations; • one source to multiple destinations. Multiple sources cannot be routed to one destination.
Page 65: Selecting Destination Channels
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-20 Selecting Destination Channels Patch Selected button (5 in Figure 4-20) to make the connection. Click the The sources and destinations appear in the A Input and Name columns, respec- tively (1 in Figure 4-21). The sources and destinations are cleared from the Se- lected Sources and Destinations area (2 in Figure 4-21).
Page 66: Sources Selected
Euphonix Max Air Mixing Console Operation Manual Touchscreen Patch the Multitrack Returns Into Channels 1–24 Select the Sources tab (1 in Figure 4-22). Select the Frame1-3 sub-category (2 in Figure 4-22). Touch and drag through the first 24 cells in Frame1-3 column (3 in Figure 4-22).
Page 67: Main Bus Send/Return
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-23 R-1 and Mics Patched 4.4.2 Main Bus Send/Return Select the Console I/O category and then select the Main Busses sub-category. Each Main bus has a send and return. Figure 4-24 shows the first six sends (a 5.1-channel Main section) routed to channels 41–46 A inputs.
Page 68: Monitor Patching
Euphonix Max Air Mixing Console Operation Manual Touchscreen For every Main section, there is a corresponding return in the same format, which allows patching the Main section recorder output back into the console. The Main section return can be routed to the monitors from the Main Section page in the CR Source Panel (see Control Room on page 129).
Page 69: Busses
Euphonix Max Air Mixing Console Operation Manual Touchscreen Busses See Chapter 6: Busses. System The System View has five tabs: Externals, *Knobset, Mixer Model, Preferences, and About. 4.6.1 Externals Select the Externals tab from the System View to configure the Externals in the same way as Main and Group busses.
Page 70: Knobset
Euphonix Max Air Mixing Console Operation Manual Touchscreen 4.6.2 *Knobset Select the *Knobset tab from the System View. The *Knobset View allows a custom- ized set of 16 knob parameters to be displayed on the Strip when the channel’s * key is pressed at the top of the Strip.
Page 71: Mixer Model
Mixer Models: DF66, DF 64 with a Studio Hub, and a DF64 without a Studio Hub. To activate a different Mixer Model, touch the Max Air Models button on the left of Figure 4-27. The two Mixer Models are displayed in the area below. Select the desired Mixer Model and touch the Activate button.
Page 72: Preferences
Euphonix Max Air Mixing Console Operation Manual Touchscreen 4.6.4 Preferences Select the Preferences tab from the System View. Figure 4-28 Preferences View Knob Text Display Mode The Knob Text Display Mode buttons intercancel between three values: • Show value when touched, name otherwise : Displays the value of the knob pa- rameter when touched and reverts to the name afterwards.
Page 73: About
Euphonix Max Air Mixing Console Operation Manual Touchscreen Safety The Safety section includes two buttons that can be set independently: • Bus Lock : Disables the following functions when activated: Bus Levels (Main Master, Master Trims, and Leg Trims), Bus Inserts, Bus On/Off keys.
Page 74: Channels
Euphonix Max Air Mixing Console Operation Manual Touchscreen Channels Select Channels from the Main Menu buttons. There are seven views that are accessed by tabs along the bottom of the screen. Figure 4-29 Channels Tabs 4.7.1 Multi Format Masters See Chapter 8: Control Groups and Multi Format Masters.
Page 75: Assign View
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-31 Assign View Select the channels to assign by touching them individually, touching and dragging through a continuous set, or by using the three utility buttons (Select All, Select None, Select Range) on the bottom-left of the Assign View (see below for a discussion of these buttons).
Page 76: Layouts And Snapshots
Euphonix Max Air Mixing Console Operation Manual Touchscreen Select All Use the Select All button to select all channels across all tabs (1–48, 49–96, Grp Mas- ters, and MF Masters). Select None Use the Select None button to deselect all selected channels.
Page 77: Lock Strips
Euphonix Max Air Mixing Console Operation Manual Touchscreen 4.8.4 Lock Strips Select the Lock Strips tab to display the Lock Strips View (Figure 4-33), which pro- vides the ability to prevent strips from being affected by Layout recall. Figure 4-33 Lock Strips View Select one or more Strips to lock.
Page 78: Status
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-34 Fader Unity popup Select Strip View or Channel View to view strips or channels, respectively. Select one or more Strips or channels to set to unity gain. Use the Main, Swap, and Center tabs to select the strip/channel type.
Page 79: Status View
“traceLogX.txt”, where “X” is an incremental number coinciding with each opening of the Max Air application. In a Max Air system with a backup DF66 SuperCore, turning the Auto Failover button on will enable an automatic switchover to the backup DF66 if the diagnostics system detects a fault in the primary DF66.
Page 80: Super Channel
Euphonix Max Air Mixing Console Operation Manual Touchscreen 4.10 Super Channel The Super Channel provides a way to view and edit the most important functions of a channel. Select the Super Channel Main Menu button to display the settings of the channel currently assigned to the Super Channel.
Page 81: Process Order
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-37 Channel Selector Popup Select the Strip View button to assign the Main or Swap channel on a Strip to the Super Channel. Select the Channel View button to assign any channel, Group Master, or Multi Format Master to the Super Channel by selecting the 1–48, 49–96, Grp Masters, or MF...
Page 82: Main And Group Bus Routing
Euphonix Max Air Mixing Console Operation Manual Touchscreen Select the desired Processes button and then touch one of the Positions buttons to as- sign that process to the position pointed to by the arrow. The processes move left or right depending on the position vacated relative to the new position selected.
Page 83: Meters
Euphonix Max Air Mixing Console Operation Manual Touchscreen 4.11 Meters Select the Meters Main Menu button to display the Meters View. There are four tabs along the bottom: Presets, Screen, Fader, and Setup. 4.11.1 Presets After configuring the meters using the Screen, Fader, and Setup tabs discussed below, the configuration can be captured as a preset, named and recalled for later use.
Page 84: Screen
Euphonix Max Air Mixing Console Operation Manual Touchscreen 4.11.2 Screen Select the Screen tab to configure the meters that will appear across the top and right side of the Touchscreen. There are eight meter banks, each of which can contain up to eight channels.
Page 85: Meters-Screen=Ext1 Popup With Meters Display
Euphonix Max Air Mixing Console Operation Manual Touchscreen Ext1, Ext2, Ext3, Ext4 Select the Ext1, Ext2, Ext3, or Ext4 tabs to configure the meters that will appear on the optional External Meters Display. Figure 4-42 Meters-Screen=Ext1 Popup with Meters Display In Figure 4-42, Ext1, which is the top meter bank row of the External Meters Display, is configured to display channels 49 to 96, and group busses 1 to 8.
Page 86: External Meters Display, Fully Configured
Euphonix Max Air Mixing Console Operation Manual Touchscreen Figure 4-43 External Meters Display, fully configured...
Page 87: Fader
Euphonix Max Air Mixing Console Operation Manual Touchscreen 4.11.3 Fader Select the Fader tab to display the Meters-Fader View. This configures the meter display next to the fader (Figure 4-44). Figure 4-44 Meters-Fader Popup Select a Strip button from the Strips section. Use the Main or Center tabs and the Select All, Select None, Select Range to assist your selection (page 75).
Page 88: Setup
Euphonix Max Air Mixing Console Operation Manual Touchscreen 4.11.4 Setup Select the Setup button to display the Meters-Setup View, which determines the meter ballistics for all currently displayed meters. Select Peak or Average to display the de- sired meter ballistics.
Page 89: Chapter 5: Channels And Strips
A Channel performs all of the signal processing (EQ, dynamics, routing, gain, etc.). Max Air has up to 194 channels, each of which may be assigned to a strip. A strip has room for Swap and Main channels that can be switched with one key press.
Page 90: Console Strip And Bus Display With Block Diagrams For Main And Swap Channels
Euphonix Max Air Mixing Console Operation Manual Channels and Strips Group 1 1 2 2 3 3 4 4 5 5 6 6 7 7 8 8 9 9 10 10 11 11 12 12 13 13 14 14 15...
Page 91: Assign Channels To Strips
Euphonix Max Air Mixing Console Operation Manual Channels and Strips 5.1.1 Assign Channels to Strips Each strip can control a Main and Swap channel. One or both of the channels can be a Control Group Master or Multi Format Master instead of a normal channel (see Chapter 8: Control Groups and Multi Format Masters).
Page 92 Euphonix Max Air Mixing Console Operation Manual Channels and Strips Assign Multiple Channels Use the following procedure to assign multiple, consecutive channels to the console surface: In the Surface Assign View, select Select Range. Select the first and last channel of a range of channels from the Channels bank.
Page 93: Channel Control Features
Euphonix Max Air Mixing Console Operation Manual Channels and Strips Figure 5-3 Channel Selector Select the channel (1–48, 49–96, 97–144), Grp Master (Control Group Master), or MF Master (Multi Format Master) to assign to the strip. Channel Control Features 5.2.1...
Page 94: Fader
Euphonix Max Air Mixing Console Operation Manual Channels and Strips 5.2.2 Fader Cha n Select Solo Chan Select key Solo key Channel On Channel On key Select key Select Status LEDs M S L Fader select Select Wave Key Status LEDs...
Page 95: Meters
Channels and Strips Backstop PFL The Max Air faders have a backstop key past the bottom of their travel. Pull a fader back to route the channel’s PFL signal to the solo bus. Releasing the fader cancels that fader’s routing to the solo bus. Backstop PFL can be used on group masters to solo a control group.
Page 96: Channel Select Key
Euphonix Max Air Mixing Console Operation Manual Channels and Strips Channel On Select Key The Select key is used to include the channel On key in copy and clear operations. 5.2.7 Channel Select Key The Chan Select key is used: •...
Page 97: Knobset Select Keys
Euphonix Max Air Mixing Console Operation Manual Channels and Strips pages to a second knobset function, if it exists. Select Figure 5-6 Rotary Knob Controls 5.2.11 Knobset Select Keys The Input, Dynamics, EQ, Filters, Pan, Aux, and Routing functions can be assigned to a strip’s four rotary knobs by the Knobset Select keys above the knobs.
Page 98: In/Out Keys
There is one Expand key for each set of eight strips. Expand has not been implemented in v3.0 software. Channel Processing Functions Max Air provides flexible and complete processing functions for each channel: Input, Dynamics, EQ, Filters, Panning, Aux Busses and Routing. 5.3.1 Inputs Press the Ins/Inp Knobset Select key to display the input controls on the knobs.
Page 99 Euphonix Max Air Mixing Console Operation Manual Channels and Strips Analog Controls If an ML530 Mic/Line Interface or Modular I/O Remote Preamp is patched to the input, the knobs show the analog mic/line controls: • : Press the lower key to the left of the knob to toggle the input between high and low impedance.
Page 100: Stereo Input Knobsets
Euphonix Max Air Mixing Console Operation Manual Channels and Strips Stereo Controls There are two additional controls used for stereo channels (see Multi Format Master Channels on page 154). • Balance : Rotate the Bal knob left to hear more of the left channel; rotate right to hear more of their right channel.
Page 101: Dynamics
Euphonix Max Air Mixing Console Operation Manual Channels and Strips 5.3.2 Dynamics Each channels dynamics processor can be configured as a compressor/limiter or an ex- pander/gate. Press the Dyn Knobset Select key to assign Dynamics to the knobs. Page 1...
Page 102: Eq Knobsets
Euphonix Max Air Mixing Console Operation Manual Channels and Strips 5.3.3 Each channel has a four-band, parametric equalizer. Press the EQ Knobset Select key to display the EQ controls on the knobs. Page 1 Page 2 Select Select Select Select...
Page 103: Filters
Euphonix Max Air Mixing Console Operation Manual Channels and Strips 5.3.4 Filters Each channel has two filters with four filter types available: high-pass filter, low-pass filter, band-pass filter and a notch filter. Press the Filt Knobset Select key to display the Filter controls on the knobs.
Page 104: Pan
Channels and Strips 5.3.5 Max Air is not limited to a single pan format and one pan control per channel imposed by the traditional analog console. Max Air allows the following pan formats (also called pan laws): mono, stereo, LCRS, 5.1, 6.1, and 7.1. The limit is 32 multi-format main sec- tions each with up to eight busses.
Page 105 SmartPan The Max Air panner has an automatic function called SmartPan that prevents the disap- pearance of the audio signal during panning if some of that Main Section’s busses are not assigned. For example, if a channel is assigned to a 5.1 Main Section output but does not send anything to the center Main bus, SmartPan automatically uses a stereo pan law so the signal is still present when panned to the center.
Page 106: Aux Busses
Euphonix Max Air Mixing Console Operation Manual Channels and Strips 5.3.6 Aux Busses The CM404 Center Section has Bus Master functions. See page 118 to configure Aux busses as stereo pairs. Aux busses can be mono or stereo pairs. Each Aux bus can be configured as pre- or post- fader.
Page 107: Channel Processor Order And Patch Points
Euphonix Max Air Mixing Console Operation Manual Channels and Strips Channel Processor Order and Patch Points The seven channel processors can be placed in any order to suit different applications. The default order is Delay, Metering, Insert, EQ, Filters, Dynamics, and Fader. The...
Page 108: Channel Routing Functions
Channel Routing Functions 5.5.1 Group Bus Routing Max Air’s group busses can be used for sub-groups, clean feeds and matrix outputs. The CM404 center section has bus master functions (see Chapter 6: Busses). Route a Channel to a Group Bus To route the post-fader channel signal to a group bus, press the Group Knobset Select key.
Page 109: Main Bus Routing
Euphonix Max Air Mixing Console Operation Manual Channels and Strips 5.5.2 Main Bus Routing There are up to 32 Main sections each comprised of individual main busses in a pan format. For example, one section with a stereo format uses two busses, another section with a 5.1 format uses six busses.
Page 110: Mix Minus
Euphonix Max Air Mixing Console Operation Manual Channels and Strips Mix Minus Each channel has a mix minus output that can be used to send a unique feed to an an- nouncer. The Mix Minus Reference Bus is the console’s single mono mix minus bus. A channel is routed to it by pressing the Bus key.
Page 111: Chapter 6: Busses
Busses Introduction to Max Air Busses Max Air has between 8 & 24 Main busses, 8 & 24 Group busses, 4 & 24 Aux busses, and a stereo Solo bus. See page 73 to learn about the Bus Lock feature.
Page 112: Configuring Main And Group Busses
Euphonix Max Air Mixing Console Operation Manual Busses Configuring Main and Group Busses Select the Busses Main Menu button. Select either the Group or Main button to config- ure the Group or Main busses, respectively (Figure 6-1 shows the Main busses; Figure 6-2 shows Group busses).
Page 113: Format Selector
Euphonix Max Air Mixing Console Operation Manual Busses Figure 6-2 Group Bus View The letters on the left of Figure 6-1 denote the 16 Main sections. The letters I, L, M, N, and O have been omitted to avoid being confused with one another. Touch the cell to the right of the letter to name the section.
Page 114: Format Selector
Euphonix Max Air Mixing Console Operation Manual Busses Figure 6-3 Format Selector The possible formats are: none (remove a format from a bus) mono (M) stereo (L, R) LCRS (L, C, R, S) 5.1 (L, C, R, SL, SR, B) 6.1 (L, C, R, SL, SR, SC, B)
Page 115 Euphonix Max Air Mixing Console Operation Manual Busses A useful application of the Format Selector is to change the order of channels used to accommodate different standards (i.e., L,R,C,B,Sl,Sr instead of L,C,R,Sl,Sr,B). Any for- mat can be re-ordered but the following example sets a 5.1-channel mix to an arbitrary order: Select a Main bus.
Page 116: Configuring Aux Busses
Euphonix Max Air Mixing Console Operation Manual Busses Configuring Aux Busses Select the Busses Main Menu button, then select the Aux tab to display the Aux Bus Settings shown in Figure 6-4. Each button pertains to a specific Aux function, which is discussed in the following sections.
Page 117: Toggle On/Off
Euphonix Max Air Mixing Console Operation Manual Busses 6.3.2 Toggle On/Off Selected Aux busses can now be toggled on/off from this View. Toggle On/Off button. Touch the The button illuminates. Touch the desired Aux busses to toggle. When finished, select a different Aux function.
Page 118: Copy Aux To Aux
Euphonix Max Air Mixing Console Operation Manual Busses 6.3.5 Copy Aux to Aux The settings from one Aux bus can be copied to another from this View. Touch the Copy Aux2Aux button. The button illuminates. from which the settings are to be copied.
Page 119: Mix Minus
Euphonix Max Air Mixing Console Operation Manual Busses Mix Minus Select the Mix Minus tab to display the Mix Minus Configuration View. Touch the Strip View or Channel View buttons (1 in Figure 6-5) to display strips and channels, respec- tively.
Page 120: Bus Centric Views
Euphonix Max Air Mixing Console Operation Manual Busses Bus Centric Views Max Air provides easy access to visually inspecting which channels are routed to the busses. This allows finding and correcting why sounds are on the bus that should not be there and vice versa.
Page 121: Aux Bus View-Channels
Euphonix Max Air Mixing Console Operation Manual Busses Figure 6-7 Aux Bus View-Channels Figure 6-7 shows the pan settings for channels 1–48 routed to aux bus 5/6. Touch a bank of 16 knobs to assign them to the Soft Knobs to edit aux level, pre/post...
Page 122: Main View
Euphonix Max Air Mixing Console Operation Manual Busses 6.5.3 Main View Select the Main View button to display how channels are mapped to the Main busses. Touch the Strip View or Channel View buttons (1 Figure 6-8) in to display strips and channels, respectively.
Page 123: Bus Masters
Euphonix Max Air Mixing Console Operation Manual Busses Bus Masters Each Group bus, Aux bus, and Main section has a Bus Master level control. The Soft Knobs in the CM404 Center Section are used to control bus masters. Soft Knobs...
Page 124: Group And Aux Bus Masters
Euphonix Max Air Mixing Console Operation Manual Busses 6.6.2 Group and Aux Bus Masters The Group and Aux bus masters have bus master level controls. Press the Group Bus Masters key to display the first 16 group bus masters on the Soft Knobs. Use the ▼ key to display the remaining eight group bus masters.
Page 125: Bus Processing
Euphonix Max Air Mixing Console Operation Manual Busses Bus Processing Digital processing can be performed on up to 16 Main, Group, or Aux busses. The pro- cessing functions include a limiter, compressor, and filters. The selected busses (Figure 6-10) can be assigned to a CM416 strip or the Super Channel to allow for parameter adjustments.
Page 126: Chapter 7: Center Section
Euphonix Max Air Mixing Console Operation Manual Chapter 7: Center Section PUSH PUSH Talkback Mic Oscillator Oscillator Monitors Monitors Setup Setup Solo Solo Control Room Control Room Setup Setup Main Level Level Spkrs Alt 1 Clear Clear Spkrs Solo Solo...
Page 127: Super Channel
Euphonix Max Air Mixing Console Operation Manual Center Section Super Channel The Super Channel provides a way to view and edit the most important functions of a channel. Select the Super Channel Main Menu button on the Touchscreen to display the settings of the channel currently assigned to the Super Channel.
Page 128: Assign A Channel To The Super Channel
Euphonix Max Air Mixing Console Operation Manual Center Section 7.1.1 Assign a Channel to the Super Channel Assign a channel to the Super Channel by any of the following methods: Wave key on the channel strip. • Press the •...
Page 129: Input Section
Euphonix Max Air Mixing Console Operation Manual Center Section 7.1.2 Input Section The A On and B On buttons (12) select A, B, or A + B. They intercancel except that they can be pressed together to turn them both on.
Page 130: Filters
Euphonix Max Air Mixing Console Operation Manual Center Section 7.1.4 Filters The filters section controls two filters for the selected channel. The In key (6) switches the entire filters section in/out. The In key to the left of the knob (7) switches that indi- vidual filter in/out.
Page 131: Dynamics
Euphonix Max Air Mixing Console Operation Manual Center Section 7.1.7 Dynamics This area provides control over the most commonly used dynamics parameters for the selected channel. Comp Exp / Gate Attack Attack Release Release Depth Depth Select Select Soft Soft...
Page 132: Monitors And Control Room
Euphonix Max Air Mixing Console Operation Manual Center Section Monitors and Control Room The Max Air monitor system accommodates multi format outputs up to 7.1 channels. There are seven monitor outputs (Figure 7-6): • The Main Control Room and Mon A (7.1 max) •...
Page 133: Monitors
Euphonix Max Air Mixing Console Operation Manual Center Section 7.2.1 Monitors Monitors Monitors Control Room Control Room Setup Setup Main Spkrs Alt 1 Spkrs Alt 2 Spkrs Setup Setup Figure 7-7 CM404 Monitor Controls Mon A–D each has a level control and LCD display (2 in Figure 7-7) that shows the source.
Page 134: Control Room
Euphonix Max Air Mixing Console Operation Manual Center Section The sources for Mon A–D outputs are selected using the Touchscreen. Press the Setup key in the Monitors section (3 in Figure 7-7 shows the setup key) to display the source selection popup (Figure 7-8).
Page 135: Control Room Setup: Cr Source
Euphonix Max Air Mixing Console Operation Manual Center Section Control Room Setup Press the Setup key (4 in Figure 7-7) to display the Control Room Setup popup (below). Setting up the Control Room source is similar to setting up the Monitors source. Select a source by touching a button and see page 128 for more information.
Page 136 Euphonix Max Air Mixing Console Operation Manual Center Section Folddown Format The Main control room outputs may be folded down from their original format to one with fewer outputs using the keys on the left of the Control Room Output popup (see Figure 7-10).
Page 137: Talkback/Slate
Euphonix Max Air Mixing Console Operation Manual Center Section Talkback/Slate Max Air’s talkback/slate system includes: • Two talkback microphone inputs The surface has an XLR connector for mounting a goose-neck mic and an internal mic. Each input has 111 dB gain, phantom power, and compressor. Talkback can be routed to Mon A–D, the aux busses and the Main sections via the Slate func-...
Page 138: Talkback
Euphonix Max Air Mixing Console Operation Manual Center Section 7.3.1 Talkback Touch the Talkback tab to display the Talkback section. Figure 7-12 Talkback/Slate Setup Popup Monitors Talkback Mic 1 and Talkback Mic 2 can be routed to Mon A–D by touching the buttons at the top of the Talkback Setup popup (1 in Figure 7-12).
Page 139: Listenback
Euphonix Max Air Mixing Console Operation Manual Center Section 7.3.2 Listenback Touch the Listenback tab to display the Listenback section. Figure 7-13 Listenback Setup Popup The listen mics can feed any combination of the control room, Main, Alt1, Alt2, or Mon A–D speakers by activating their keys (1 in Figure 7-13).
Page 140: Slate
Euphonix Max Air Mixing Console Operation Manual Center Section 7.3.3 Slate Touch the Slate tab to display the Slate section. Figure 7-14 Slate Setup Popup Set the Slate frequency by moving the Frequency fader. Set the Slate level by moving the Level fader (111 dB of gain).
Page 141: Cm404 Oscillator
Euphonix Max Air Mixing Console Operation Manual Center Section Oscillator Oscillator Custom Talk To Setup Setup Mon B Setup Figure 7-15 CM404 Oscillator • Toggles the oscillator on/off. • Setup: Displays the Oscillator Setup popup. Figure 7-16 Oscillator Setup Popup Set the Oscillator destination by touching the Group Busses, Main Busses, Aux Bus- ses, or All Busses keys (4).
Page 142: Solo
Euphonix Max Air Mixing Console Operation Manual Center Section Solo Max Air has an extensive solo system that is accessed from the Solo area in the center- section. Solo Solo Level Level Clear Clear Solo Solo Setup Setup Figure 7-17 CM404 Solo Controls •...
Page 143: Solo Mode
Euphonix Max Air Mixing Console Operation Manual Center Section 7.5.1 Solo Mode The three solo modes can be selected by pressing their respective keys (1 in Figure 7-18) in the Solo Setup popup. Selecting one mode deselects the last mode.
Page 144: Speaker Selection
Euphonix Max Air Mixing Console Operation Manual Center Section 7.5.5 Speaker Selection The AFL and PFL solo signals can be routed to the following speakers by activating their respective keys (4 in Figure 7-18) in the Solo Setup popup: •...
Page 145: Backstop Pfl
7.5.8 Backstop PFL The Max Air faders have a backstop PFL switch past the bottom of their travel. Select Enable Backstop PFL (5 in Figure 7-18) to enable this feature. Pull a fader past the bottom of its travel to route the signal’s PFL level to the solo bus. Releasing the fader cancels that fader’s routing to the solo bus.
Page 146: Soft Knob Setup Popup
Euphonix Max Air Mixing Console Operation Manual Center Section • Press the Aux Sends key to display the selected Super Channel’s aux sends on the Soft Knobs. • Press the Aux Masters key to display the aux bus master level controls on the Soft Knobs.
Page 147: Center Section Faders
Euphonix Max Air Mixing Console Operation Manual Center Section Center Section Faders Figure 7-22 CM404 Center Section Faders The center section faders are similar to faders and displays in the channel strip section except there is no Swap key and only one eight-character display per fader (see Chapter 5: Channels and Strips).
Page 148: Keypad
Euphonix Max Air Mixing Console Operation Manual Center Section Keypad The keypad is used to recall Layouts, Snapshots, custom (*) channel strip Knobset pag- es, trigger Custom events, or recall channels to the Super Channel. Layouts Snapshots Knobsets Custom Clear...
Page 149: Keypad Directory Popup
Euphonix Max Air Mixing Console Operation Manual Center Section Figure 7-24 Keypad Directory Popup Press the Setup key to view the Keypad Directory popup with Layouts, Snapshots, Knob- sets, and Custom Keys. This provides an alternate method to recall these functions.
Page 150: Global Functions
Euphonix Max Air Mixing Console Operation Manual Center Section Global Functions Clear Copy Link Workstation Setup Figure 7-25 Global Function Keys All Key Press the All key so it is lit. Now pressing any channel strip’s Swap key, Knobset Select key (*, Ins/Inp, Dyn, EQ, Filt, Pan, Aux, Main, Group), or ◄...
Page 151: Custom Keys
7.10 Custom Keys The Max Air center section has eight Custom keys that can be programmed using the Event system (i.e., start a cart machine, turn speakers on/off, and single-button recall of both a Snapshot and Layout). See Chapter 11: Event System for more information.
Page 152: Chapter 8: Control Groups And Multi Format Masters
Control Group is to control similar channels from one strip. For example, a single master fader can be used to change the fader level of all announcer mics. Max Air allows up to 48 Control Groups, each of which can control the following channel set- tings: Fader, On/Off, Pan, Aux, Filters, EQ, Dynamics and Input.
Page 153: Assign Control Group Master To Strip
Euphonix Max Air Mixing Console Operation Manual Control Groups and Multi Format Masters Select a Control Group button and touch the Name button to assign a name in the key- board popup. Select a Control Group button and touch the Assign button to display the Assign Chan- nels to CG View (Figure 8-2).
Page 154: Multi Format Master Channels
Euphonix Max Air Mixing Console Operation Manual Control Groups and Multi Format Masters Multi Format Master Channels A Multi Format Master allows stereo, LCRS, 5.1, 6.1, and 7.1 channels to be built from mono channels. The Multi Format Master channel can be assigned to a strip just like a normal channel.
Page 155: Control Groups Or Multi Format Masters
Euphonix Max Air Mixing Console Operation Manual Control Groups and Multi Format Masters There are 48 Multi Format Masters accessed by six tabs below the channels. Touch the Page buttons to the left of the Format Selector to display additional banks of 16 chan- nels.
Page 156: Spill
Euphonix Max Air Mixing Console Operation Manual Control Groups and Multi Format Masters Spill The Spill function temporarily assigns the slave’s channels of a Control Group or Multi Format Master to predefined Strips. See also Spill Area on page 76.
Page 157: Chapter 9: Layouts And Snapshots
Euphonix Max Air Mixing Console Operation Manual Chapter 9: Layouts and Snapshots Layouts Layouts are used to store a mapping of channels to strips on the console. A system with 24 strips and 96 channels cannot map all channels to the console surface at once. Since...
Page 158: Store
Euphonix Max Air Mixing Console Operation Manual Layouts and Snapshots 9.1.1 Store Select a Layout button to create or modify. If it is an empty Layout (labeled only with a number), only the Store button is illuminated while Recall, Name, and Clear are disabled.
Page 159: Snapshots
Layouts map channels to strips and Snapshots determine all, or part of, their channel settings. Max Air can store a maximum of 240 Snapshots. When no Snapshot is selected, all the function buttons are disabled.
Page 160: Store Snapshot: Strip View
Euphonix Max Air Mixing Console Operation Manual Layouts and Snapshots To modify SS 1: Recall SS 1. Adjust parameters on the desk to the desired settings. Clear SS 1. Select the same channels and functions as stored previously. Store SS 1.
Page 161: Recall
Euphonix Max Air Mixing Console Operation Manual Layouts and Snapshots Figure 9-5 Store Snapshot: Channel View Use the Select All, Select None, and Select Range buttons (3) to assist your selection (see page 75). Touch the Close button to store the Snapshot.
Page 162: Chapter 10: Scene Automation
Euphonix Max Air Mixing Console Operation Manual Chapter 10: Scene Automation Scene Automation allows the manual triggering of a single snapshot, or an automated sequence of snapshots. Each Scene contains a programmable fader/knob glide time parameter for crossfading to the next Scene. The Scene’s autofollow time sets the time between scenes when the sequence is automated.
Page 163: Scene Menu
Euphonix Max Air Mixing Console Operation Manual Scene Automation 10.1.2 Scene Menu To access the Scene Automation Operations window, first select Events from the Main Menu buttons, then select the Scenes tab. If there are no Scenes, select Add Scene or Insert Scene to create a Scene to edit.
Page 164: Finish
Euphonix Max Air Mixing Console Operation Manual Scene Automation over again to sequence through all the scenes. Note that non-continuous parameters, such as switch status, change as soon as a Scene snapshot is recalled. In addition, there are no restrictions on executing Scenes while another Scene’s snapshot is still “gliding”...
Page 165: Chapter 11: Event System
“true,” a set of output actions are activated. Inputs may be surface parameters (i.e., channel on, fader, Custom keys, etc.) or external inputs via the GP132 GPI. Outputs may be Max Air parameters or external relay outputs via the GP132.
Page 166: Input Types
Euphonix Max Air Mixing Console Operation Manual Event System 11.1 Input Types Table 11-1 GP Input Types, Settings, and Activation Values Input Type Settings Activation Values Custom Switch A-H Custom Switch Custom Switch State Press/Release Action Monitor A-D, Control Room Dim, Control...
Page 167: Output Types
Euphonix Max Air Mixing Console Operation Manual Event System 11.2 Output Types Table 11-2 GP Output Types, Settings, and Activation Values Ouput Type Settings Activation Values Action Monitor A-D, Control Room Dim, Control Room Control Room Cut Active State On/Off...
Page 168: Logical Operators
Euphonix Max Air Mixing Console Operation Manual Event System 11.3 Logical Operators The following logical operators process an event’s input conditions to determine if the output action(s) is to be executed. If an event consists of just one input, AND and OR deliver the same result and may be used interchangeably.
Page 169: Event Configuration Display
Euphonix Max Air Mixing Console Operation Manual Event System 11.4 Event Configuration Display Access the Events View by selecting the Events Main Menu button. The Events View has three sections: Inputs (1 in Figure 11-1), Event List (2), and Outputs (3).
Page 170: Input
Euphonix Max Air Mixing Console Operation Manual Event System 11.6 Input The Input area has two sections: the top contains a list of inputs for all events in the Event List (1 in Figure 11-1), the lower shows the properties of the selected input (5).
Page 171: Output
Euphonix Max Air Mixing Console Operation Manual Event System 11.7 Output The Output area has two sections. The top contains a list of output actions for the event selected in the Event List. These actions occur only if the input conditions for the se- lected event (combined with their logical operator) yield “True”.
Page 172: Gpi Examples
Euphonix Max Air Mixing Console Operation Manual Event System 11.10 GPI Examples Events programming examples are given for the following: • creating an “On-Air” tally when a microphone channels is tracked. • using a fader strip to start and stop a cart machine •...
Page 173 Euphonix Max Air Mixing Console Operation Manual Event System Next, we must create an Event to open the relay (turn the “On-Air” light off) when none of the mic channels are tracked (see Figure 11-5): Touch the Events Main Menu button to display the Events View.
Page 174: On-Air Tally On
Euphonix Max Air Mixing Console Operation Manual Event System Figure 11-4 On-Air Tally On Figure 11-5 On-Air Tally Off...
Page 175: Using A Channel Strip To Control A Cart Machine
Euphonix Max Air Mixing Console Operation Manual Event System 11.10.2 Using a Channel Strip to Control a Cart Machine This example demonstrates how to use a channel strip to control a cart machine. When the channel is switched ON, the cart machine starts. When the fader is pulled below -72dB, the cart machine re-cues.
Page 176: Cart Start
Euphonix Max Air Mixing Console Operation Manual Event System In the Outputs area, touch the <Press to Add Output> field and select GPO from the Add Output Event Popup (see Figure 10-3). Enter the following values: Output Number Active State...
Page 177: Audio Follow Video
Euphonix Max Air Mixing Console Operation Manual Event System 11.10.3 Audio Follow Video This example demonstrates how to create complex audio-follow-video functionality. The goal of the feature is as follows: When the video switcher takes a camera, that cam- era’s audio automatically fades up. When the switcher goes to a different source, the camera’s audio automatically fades down.
Page 178 Euphonix Max Air Mixing Console Operation Manual Event System To achieve this, several programming steps are involved: A separate Snapshot must be created for each camera fader’s on and off position. A separate Scene must be created for each Snapshot. This enables the user to enter a glide time.
Page 179 Euphonix Max Air Mixing Console Operation Manual Event System Create an Event with the following: Inputs Settings Value GPI Input Input number Active State Machine GP132 One Outputs Settings Value Scene Event Type Recall Scene # Create another Event with the following:...
Page 180 Euphonix Max Air Mixing Console Operation Manual Event System...

Euphonix Max Air Manual

List of Figures

Chapter 1: Introduction

Chapter 2: New Features in Version

Chapter 3: Quickstart to Common Tasks

Chapter 4: Touchscreen

Chapter 5: Channels and Strips

Chapter 6: Busses

Chapter 7: Center Section

Chapter 8: Control Groups and Multi Format Masters

Chapter 9: Layouts and Snapshots

Chapter 10: Scene Automation

Chapter 11: Event System

Quick Links

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Euphonix Max Air

Summary of Contents for Euphonix Max Air
