"7p1" and "8N1" (p = "E" [even] or "O" [odd]), all in NRZ data format (ECCR04: INV = 0).
(Note)
**ORE only occurs, if the reception data is not read by the CPU (RDRF = 1) and another data frame
is read.
Receive
data
RDRF
ORE
5.2 Transmission Interrupt Generation and Flag Set Timing
A transmission interrupt is generated when the next data to be sent is ready to be written to the output data
register (TDR04).
■ Transmission Interrupt Generation and Flag Set Timing
A transmission interrupt is generated, when the next data to be send is ready to be written to the Transmission
Data Register (TDR04), i. e. the TDR04 is empty, and the transmission interrupt is enabled by setting the
Transmission Interrupt Enable (TIE) bit of the Serial Status Register (SSR04) to "1".
The Transmission Data Register Empty (TDRE) flag bit of the SSR04 indicates an empty TDR04. Because the
TDRE bit is "read only", it only can be cleared by writing data into TDR04.
The following figure demonstrates the transmission operation and flag set timing for the four modes of USART.
Mode 0, 1 or 3:
write to TDR04
TDRE
serial output
Mode 2 (SSM = 0):
write to TDR04
TDRE
serial output
ST: Start bit
(Note)
The example in figure
"8p1" (p = "E" [even] or "O" [odd]), ECCR04: INV = 0. Parity is not provided in mode 3 or 2, if SSM =
0.

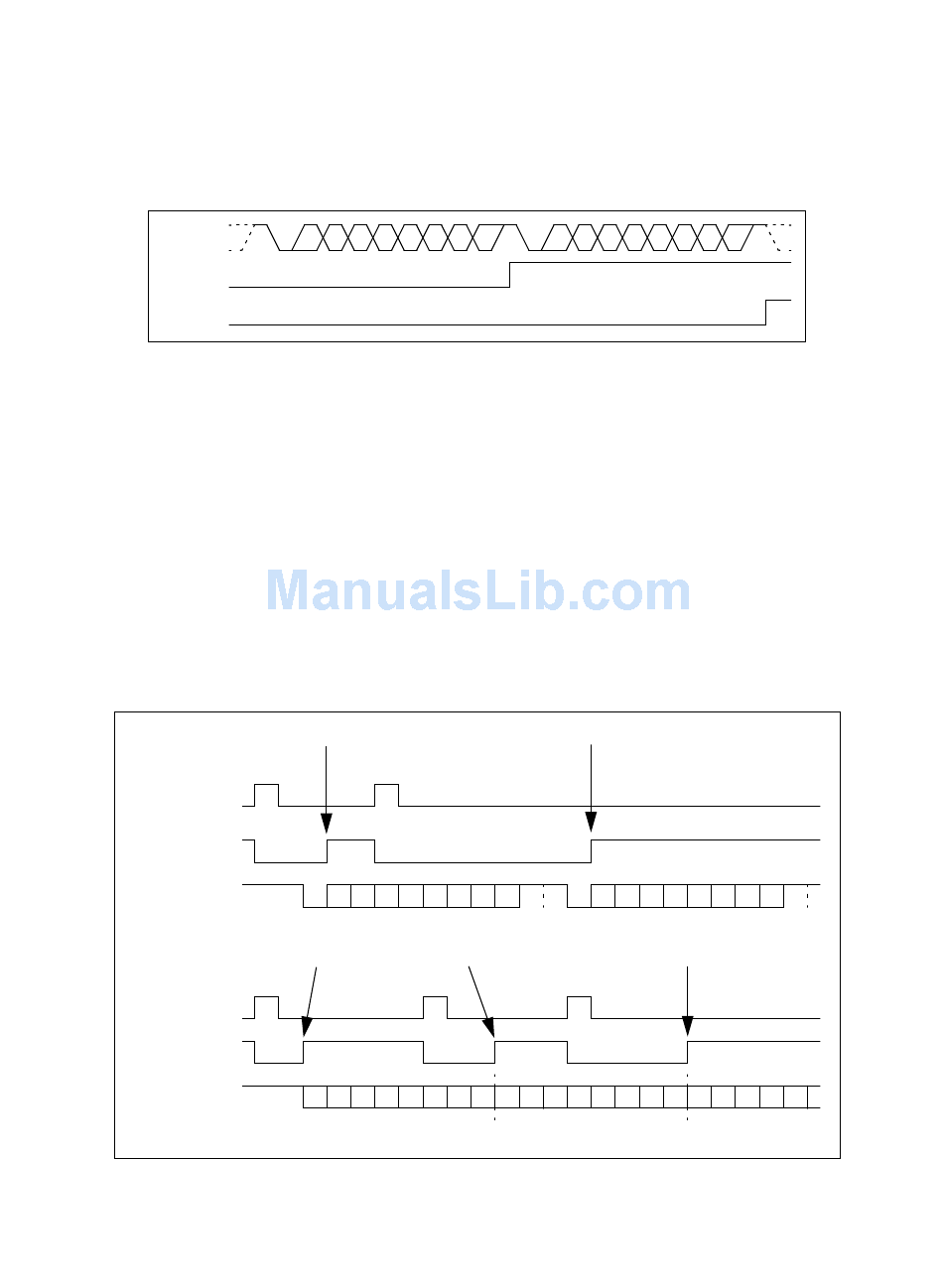

Figure 5-3 ORE set timing
Figure 5-4 Transmission operation and flag set timing
transmission interrupt occurs
ST D0 D1 D2 D3 D4 D5 D6 D7
transmission interrupt occurs
D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4
D0 ... D7: data bits
P: Parity
5-4
does not show all possible transmission options for mode 0. Here it is:
transmission interrupt occurs
P
SP ST D0 D1 D2 D3 D4 D5 D6 D7
AD
transmission interrupt occurs
SP: Stop bit
AD: Address/data selection bit (mode1)
Chapter 32 USART (LIN / FIFO)
5.USART Interrupts
P
SP
AD
641
