Overview Screen

4-5

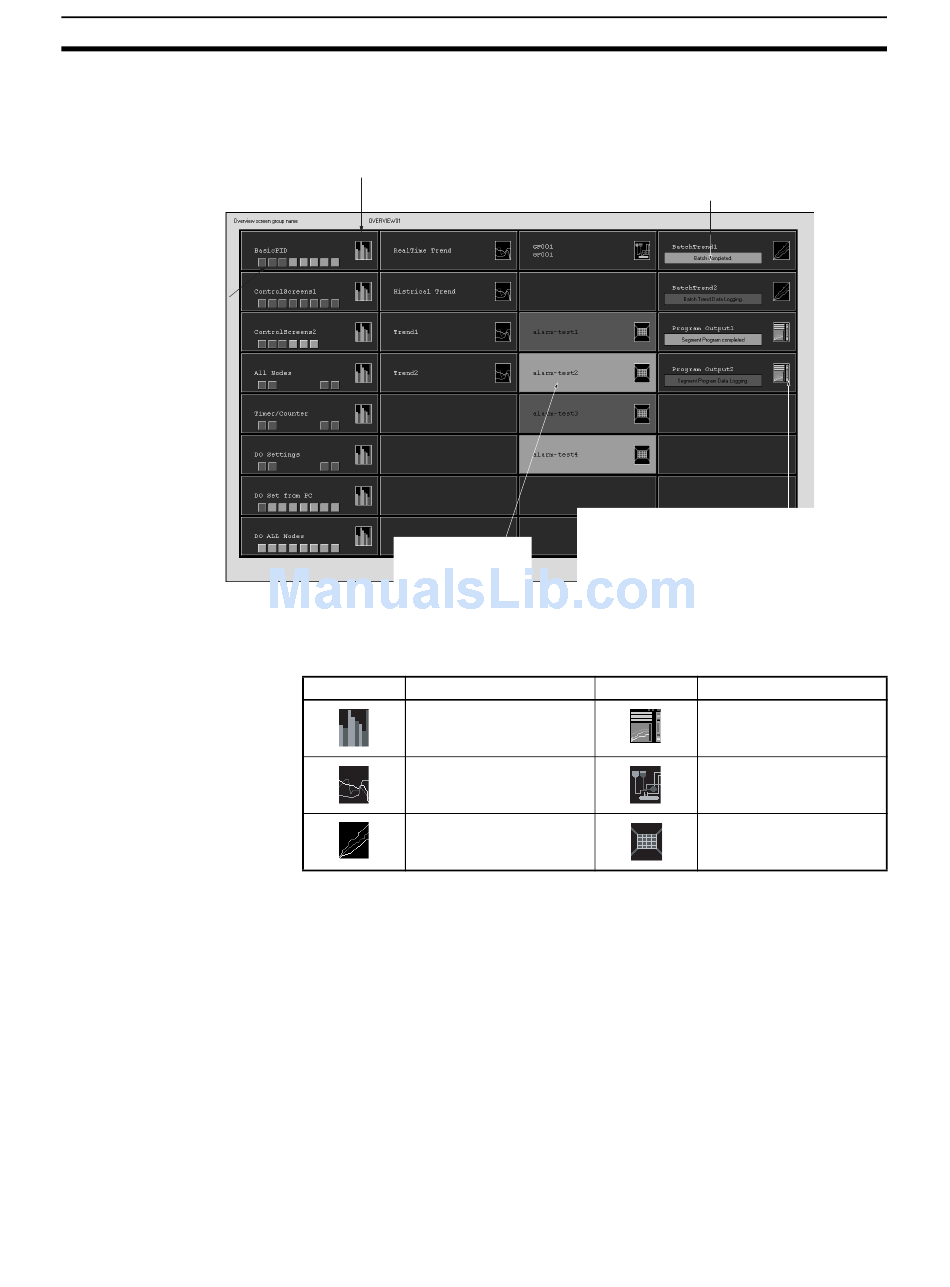

Overview Screen

Each button represents
one loop. Click the button
to display the Tuning
Screen for the loop.
Note
80
The Overview Screen displays all the menu screens and displays alarms.
Click this button to move to
the Control Screen.
If a user-set error
occurs, the button for
the Annunciator
Screen will flash.
The button icons for the registered Control Screen, Trend Screen, Batch Trend
Screen, Graphic Screen, Segment Program 2 Screen, and Annunciator
Screen will be displayed.
Icon Screen type
Control Screen
Trend Screen
Batch Trend Screen
Each screen displays eight rows and four columns to a maximum of 32
screens. The alarm status for each loop is shown on the Control Screen but-
ton.
Select the icon to move to the registered screen.
If a user-set alarm occurs, the icon for the Annunciator Screen flashes.
When returning to the Overview Screen from any screen, first select Over-
view from among the screen selection buttons, and then select the Overview
Screen name.
More than one Overview Screen can be displayed by clicking the System
Info. Button when configuring the screen and then setting the Multi-screen–
Multi-screen setting to Enable. Refer to 5-6 System Information Settings for
details.
Auto-starting can be enabled or disabled by clicking the right mouse button at
the top of an Overview Screen. Click the Yes Button on the dialog box that
appears and then set Auto-start to as required.
The status of data collection for a Batch Trend Screen
is displayed.
Batch Trend Data Logging (Background: Red): Collecting data.
Batch Completed (Background: Blue): Not collecting data.
The status of data collection for
Segment Program 2 Screen is displayed.
Segment Program Data Logging
(Background: Red): Collecting data.
Segment Program Completed
(Background: Blue): Not collecting data.
Icon
Section 4-5
Screen type
Segment Program 2
Screen
Graphic Screen
Annunciator Screen
