Installation
Install the CX-Process Monitor Plus.
Copy the converted data.
Reset the Graphic Screen
data (if Graphic Screens
are being used).
1,2,3...
42

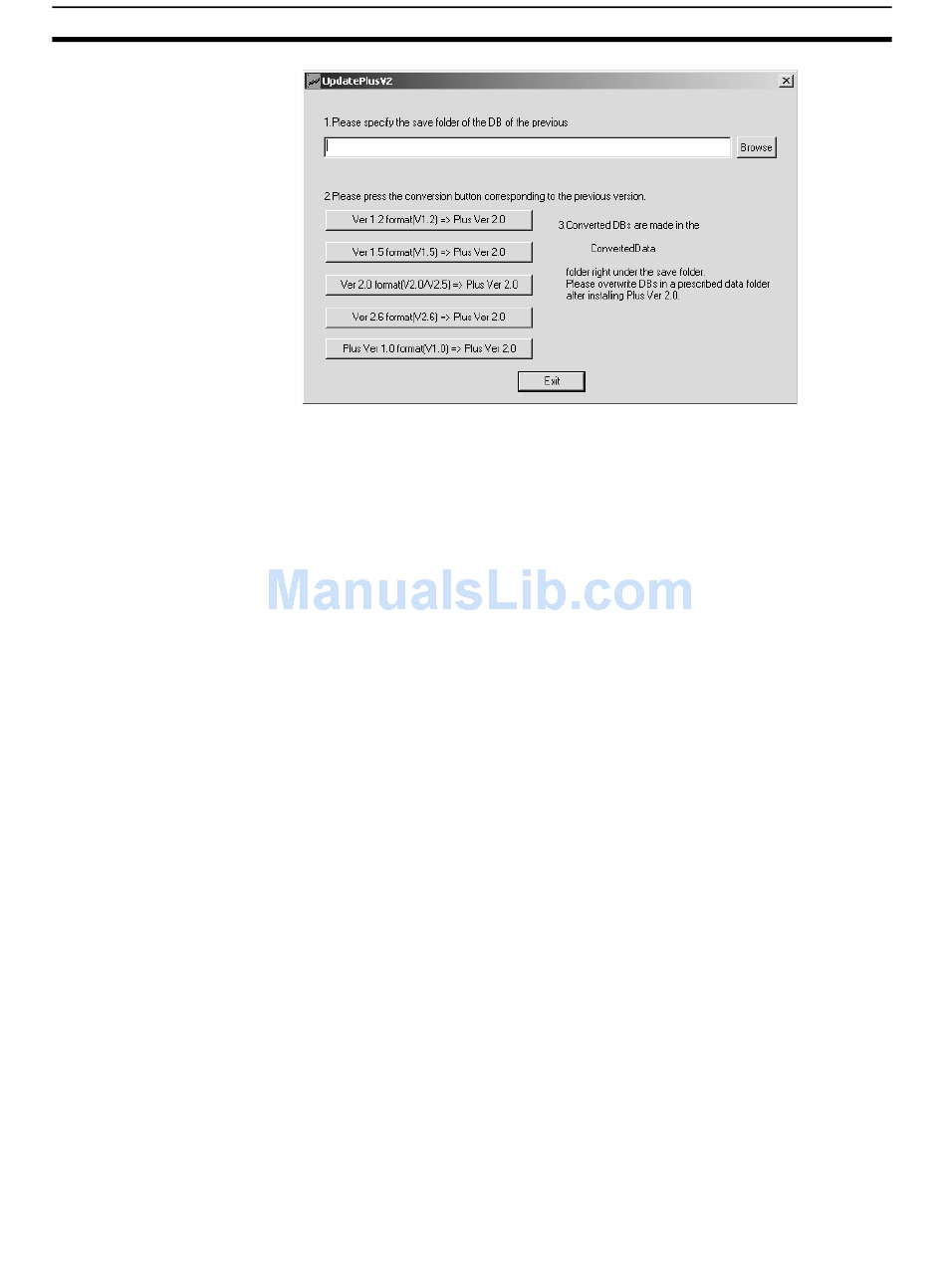

2. Click the Browse Button and specify the folder where the CX-Process
Monitor Plus database was moved earlier in this procedure.
3. Click the conversion button corresponding to the CX-Process Monitor Plus
version confirmed earlier in this procedure.
Monitor Plus Version 1.0: Plus Ver 1.0 format (V1.0) → Plus Ver 2.0
Note Some data cannot be converted by the Trend DB Conversion Utility. Refer to
2-1-7 CX-Process Monitor Plus Conversion Specifications for details on con-
version specifications when converting to CX-Process Monitor Plus.
When the CX-Process Monitor Plus database is converted, the utility creates
a folder named ConvertedData in the folder where the CX-Process Monitor
Plus database was moved earlier in this procedure. Copy all of the files in this
folder, including the GRF folder and all files in the GRF folder, and paste them
in the newly installed CX-Process Monitor Plus database folder, overwriting
any files already there. (The default for the CX-Process Monitor Plus data-
base folder is C: \Program Files\Omron\CX-Process Monitor Plus\DB.)
If Graphic Screens are being used, the Graphic Screen data must be reset in
the CX-Process Monitor Plus.
1. Start the CX-Process Monitor Plus.
2. Start the Graphic Builder and select the command from the File Menu to
change the file information.
3. A list of registration information for previous graphic screens will be dis-
played. Specify each graphic file for each screen in the GRF folder in the
Monitor Plus' DB folder.
Section 2-1
