Screen Configuration

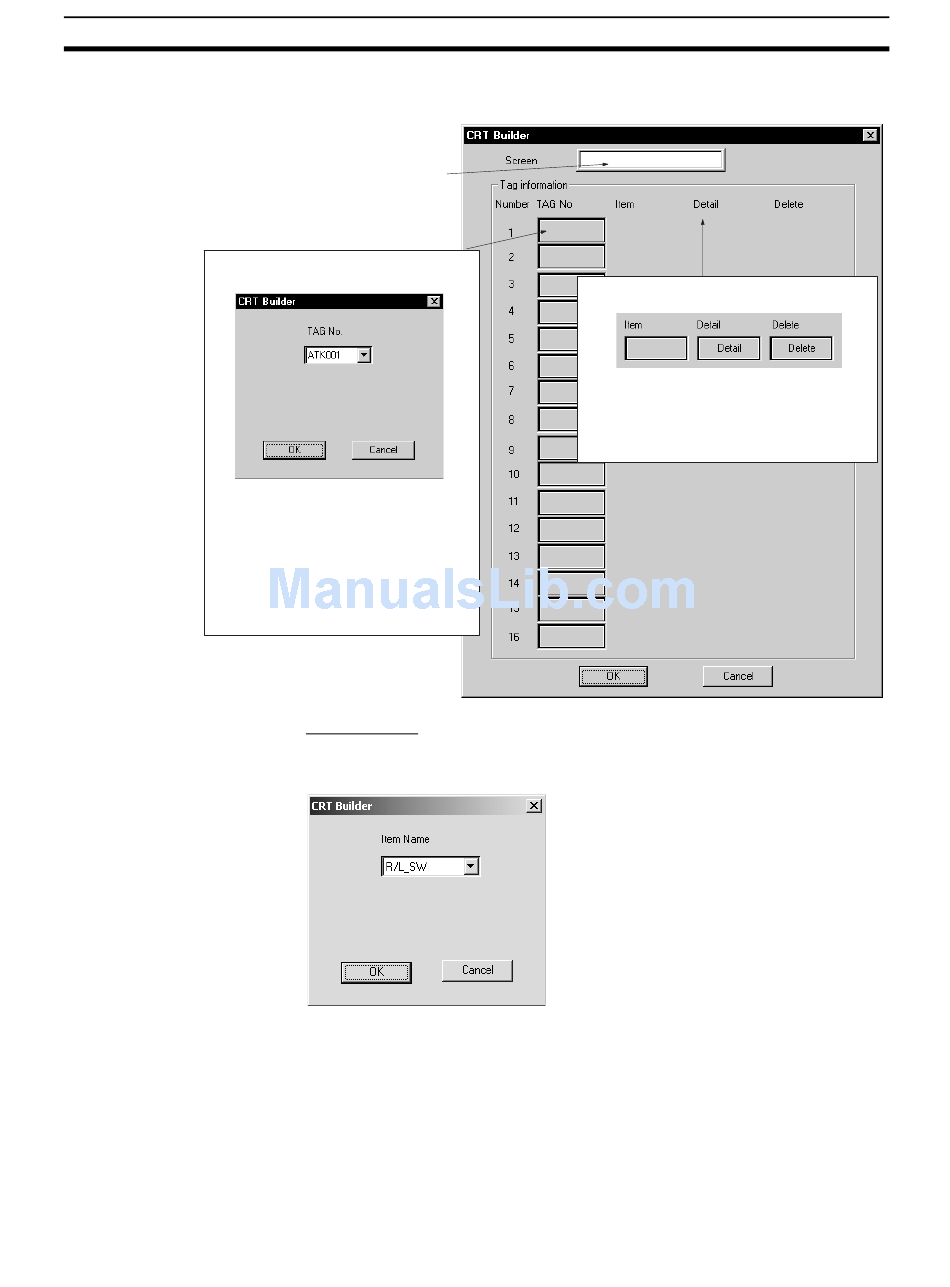

Select the box. The following dialog box
will be displayed.
Select a) the tag name for the function
block (including the contact ITEMs you
want to register), or b) the tag name for
the for the contact ITEMs you want to
register. In this example, the tag name
for the function block for a) has been
specified.
As shown in the screen on the right, you
can allocate up to 16 tag names.
You can register up to 16 contact ITEMs in the Annunciator Screen. Spec-
ify the contact ITEM using the tag name.
Enter the name of the
Control Screen using
16 characters.
Setting ITEMs
Select the tag name, and then click the ITEM Button. The following dialog box
will be displayed.
Select the Tag ITEM corresponding to the contact ITEM you want to set. In
this example, Tag ITEM "RL_SW" for the Function Block for tag name ATK001
has been selected. Next, click the OK Button.
Set the tag name to display the following
Buttons.
Refer to the next page for how to set ITEMs
and Detailed Settings.
Click the Delete Button to delete the
registered Tag information.
