Screen Configuration
Enter the name of the Alarm
Message Registration Screen
using 16 characters.
Switch the page numbers.
Click either button to move up
and down the table of
registered tag names below
by 10 at a time.

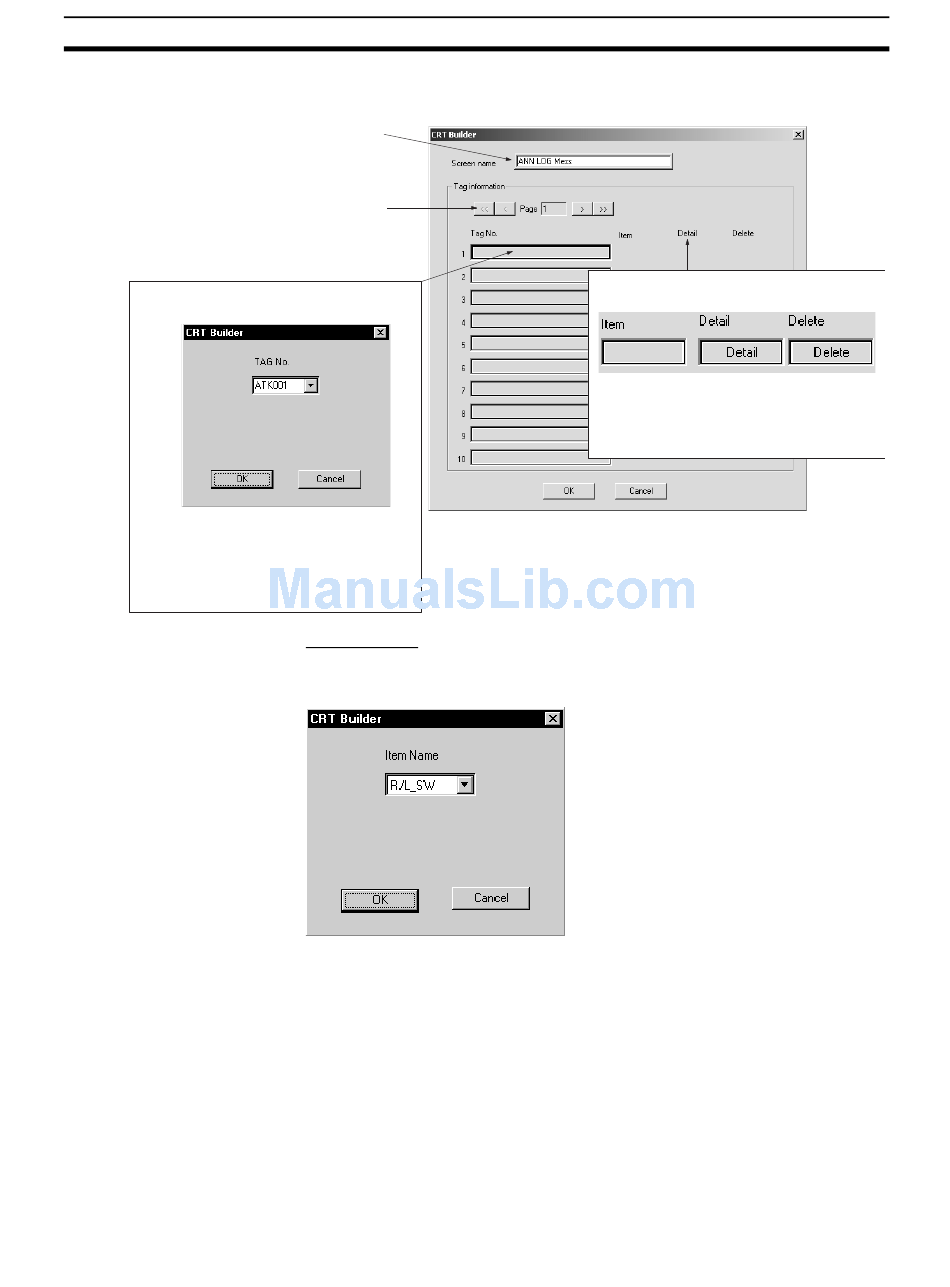

Select the box. The following dialog box
will be displayed.
Select a) the tag name for the function block
(including the contact ITEMs you want to
register), or b) the tag name for the for the
contact ITEMs you want to register. In this
example, the tag name for the function block for
a) has been specified.
You can register up to 2,000 contact ITEMs in the alarm messages. Spec-
ify the setting ITEMs using the tag names.
Setting ITEMs
Select the tag name, and then click the ITEM Button. The following dialog box
will be displayed.
Select the Tag ITEM corresponding to the contact ITEM you want to set. In
this example, Tag ITEM "R/L_SW" for the Function Block for tag name
ATK001 has been selected. Next, click the OK Button.
Select the tag name to display the Details
Button as shown.
Refer to the next page for how to set ITEM
and Detailed Settings.
Click the Delete Button to delete the
registered Tag information.
