Creating Graphic Screens
5-4-7

Grouping Graphic Objects

Note
Grouping Graphic Objects
1,2,3...
Changing the Settings for Individual Graphic Objects in a Group
1,2,3...
Note
Multiple graphic objects can be grouped so that they will be treated as a single
graphic object. (See note.)
Grouped graphic objects can be saved in individual files.
The grouped objects then can be imported and used in other Graphic Screens
by reading the saved files.
Groups cannot include jump objects and FP switch objects.

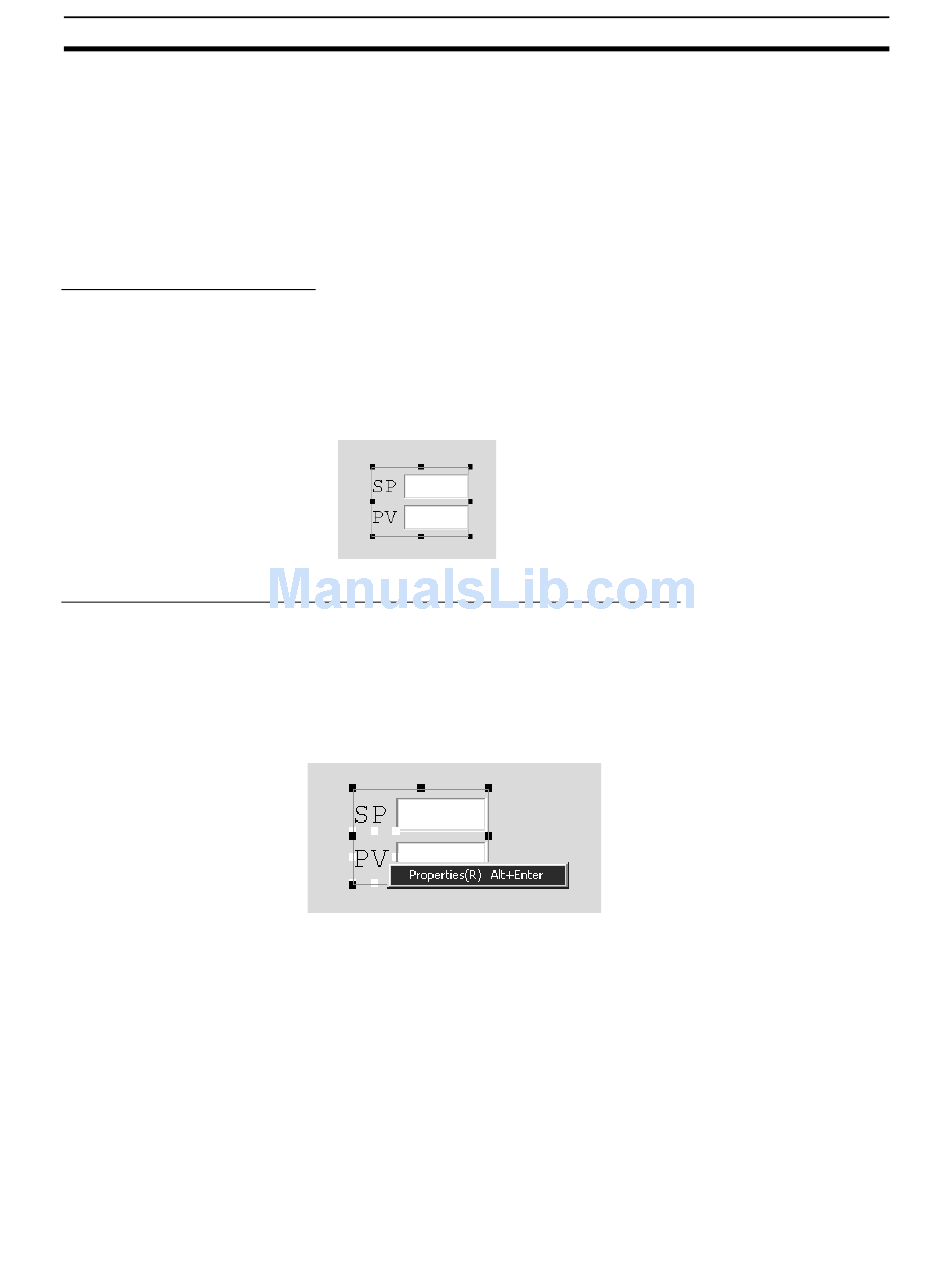

1. In the Graphic Builder Window, select the graphic objects that are to be
grouped.
2. Right-click and select Group Objects from the pop-up menu. (Alternative-
ly, select Group Objects from the Edit Menu.)
The selected graphic objects will be grouped and the color of the lines in
the frame will change to green.
1. Select the grouped graphic object.
2. Within the grouped graphic object, double-click the individual object for
which the settings are to be changed.
3. Right-click and select Properties from the pop-up menu.
The settings for individual graphic objects can then be changed as shown
below.
Individual graphic objects within a group cannot be moved to another display
position, deleted, resized, or copied.
To perform any of these operations, first use the following procedure to
ungroup the graphic objects.
1. Double-click the grouped graphic object to select it.
2. Right-click and select Ungroup Objects from the pop-up menu.
Section 5-4
