Segment Program 2 Screens
Note
Note
Segment Program 2 Collection Cycles and Maximum Save Times
The following table shows the Segment Program 2 Monitor Screen data col-
lection cycles and maximum save times.
Item
Collection cycle
(See note.)
Maximum save time
1. The collection cycle is set using the CRT Builder Dialog Box (Segment Pro-
gram 2 Screen) from the Builder Window. For details on collection cycle
settings, refer to 5-5-2 Overview of Screen Registration.
2. Depending on the number of combined function blocks and the model of
Loop Controller that is connected, it may not be possible to collect the data
within the collection cycle that is set. If the data is displayed on a graph un-
der these conditions, the data will be updated with the same values as for
the previous collection. To remedy this situation, take measures such as
lengthening the collection cycle interval.
Segment Data Collection Starting and Stopping
When the monitored Segment Program 2 Block S1 (ITEM 013) turns ON, data
collection starts. When it turns OFF, data collection stops.
When segment data collection is started, Segment Program 2 trend files are
automatically created in binary format for each Segment Program 2 Screen.
Start the CX-Process Monitor Plus before starting to run Segment Program 2.
If it is started after the CX-Process Monitor Plus, the step data may not match
the monitored program output display.

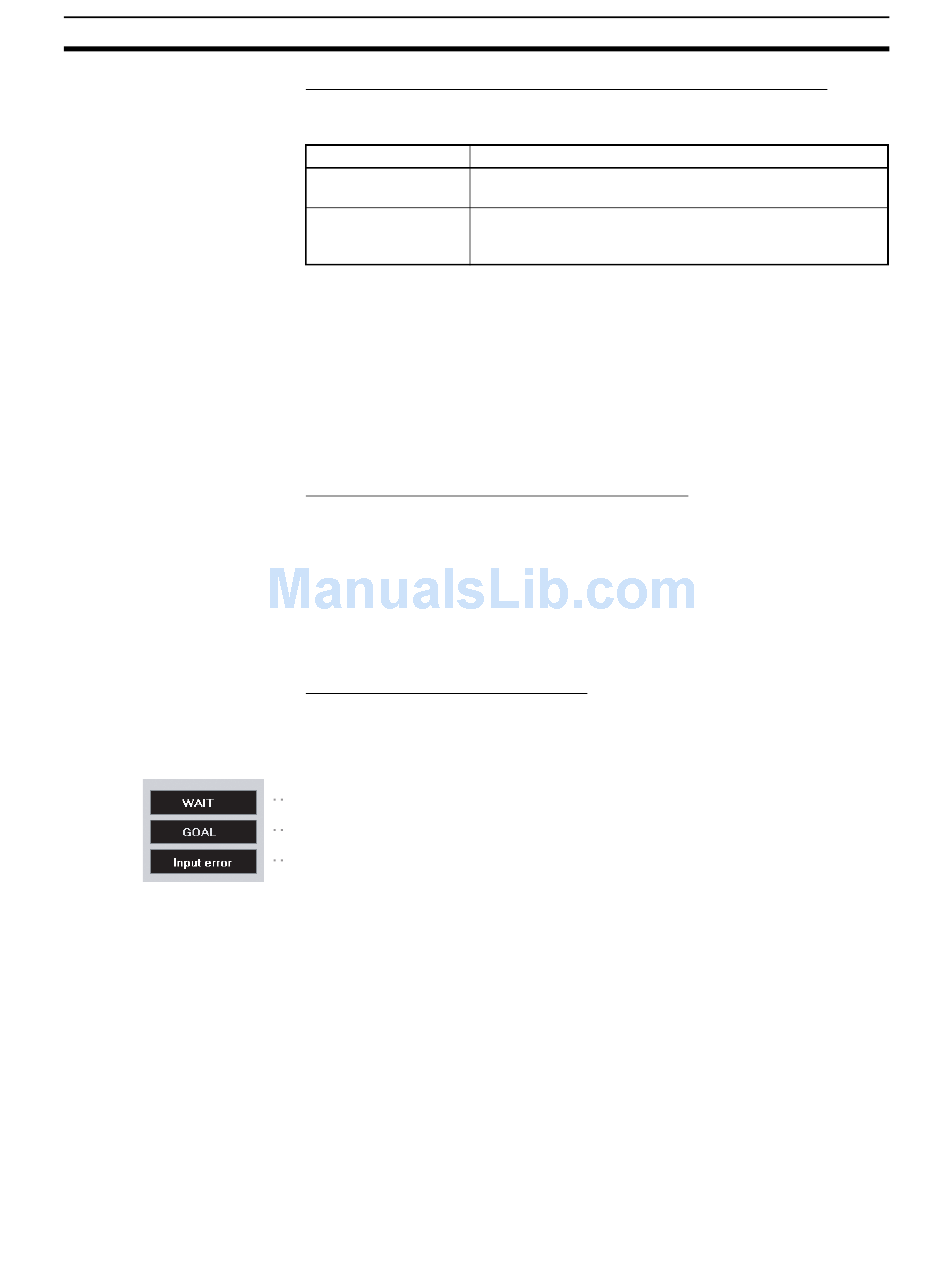

Segment Program 2 Status Display
Segment Program 2 status is displayed at the upper right of the Segment Pro-
gram 2 Monitor Screen.
There are three types of status display, as shown below.
Displayed when U10 Waiting (ITEM 019) in the Segment Program 2 block turns ON.
Displayed when U2 Arrival at Final Segment (ITEM 016) in the Segment Program 2 block turns ON.
Displayed when U1 X1 Input Error (ITEM 015) in the Segment Program 2 block turns ON.
Details
1 s, 10 s, 1 min
3 days (Collection cycle: 1 s)
30 days (Collection cycle: 10 s)
180 days (Collection cycle: 1 min)
Section 4-11
