Omron CX-PROCESS MONITOR PLUS V2 - 01-2007 Operation Manual page 45

Installation
1,2,3...
Step 2: Removing the
Previous
FinsGateway
Note
Step 3: System Restart
Step 4: Internet Explorer
Installation
Step 5: ComCtl32.dll
Update
Step 6: Updating the
HTML Help
Runtime
Component
1,2,3...
30

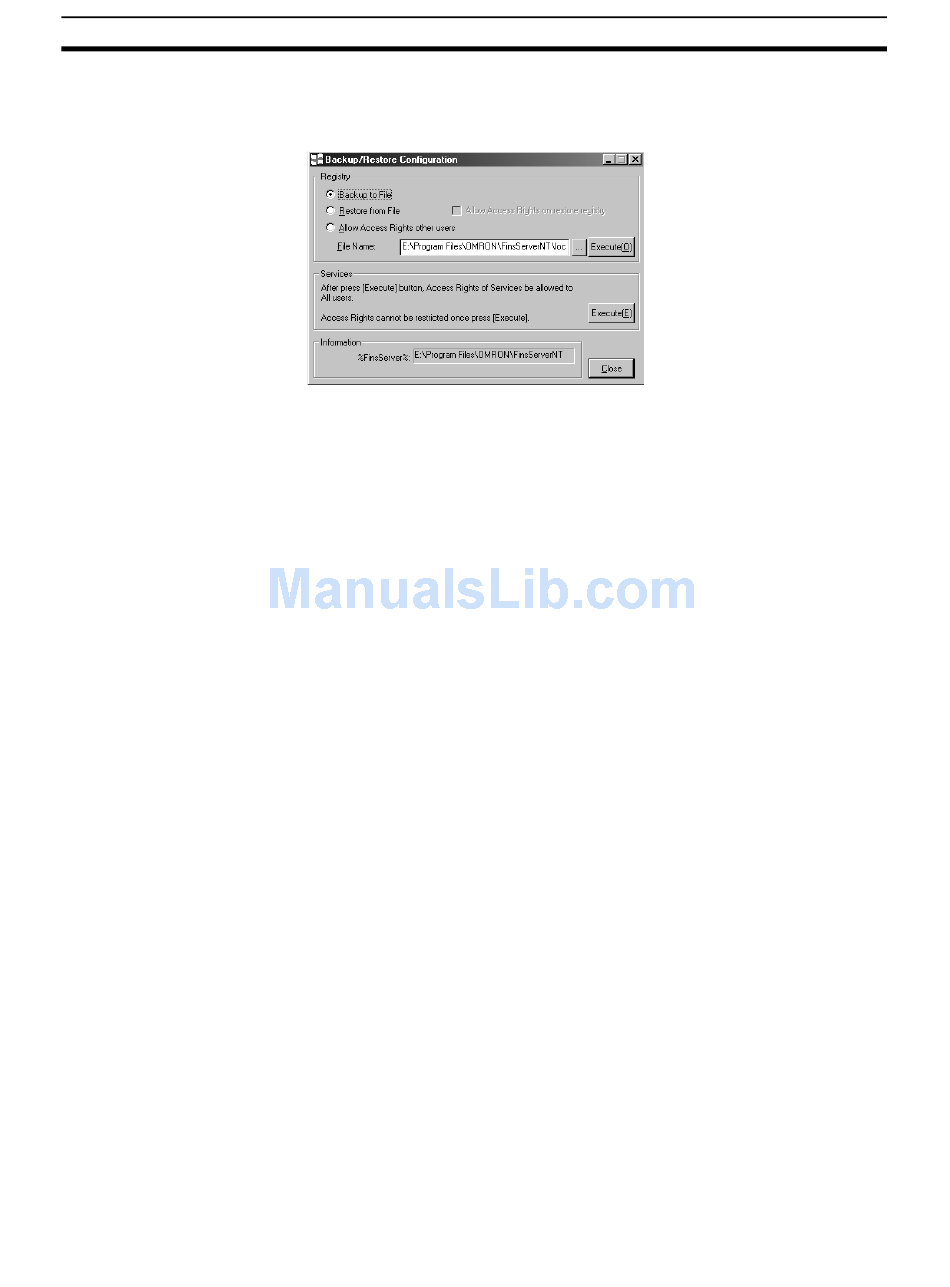

1. Execute the Backup/Restore FinsGateway Setting Data program on the
CD.
<CD-ROM drive>:\Fgwv3\FgwUtils\SettingSalvage.exe
2. Select the Backup to File option, and click OK Button.
Remove the previous version of FinsGateway by referring to that manual for
details.
The FinsGateway removal process does not delete all of the FinsGateway
files and registry data used by FinsGateway. As a result, the FinsGateway
reinstallation process sometimes fails. If this happens, execute the following
program from the distribution CD to remove all the files and registry data used
by FinsGateway.
<CD-ROM drive>:\Fgwv3\FgwUtils\FgwRemover3.exe
After removing FinsGateway, restart the computer. If the following steps are
performed without restarting the computer, the installation will not be com-
pleted properly.
If Internet Explorer is not already installed, or if the version is old, the Fins-
Gateway installation will display a warning to update it. Update Internet
Explorer.
Internet Explorer is not included with FinsGateway. Refer to the Microsoft
website for details, and install the newest version.
If using Windows NT 4, use the following procedure to update ComCtl32.dll
for systems where the display or other operations do not function properly.
For Windows 2000 and Windows XP no update is necessary for this file.
Microsoft provides an update program called 401comupd.exe.
If the HTML Help runtime component is not already installed, or if the version
is old, the FinsGateway installation will display a warning to update it. Update
the HTML Help runtime component using the following procedure.
If a warning is not displayed, then there is no need to update. The FinsGate-
way Installer will display the appropriate instructions.
1. Execute the following program from the FinsGateway CD:
<CD-ROM drive>:\Fgwv3\Update\hhupd.exe
2. Update the HTML Help runtime component according to the instructions
displayed on the screen.
Section 2-1
