Example Function Blocks for Data Exchange
Step 2: Registering Function Blocks for Data Exchange
1. Exchanging Function
Block Data
64
Make the following settings to monitor the MV_C output from the Basic PID
block, which is the heart of the control system. Send All Blocks (Block Model
461) and Receive All Blocks (Block Model 462) must be registered in order to
monitor the MV_C output from the Basic PID block.
1-1 Registering "Send All Blocks" and "Receive All Blocks"

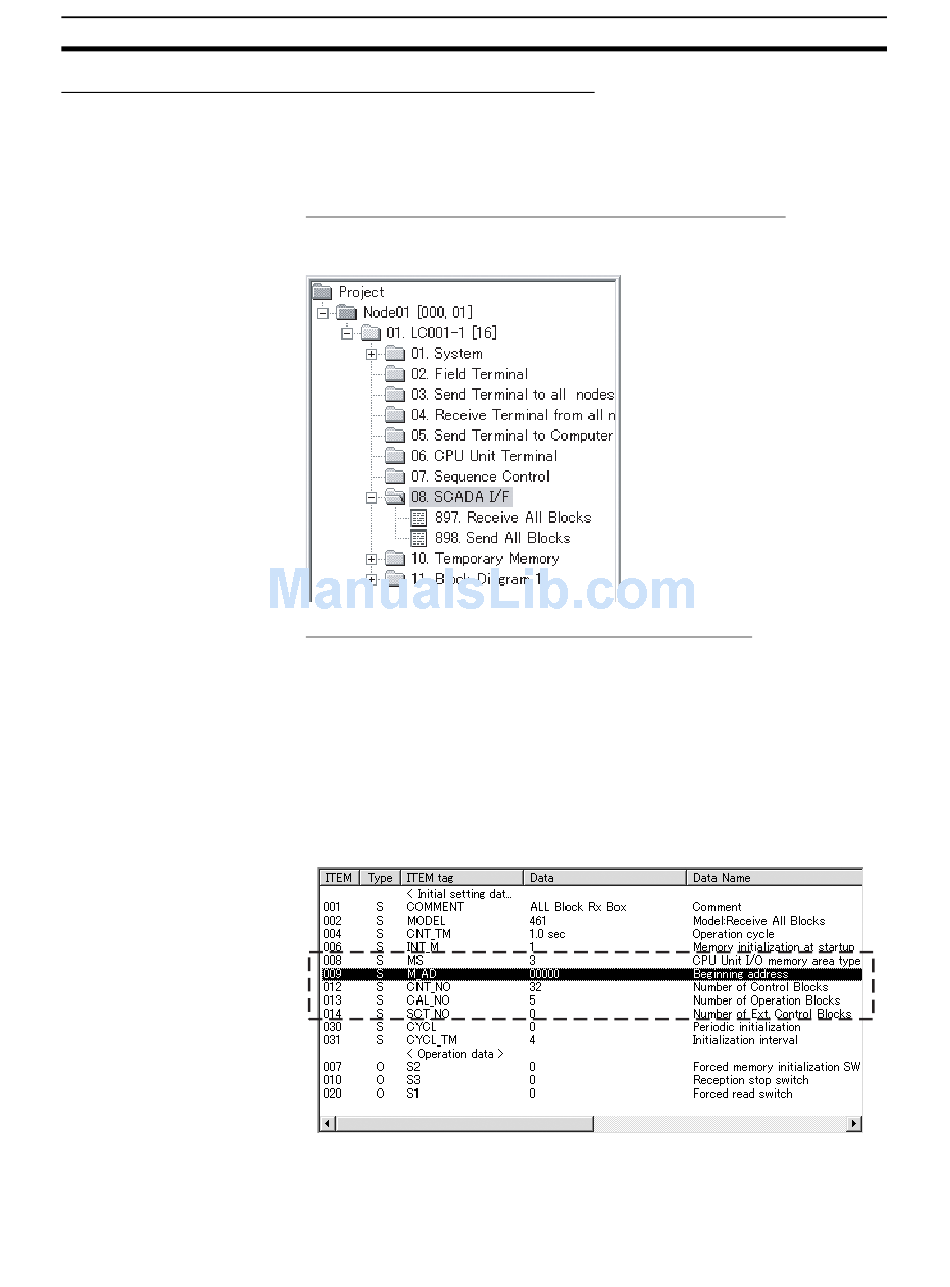

Register Send All Blocks (Block Model 461) and Receive All Blocks (Block
Model 462) in the project, as shown in the following diagram.
1-2 Settings for Send All Blocks and Receive All Blocks
The following ITEMs must be set in the Send All Blocks (Block Model 461)
and Receive All Blocks (Block Model 462) function blocks. These settings
specify the CPU Unit's allocated data area as well as the number of function
blocks that will be sent and received.
• CPU Unit data area
• Leading address of the specified data area
• Number of Control blocks
• Number of Operation blocks
• Number of External Controller blocks
