Creating Graphic Screens

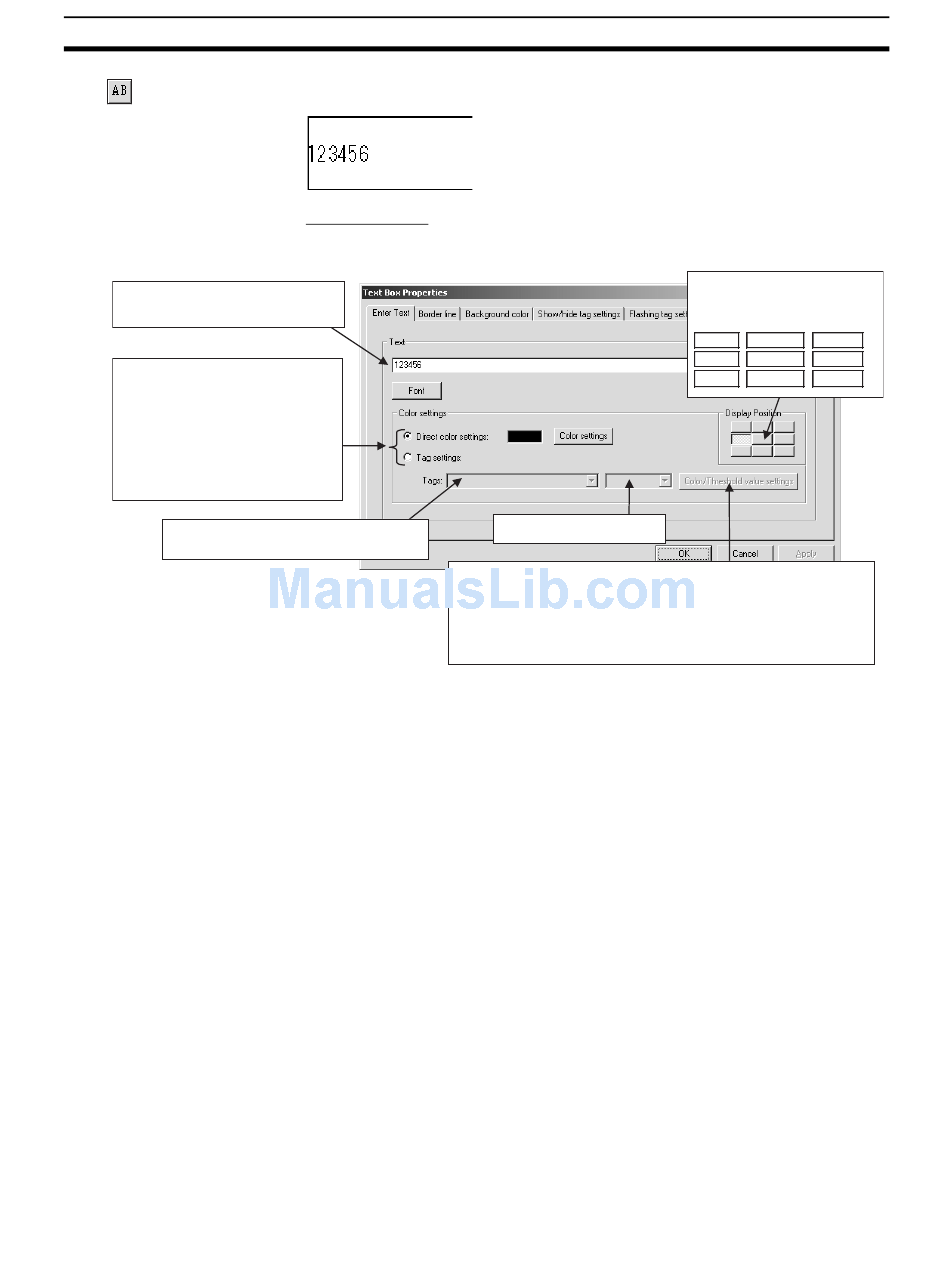

Text ( )
Input the text string to be displayed
(up to 256 characters).
Select the method for displaying the
text string.
Direct color settings:
The text color is fixed.
The color is directly specified in
the Color settings.
Tag settings:
The text color is changed
according to the tag value.
If Tag settings is selected, select the tag
name for controlling the text color.
Used to display text string that have been input.
Setting Method
Enter Text Tab
Set the condition for displaying the text color.
The screen displayed will depend on the tag type (contact ITEM or
analog ITEM).
The settings for the threshold values are the same as for the
Border Line Tab. Refer to the description for the Border Line Tab
above.
Border Line Tab
Refer to the description above of the setting method for the Borderline Tab.
Background Color Tab
Refer to the description above of the setting method for the Background Color
Tab.
For details on the Show/Hide Tag Settings Tab and the Flashing Tag Settings
Tab, refer to Common Settings for Graphic Objects in this section.
Select the tag ITEM.
Section 5-4
Click a button to select the
display position of the text
string in the text frame.
Top left Top center Top right
Middle left Middle center Middle right
Bottom left Bottom center Bottom right
