Starting and Stopping the CX-Process Monitor Plus

4-4

Starting and Stopping the CX-Process Monitor Plus

4-4-1

Starting the CX-Process Monitor Plus

1,2,3...
Note
78
This section explains how to start and stop the CX-Process Monitor Plus.
1. Select Start – Programs – Omron – CX-Process Monitor Plus – CX-
Process Monitor Plus.

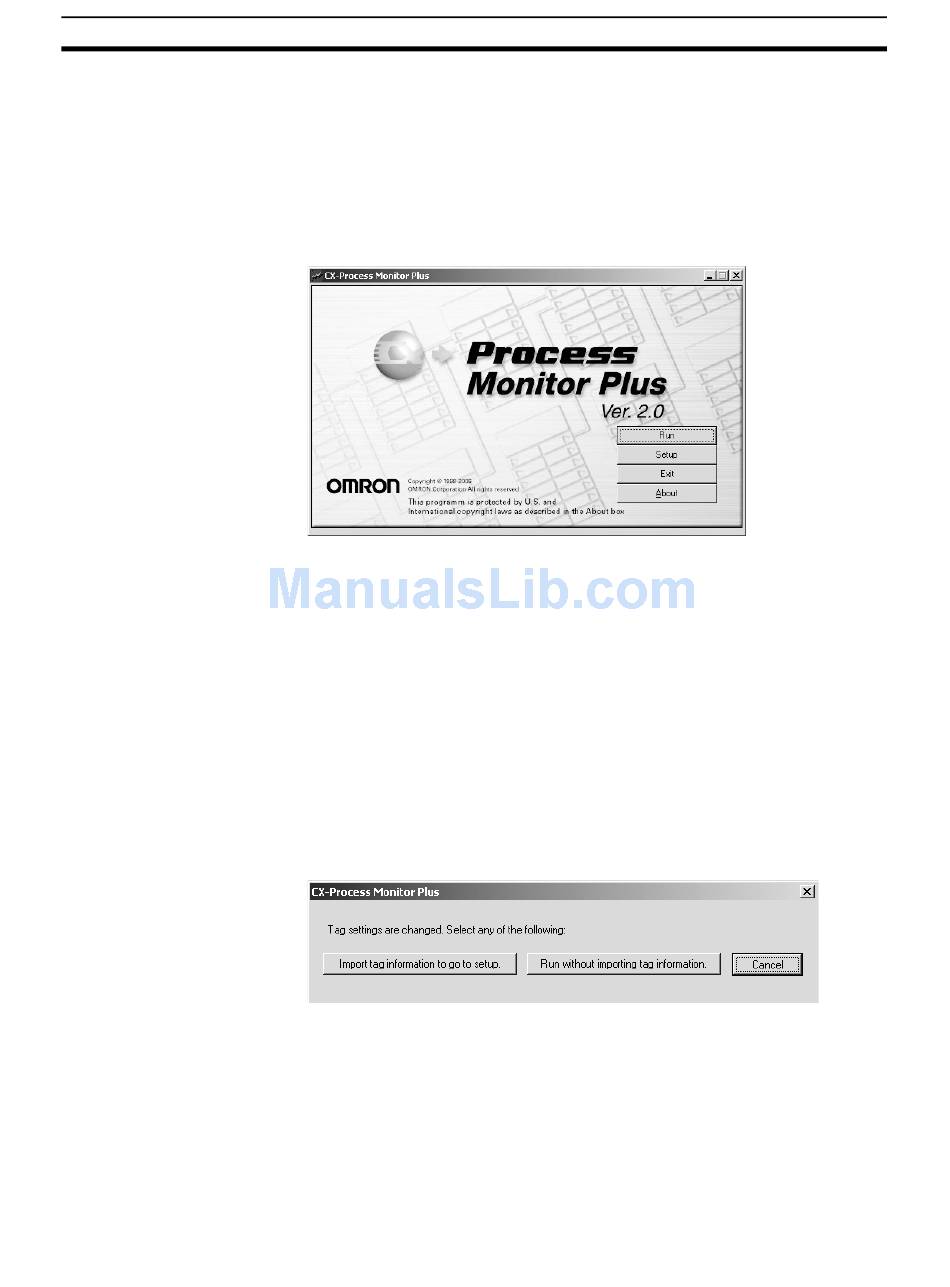

The CX-Process Monitor Plus's Main Window will be displayed.
Note When you have finished using CX-Process Monitor Plus, click the
Exit Button in the Main Window. The Main Window and CX-Pro-
cess Monitor Plus will both close.
2. Click the Run Button.
The monitoring process will be started, and the Overview Screen will be
displayed. (Refer to 4-5 Overview Screen.)
When the configuration has been completed, monitoring can be started
from the Overview Screen. Refer to SECTION 5 Configuration Screens for
configuration.
1. If auto-starting has been specified (i.e., if the Auto-start enable option is
selected in the Auto-start settings), the screen that has been set will be dis-
played directly. (Refer 5-7 Checking Configurations.)
2. When new tag or network information settings are made, the following di-
alog box will be displayed.
Import Tag Information to Go to Setup Button:
Regenerates the monitor tag file from the CX-Process Monitor Plus tag file.
When this button is clicked, a dialog box will be displayed to input the pass-
word. For details on passwords, refer to 5-2-2 Setting Passwords.
Run without Importing Tag Information Button:
Starts monitoring according to the tag information from the previous monitor-
ing.
Section 4-4
