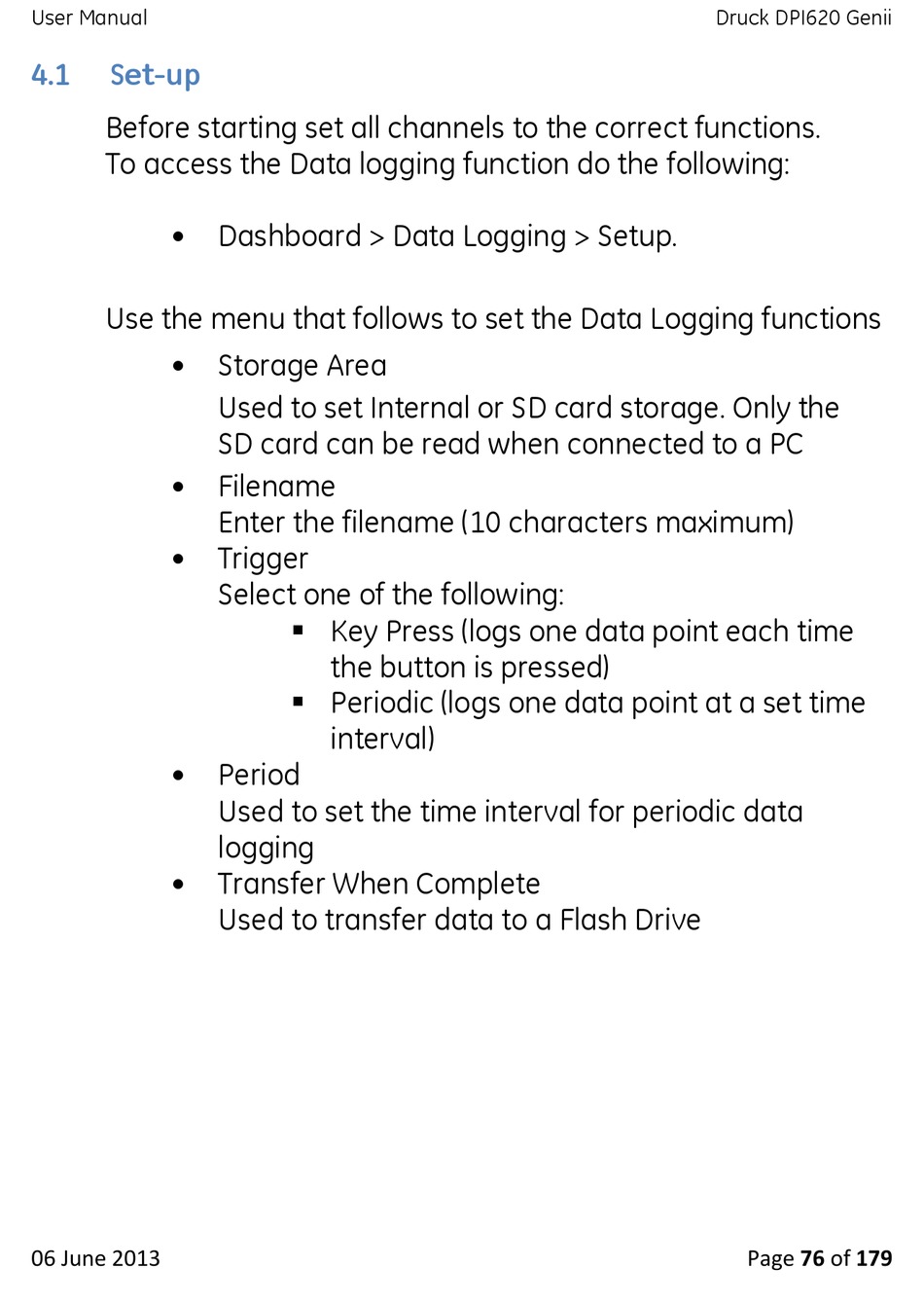

4.1

Set-up

Before starting set all channels to the correct functions.
To access the Data logging function do the following:
• Dashboard > Data Logging > Setup.
Use the menu that follows to set the Data Logging functions
• Storage Area
• Filename
• Trigger
• Period
• Transfer When Complete
06 June 2013
Used to set Internal or SD card storage. Only the
SD card can be read when connected to a PC
Enter the filename (10 characters maximum)
Select one of the following:
 Key Press (logs one data point each time
the button is pressed)
 Periodic (logs one data point at a set time
interval)
Used to set the time interval for periodic data
logging
Used to transfer data to a Flash Drive
