GE Healthcare
Bedside flexibility and adaptability
®
The Dash
monitoring family is a portable monitoring
system that is flexible and easy to use. Dash allows the
acuity of any bed to be modified to meet changing
patient needs.
Gold standard algorithms and technology
Dash monitors revolutionize patient care and assessment
by combining the most complete selection of gold standard
patient monitoring parameters with leading-edge
cardiac technology.

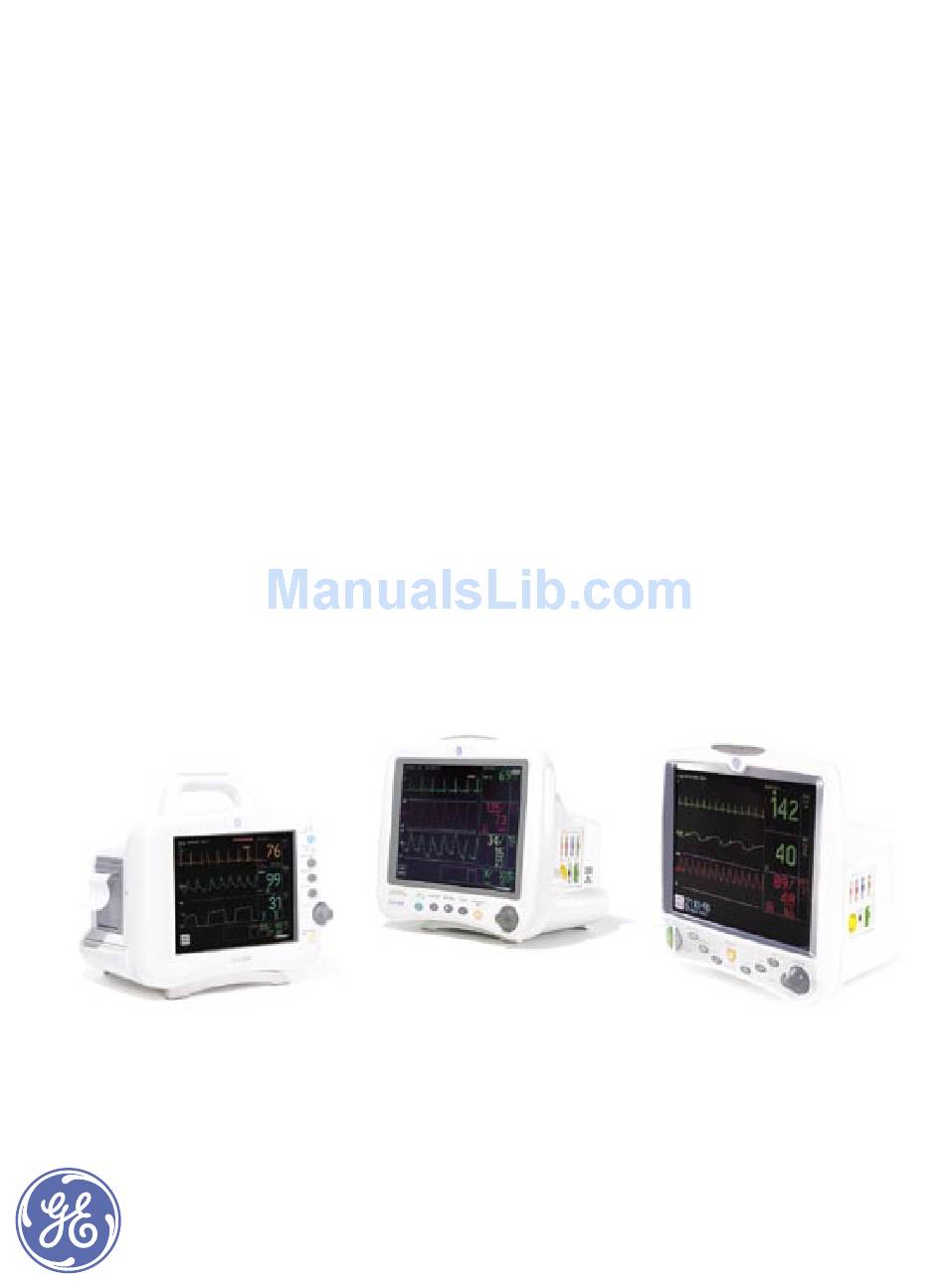

Dash 3000, 4000 & 5000
Flexible acuity monitoring
Enterprise networking
Hard-wired and wireless network connectivity – including
access to CIS, CVIS, PACS, RIS, HIS and more than 350 beds
without central station support – contributes to the Dash
monitors' unprecedented ability to adapt to changing
patient acuity demands.
Advertisement
Table of Contents
Related Manuals for GE Dash 3000
Summary of Contents for GE Dash 3000
- Page 1 Gold standard algorithms and technology Dash monitors revolutionize patient care and assessment by combining the most complete selection of gold standard patient monitoring parameters with leading-edge cardiac technology. Dash 3000, 4000 & 5000 Flexible acuity monitoring...
-
Page 2: Input Specifications
Product specifications Display Size Dash 3000 – 8.4 in., Dash 4000 – 10.4 in., Dash 5000 – 12.1 in. Type Active-matrix color LCD Resolution Dash 3000 and 4000: 640 by 480 dpi, Dash 5000: 800 by 600 dpi Number of traces... - Page 3 Standard leads available I, II, III, V, aVR, aVL and aVF 3 leadwire I, II, or III 5 leadwire I, II, III, V, AVR, AVL, and AVF 10 leadwire I, II, III, AVR, AVL, AVF, VI, V2, V3, V4, V5 and V6 Leads analyzed simultaneously I, II, III and V (multi-lead mode) Lead fail...
- Page 4 Arterial oxygen saturation (SpO ) and peripheral pulse rate (PPR) range Nellcor 1-100%; Masimo 30-100%; GE Ohmeda 30-100% PPR range Nellcor 20-300 BPM; Masimo 25-240 BPM; GE Ohmeda 30-250 Accuracy Actual accuracy depends on probe. Please reference manufacturer’s specifications. Nellcor ±...
- Page 5 DINAMAP non-invasive blood pressure Technology DINAMAP ® classic and SuperSTAT ™ (SuperSTAT only available with Masimo and Nellcor SpO Measurement technique Oscillometric Displayed parameters Systolic, diastolic and mean pressures, time of last measurement Measurement modes Adult ICU and OR modes; manual, auto and stat, neonatal mode;...
-
Page 6: Information Displayed
Technology Supports Novametrix CapnoStat (mainstream) and CapnoFlex LF (low-flow sidestream) CO technologies Principle of operation Non-dispersive infrared (NDIR) single beam optics, dual wavelength and no moving parts Warm-up time 2 minutes warm-up time to meet accuracy specifications; waveform immediate upon power up, calculated end tidal after two breaths Cable length (mainstream) 8 foot (2.4 m) Sample line length (low-flow sidestream) 7 foot (2.1 m) -
Page 7: Analog Output
Paper recorder Method Thermal dot array Horizontal resolution 480 dots/in. @25 mm/sec. Vertical resolution 200 dots/in. Number of waveform channels four Paper width 50 mm (1.97 in.) Paper length 30 m (100 ft.) Paper speed 0.1, 0.5, 1, 5, 10, 12.5, 25 and 50 mm/sec. (± 2%) Analog output Gain 1 V/mV ±... -
Page 8: Warranty
C22.2 No. 601.1 GE Healthcare ©2006 General Electric Company – All rights reserved. GE and GE Monogram are trademarks of General Electric Company. P.O. Box 900, FIN-00031 GE, Finland Masimo and SET are registered trademarks of Masimo Corporation. Tel. +358 10 394 11 Fax +358 9 146 3310 •...
