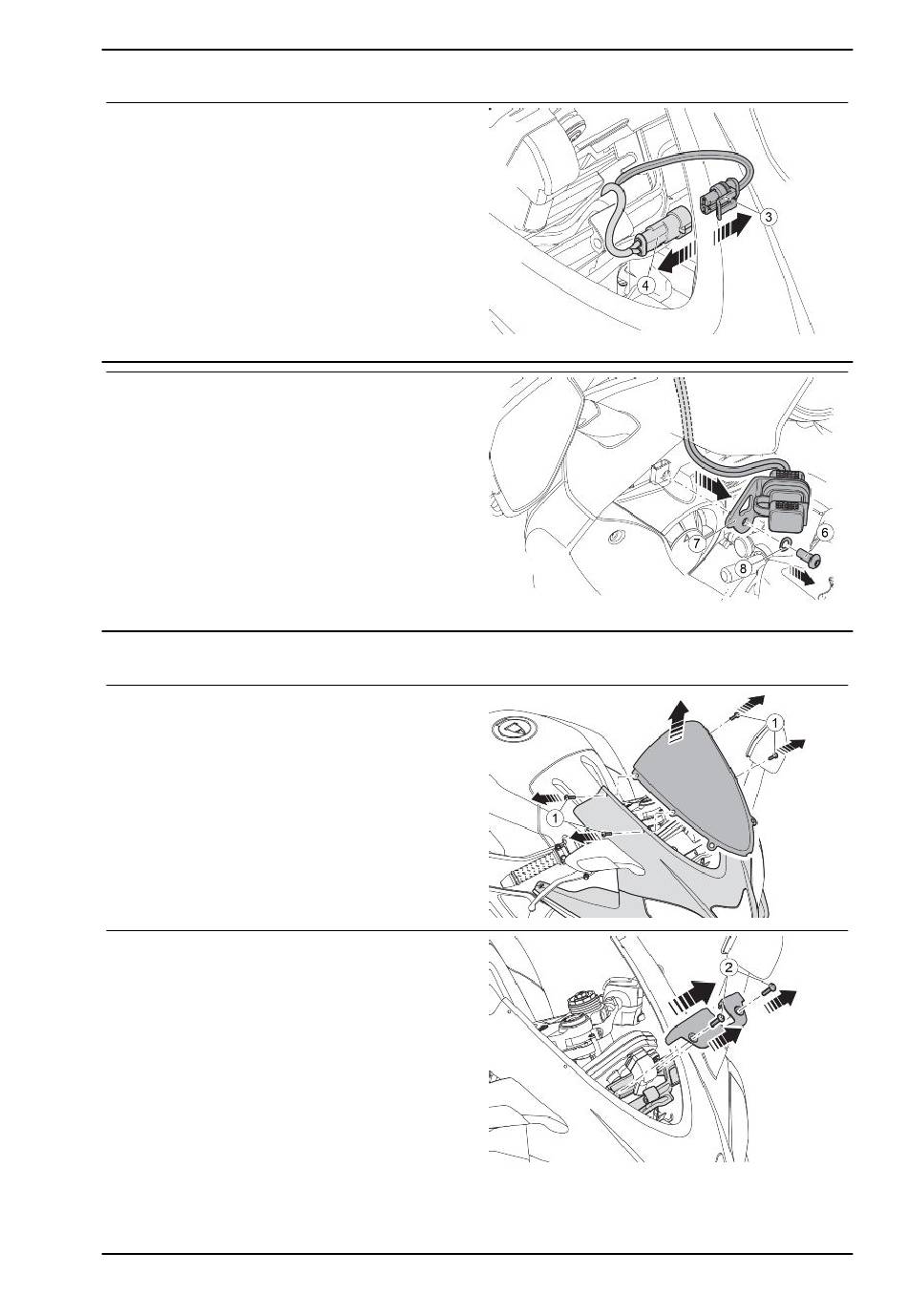

Disconnect the USB wiring connector
(3) from the connector of the wiring
harness on the vehicle (4)
•
Remove the fixing screw (6) of the sup-
port bracket (7) paying attention to re-
cover the elastic washer (8)
•
Remove the USB port
Installazione
•
Unscrew and remove the screws (1)
Remove the top fairing glass from the
seats of the motorcycle
•
Unscrew and remove the two screws
(2); Remove the instrumentation lid
