APRILIA RSV4 RR Service Station Manual page 111

RSV4 RR/RF

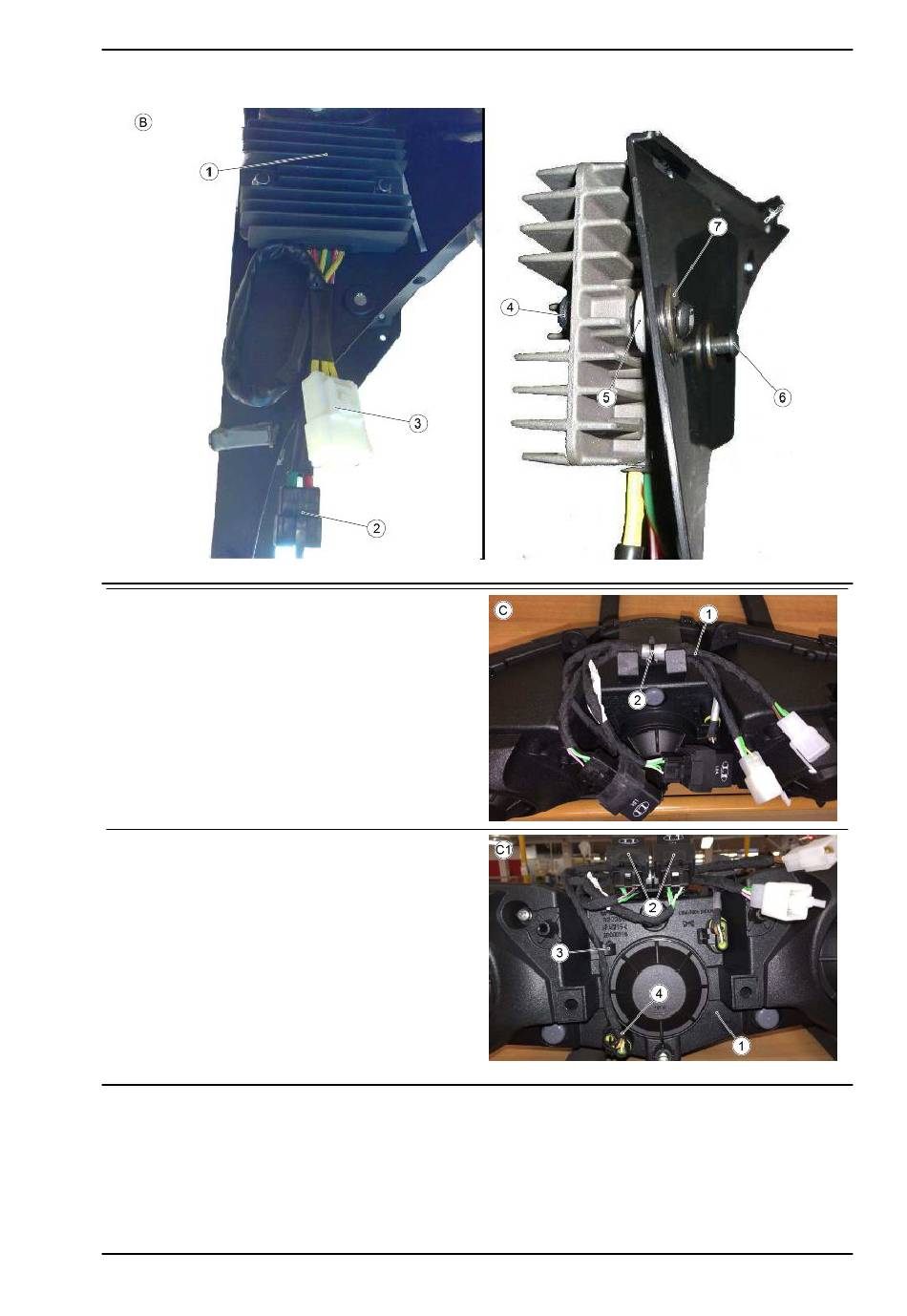

WIRING TABLE C - FRONT HEADLIGHT PRE-
ASSEMBLY
The front headlight wiring must be pre-assembled
on the headlight by means of a clamp
1. Headlamp wiring harness
2. Small black clamp
WIRING TABLE C1 - FRONT HEADLIGHT PRE-
ASSEMBLY
1. Headlamp
2. Relay
3. Cable grommet
4. Small black clamp
TABLE D - HANDLEBAR CONTROLS
Check that the clutch connector is well hooked
1. Left light switch
2. Quick Shift control on handlebar
3. Clutch connector
Electrical system
ELE SYS - 111
