When the computer switch is set to MIDI
MIDI
OUT/THRU
MIDI IN A
MIDI IN B
(Rear)
* Be aware that when the computer switch located on the back of this unit is set to MIDI, data will
not be exchanged via the computer connector.
* If you wish to use the MIDI IN B located on the front panel, you must make the appropriate set-
tings for IN B Select (p.135).
* With the factory settings, MIDI OUT/THRU is set to function as MIDI OUT. If you wish to use it
as MIDI THRU, set the MIDI OUT/THRU select switch (p.136) to THRU.
* Exclusive data address settings are explained on p.128, 193.

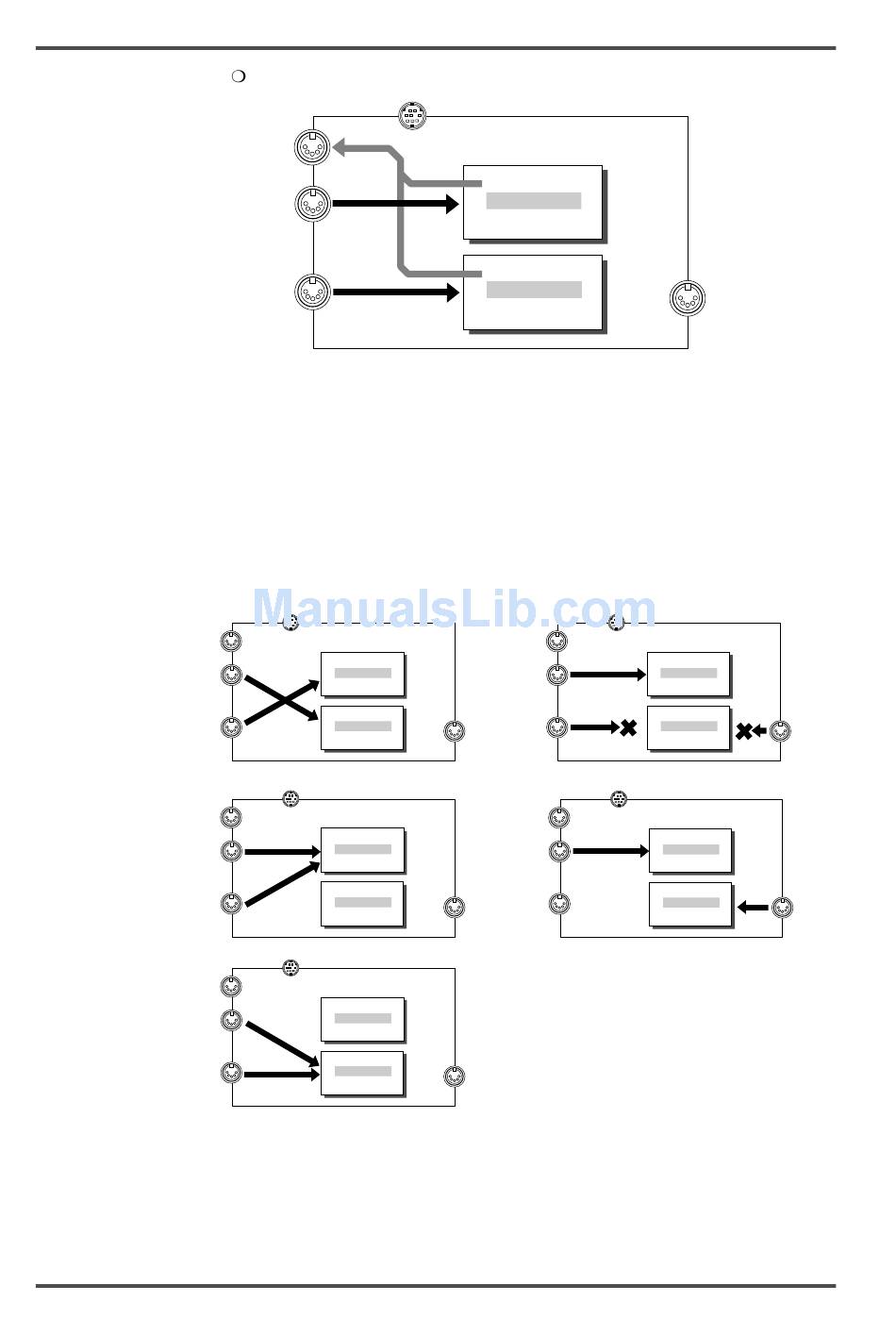

* With the factory settings, MIDI messages received at MIDI IN A are passed to Group A Parts,
and MIDI messages received at MIDI IN B are passed to Group B Parts. In most situations there
is no need to change this, but it is possible to change the MIDI signal flow as shown below
(p.137, 138).
COMPUTER
Part group A
Part A1 - A16
GM/GS
Sound generator
Part group B
Part B1 - B16
GM/GS
Sound generator
COMPUTER
Part group A
Part A1 - A16
GM/GS
Sound generator
Part group B
Part B1 - B16
GM/GS
Sound generator
COMPUTER
Part group A
Part A1 - A16
GM/GS
Sound generator
Part group B
Part B1 - B16
GM/GS
Sound generator
Chapter 6. Using the unit with a personal computer
COMPUTER
Part group A
Part A1 - A16
GM/GS
Sound generator
Part group B
Part B1 - B16
GM/GS
Sound generator
MIDI
OUT/THRU
MIDI IN A
MIDI IN B
MIDI IN B
(Front) (Rear)
MIDI
OUT/THRU
MIDI IN A
MIDI IN B MIDI IN B
(Front) (Rear)
MIDI IN B
(Front)
MIDI IN B
(Front)
COMPUTER
Part group A
Part A1 - A16
GM/GS
Sound generator
Part group B
Part B1 - B16
GM/GS
Sound generator
MIDI IN B
(Front)
COMPUTER
Part group A
Part A1 - A16
GM/GS
Sound generator
Part group B
Part B1 - B16
GM/GS
Sound generator
MIDI IN B
(Front)
